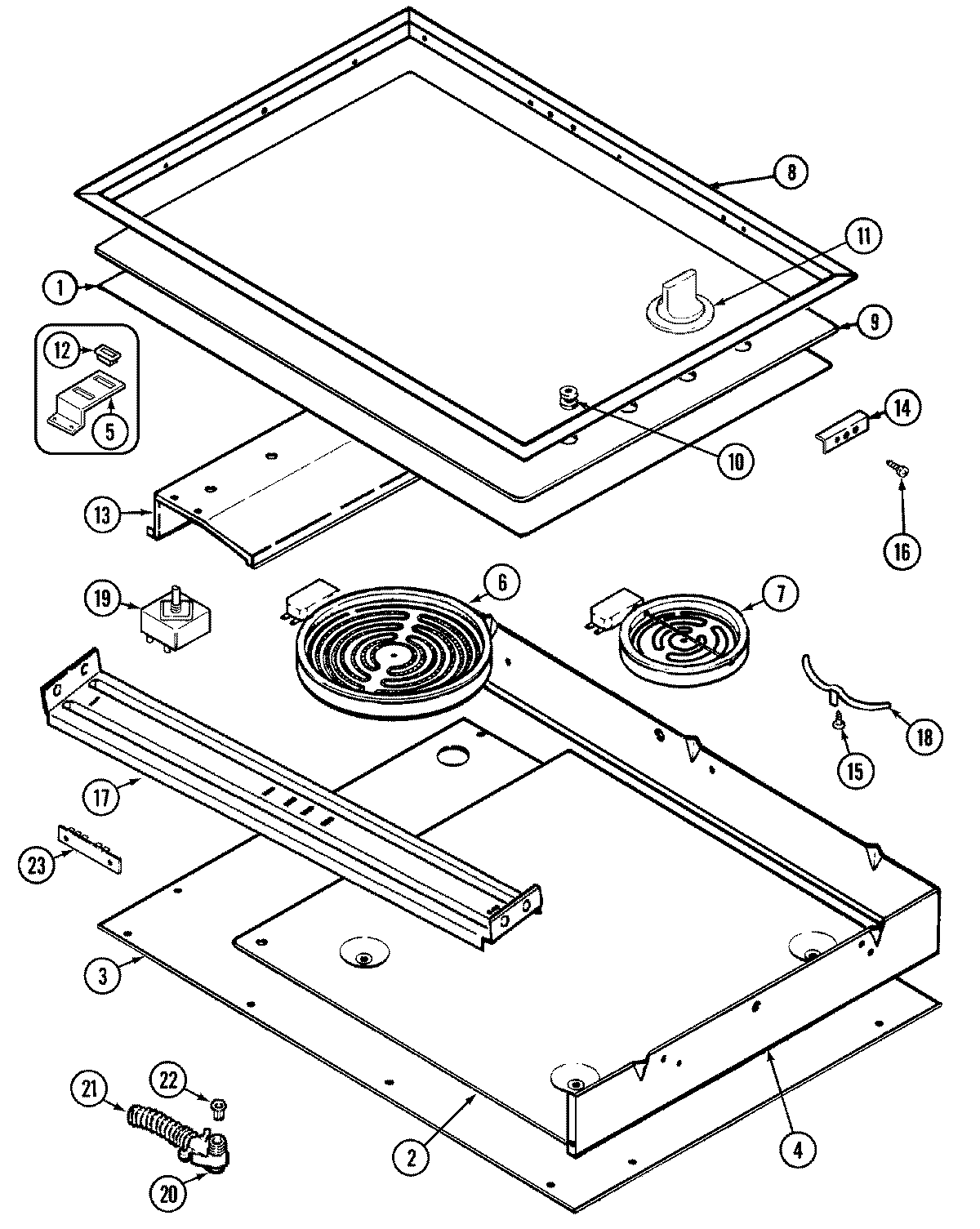

CX8670TV 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8112P102-60
NI	MAY 8308P002-60
NI	WA906B Whirlpool Cooktop Glass Scraper
1	MAY 74001490
2	MAY 3601F173-51
2	MAY 7101P059-60
3	MAY 74001491
4	MAY 74001430
5	MAY 3801F313-45
6	MAY 12500040
6	W10823697 Whirlpool Surface Element
6	MAY 74002652
6	W10823707 Whirlpool Range Radiant Surface Element 8"
7	MAY 12500041
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	MAY 74004494
8	MAY 74002255
9	MAY 7918P070-60
10	MAY 8008P033-60
11	MAY 7737P029-60
11	MAY 74002090
12	MAY 7407P098-60
13	MAY 7118P004-60
13	MAY 3605F175-45
13	MAY 7103P071-60
13	MAY 8010P085-60
14	MAY 74002256
14	MAY 74001497
15	SCREW
16	MAY 7101P058-60
17	WP98008545 Whirlpool Screw
17	MAY 74001513
18	MAY 8004P015-60
19	SCREW
19	MAY 7403P320-60
19	SEAL, GASKET INF. SW.
19	MAY 7403P322-60
20	MAY 7417P005-60
21	MAY 7434P010-60
21	MAY 3801F072-45
22	MAY 74002350
22	MAY 8008P017-60
23	MAY 74004956
23	MAY 7401P015-60
