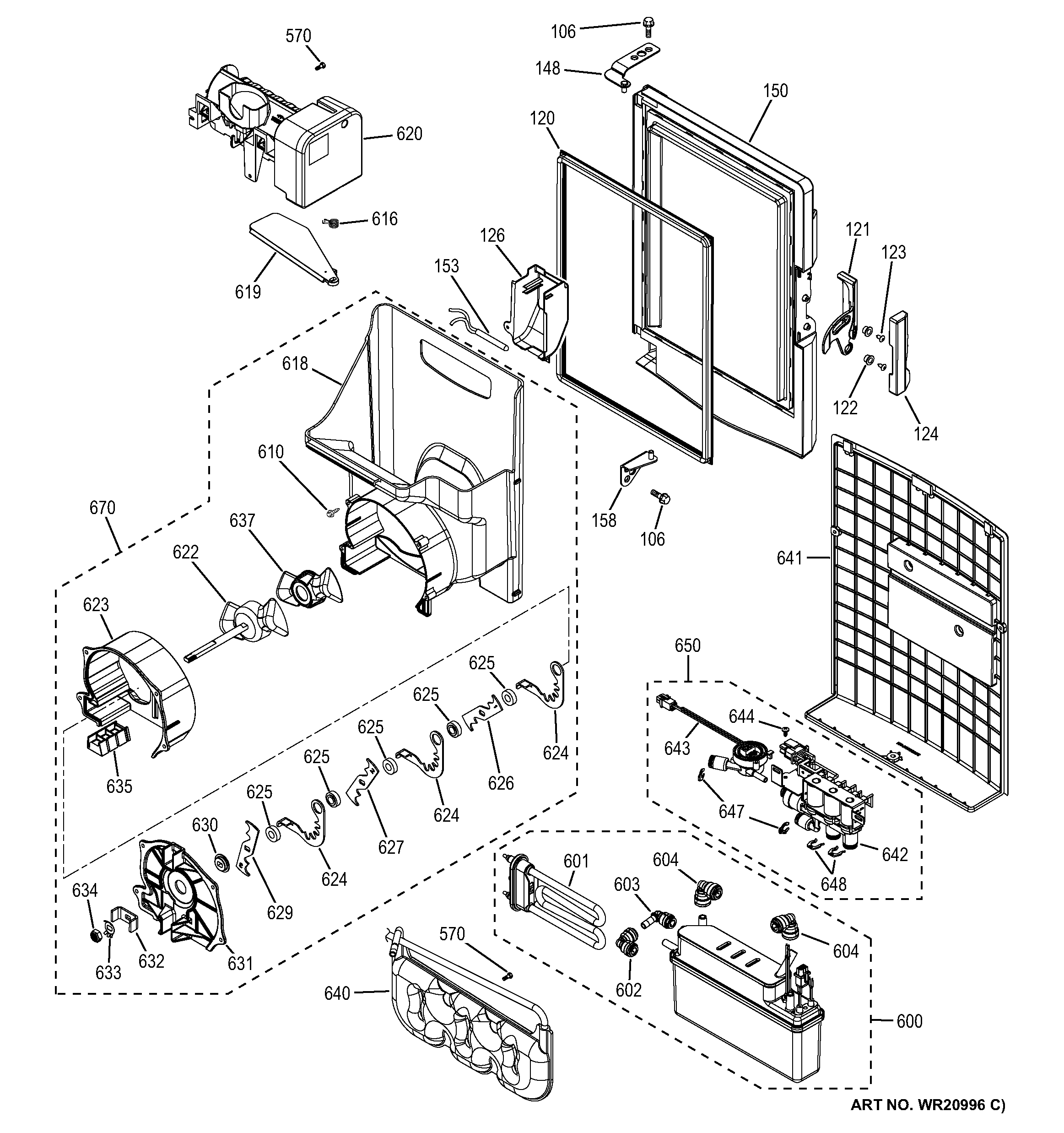

CYE23TSDASS ICE MAKER & DISPENSER

CYE23TSDASS ICE MAKER & DISPENSER

Written by

in

CYE23TSDASS ICE MAKER & DISPENSER

Products

PositionProduct
106WR01X11054 GE Refrigerator Screw 8-18 FLP 1/2"
120WR24X10288 GE Refrigerator Icebox Door Gasket
121LATCH ICEBOX DOOR
122WR01X11015 GE Refrigerator Latch Bushing
123WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
124WR02X23032 GE Refrigerator Cover
126ICE BOX THERMISTOR COVER
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
150WR78X26143 GE Refrigerator Icebox Door Assembly
153WR55X10025 GE Refrigerator Temperature Sensor
158WR13X10973 GE Refrigerator Hinge Bottom Door Icebox
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
600WR17X26291 GE Refrigerator Tank Hot Water Assembly
602WR02X13753 GE Connector 90 Degree 5/16 Height
603WR02X13754 GE Connector 5/16 Stem Height
604WR02X13755 GE Refrigerator Connector 90 3/8-5/16 HT
610BOSS SCR 10-14.5 1/2 ICE
616WR01X11033 GE Refrigerator Spring Feeler Arm
618WR49X10322 GE Refrigerator Ice Bucket and Motor Kit
619WR29X10110 GE Refrigerator IM Feeler Arm
620ICEMAKER
622AGITATOR ASM
627MOVING BLADE CRUSHER
629MOVING BLADE CRUSHER
630SPACER CRUSHER END
632COUPLING BUCKET
633WR01X11018 GE Refrigerator Washer Lock
634WR30X10174 GE Refrigerator Ice Bucket and Crusher
635HOLDER STATIONARY BLADE
637WR02X13681 GE Agitator Insert
640WR17X13248 GE Refrigerator Cold Water Tank Assembly
641GEN WR13X10989
642WR57X10102 GE Refrigerator Tri-Valve Water Assembly
643WR57X32245 GE Refrigerator Flow Meter
644SCR M4X1.59 MCH P 10MM S
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
648WR01X11040 GE Refrigerator Quick Clip Connect 5/16
