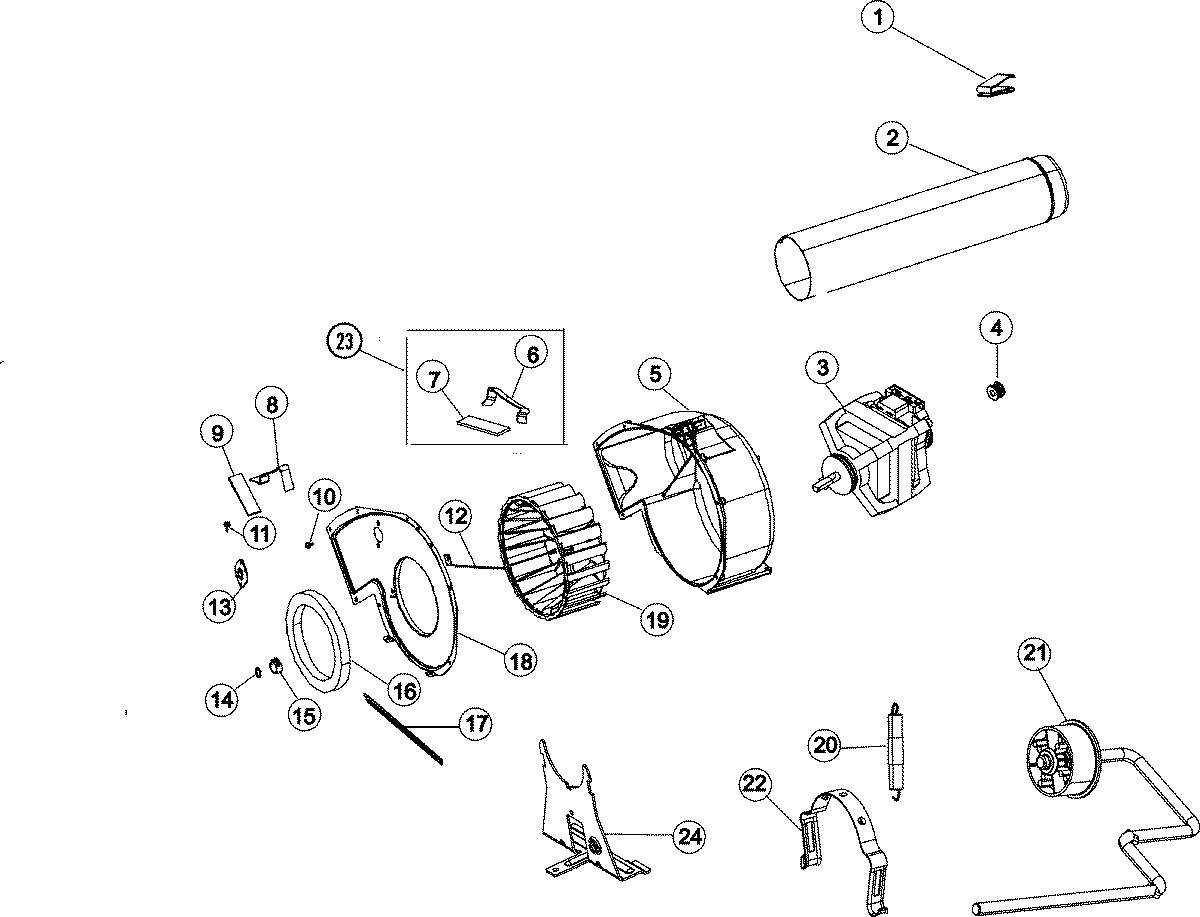

CYE3004AGW 05 – MOTOR & DRIVE

CYE3004AGW 05 – MOTOR & DRIVE

Written by

in

CYE3004AGW 05 – MOTOR & DRIVE

Products

PositionProduct
1MAY 31001572
2MAY 53-0134
3MAY 21001484
4MAY 31001729
5MAY 53-1801
6WP31001470 Whirlpool Glide Assembly
8WP31001469 Whirlpool Glide Assembly
9WP31001356 Whirlpool Glide Pad
10MAY 31001267
11MAY 25-7890
12MAY 53-1026
13THERMOSTAT
14MAY 25-7855
15MAY 25-7823
16MAY 31001541
17MAY 53-1625
18MAY 53-1934
19WHEEL
2031001465 Whirlpool Idler Spring
21MAY 31001710
22WP660658 Whirlpool Clamp
23LA-1006 Whirlpool Dryer Right Hand Glide Kit
24MAY 31001570
