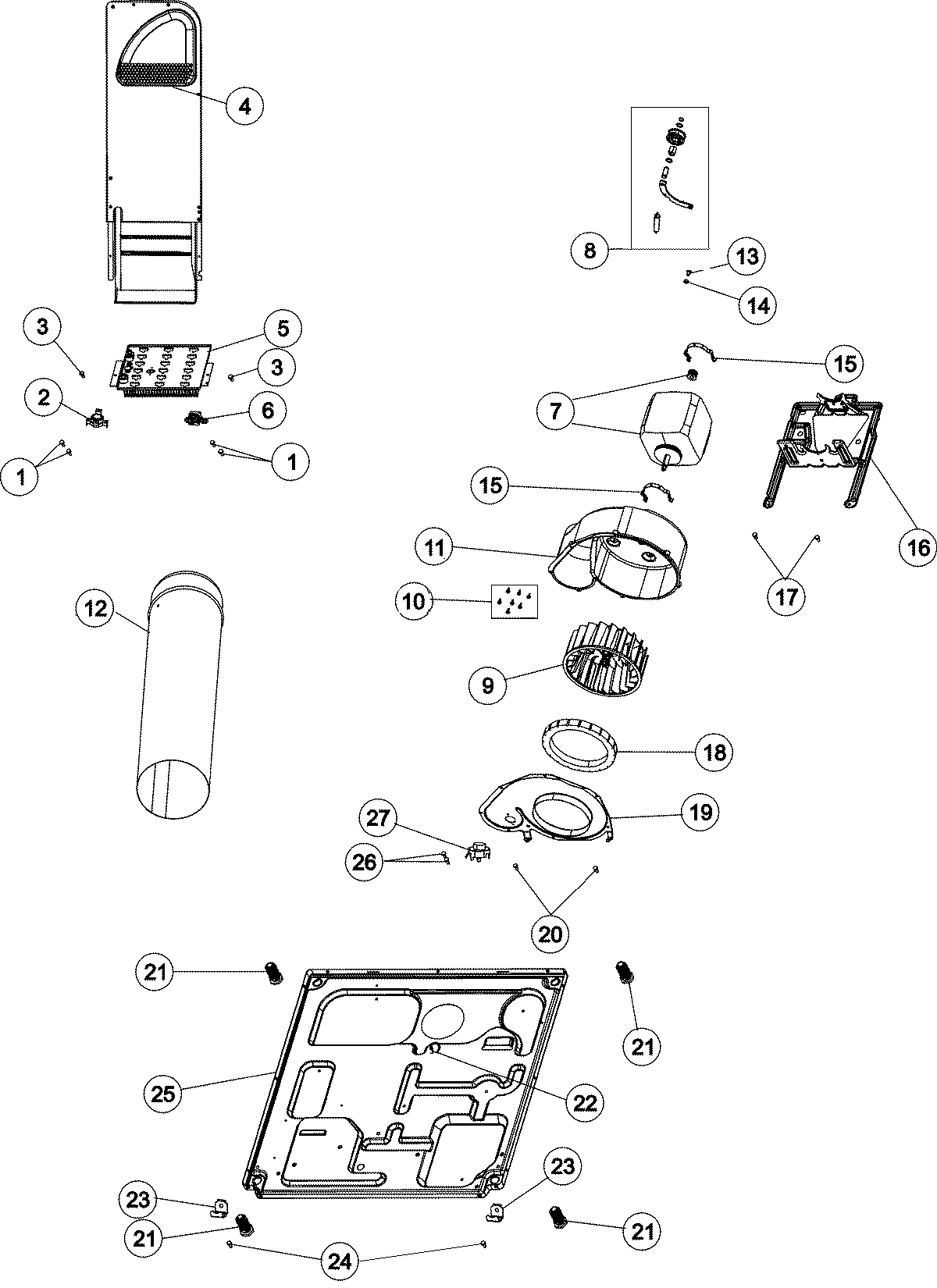

CYE3005AKW 01 – BASE, HEATER & MOTOR

CYE3005AKW 01 – BASE, HEATER & MOTOR

Written by

in

CYE3005AKW 01 – BASE, HEATER & MOTOR

Products

PositionProduct
1WP3177991 Whirlpool Screw
2WPW10116735 Whirlpool Dryer High Limit Thermostat
4MAY 503605
5WPY503978 Whirlpool Heating Element
6MAY 40113801
7MAY 37001253
8WP37001287 Whirlpool Dryer Idler Lever Shaft Pulley
9MAY 56000
10MAY 31260
11MAY 56020
12MAY 505518
13D500824 Speed Queen Screw
14WPW10139757 Whirlpool Nut
15WP660658 Whirlpool Clamp
16MAY 503613
18MAY 37001119
19MAY 500078
20WP3390631 Whirlpool Screw
21MAY Y500101
22MAY 504034
23MAY 37001145
24WP27001200 Whirlpool Screw
25MAY 37001156
26MAY 501086
27MAY Y308037
