CZS22MP2NDS1 ICE MAKER & DISPENSER

CZS22MP2NDS1 ICE MAKER & DISPENSER

Written by

in

CZS22MP2NDS1 ICE MAKER & DISPENSER

Products

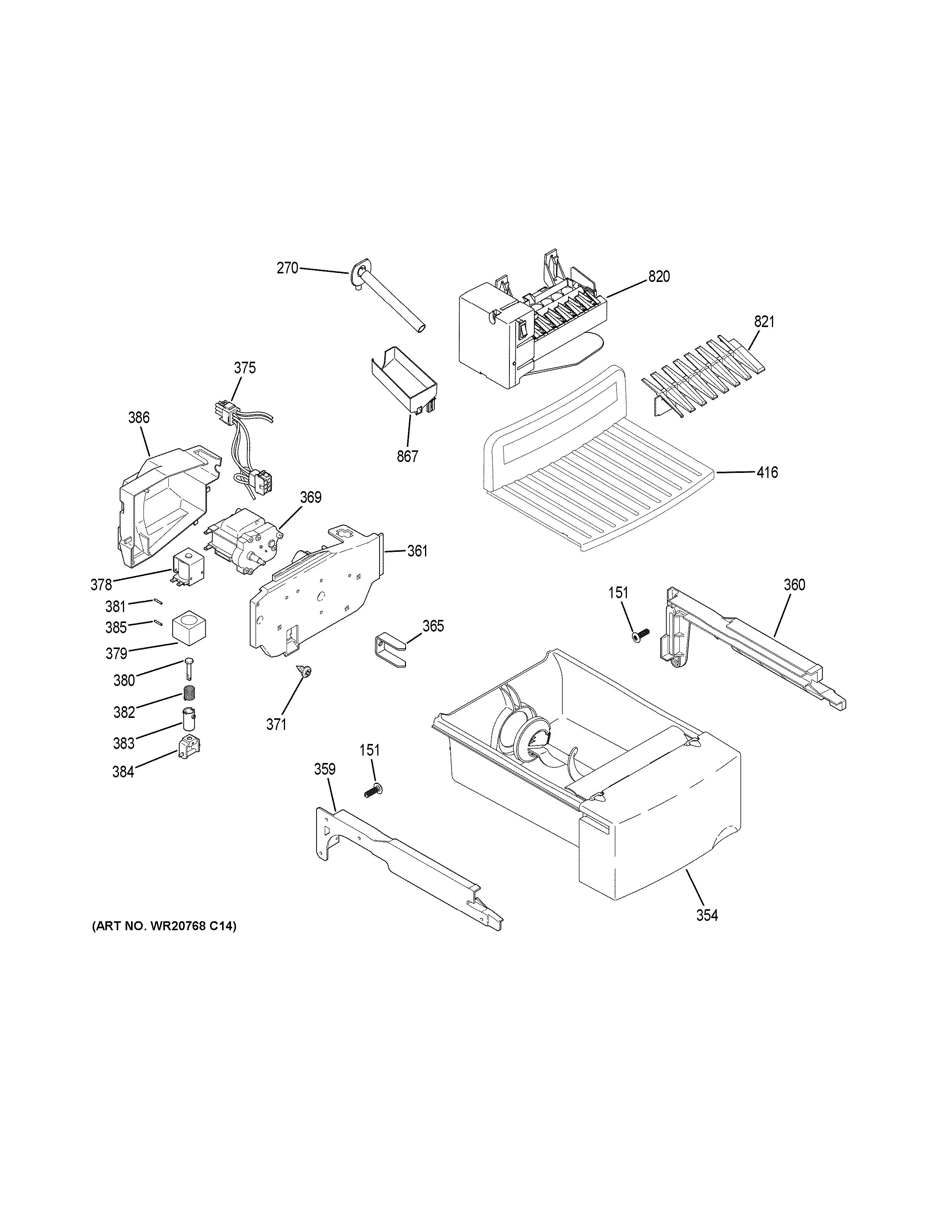

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
270WR17X11168 GROMMET AND TUBE ASM
354ICE BUCKET & AUGER
359WR72X10414 GE Refrigerator Left Hand Dispenser Glide Bucket
360WR72X10415 GE Refrigerator Glide Bucket Right Hand Dispenser
361WR17X12323 GE Refrigerator Back Motor Cover
365DRIVE AUGER DISP
369WR49X32252 GE Refrigerator Auger Motor Service Kit
371WR01X10619 GE Refrigerator Screw
375WR23X26670 GE Refrigerator Harness Motor Dispenser
378WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
386WR02X12491 GE Refrigerator Auger Motor Cover
416WR71X24436 GE Refrigerator Chiller Shelf
820WR30X10093 GE Refrigerator Ice Maker
821WR29X10083 GE Refrigerator Ice Maker Stripper
867WR29X10109 GE Refrigerator Water Fill Cup
