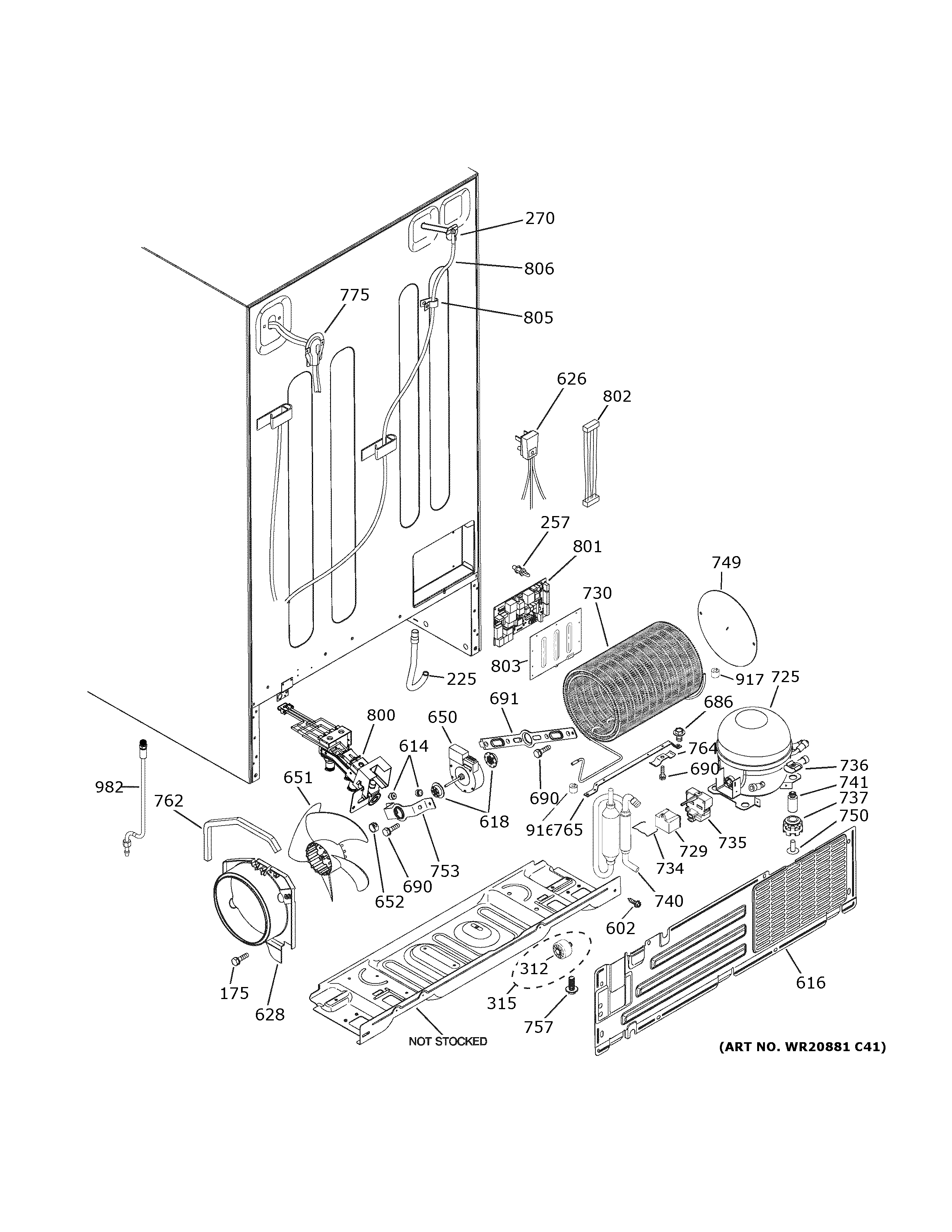

CZS22MP2NES1 MACHINE COMPARTMENT

CZS22MP2NES1 MACHINE COMPARTMENT

Written by

in

CZS22MP2NES1 MACHINE COMPARTMENT

Products

PositionProduct
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
315WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
614BUMPER
616WR82X22767 GE Refrigerator Access Cover Assembly
618WR02X11331 GE Refrigerator Grommet
626WR23X29305 GE Refrigerator Lower CAB Harness
628WR17X12668 GE Refrigerator Condenser Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10224 GE Refrigerator Compressor Kit EGYS60
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
734CLIP RETAINER MEI
735WR08X21100 GE Refrigerator TSD Combo
736CLIP
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X30921 GE Condenser Foam Strip
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X13124 GE Refrigerator Water Line Cover
800ISOLATION VALVE AND JUMPER
801WR55X40445 GE Refrigerator Main Board SXS Stainless Steel
802WR23X23103 GE Refrigerator Harness Board INDIV
803WR02X12025 GE Main Board Enclosure
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
916WR02X13569 GE Refrigerator Sound Damper
917WR02X13573 GE Refrigerator Sound Damper
982WR02X13774 GE Refrigerator Tube Lead
