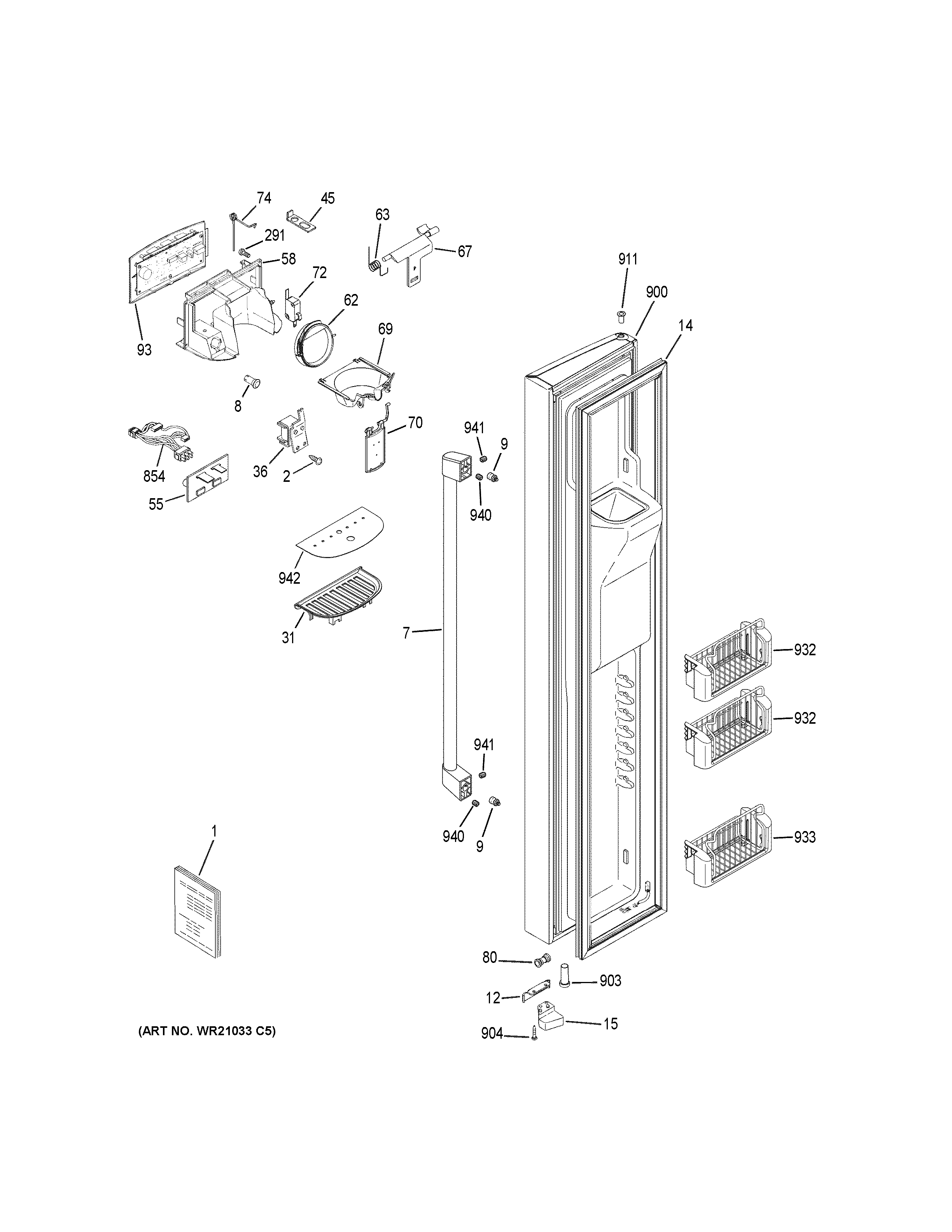

CZS22MSKKHSS FREEZER DOOR

CZS22MSKKHSS FREEZER DOOR

Written by

in

CZS22MSKKHSS FREEZER DOOR

Products

PositionProduct
1PM QUICK USE & CARE CAFE
1PM MINI MANUAL AND WIRING
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7WR12X26397 GE Freezer Brushed Stainless Steel Shelf
8WR02X13502 GE Rivet Clinch
9WR01X11007 GE Refrigerator Fastener Door Handle
12WR01X28628 GE Refrigerator Black Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
31GRILL RECESS SS
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X34385 GE Refrigerator Dispenser Housing Shield Assembly
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X21781 GE Refrigerator Dispenser Ice Funnel
70WR17X27912 GE Refrigerator Dispenser Paddle
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X36045 GE Refrigerator Interface Dispenser Assembly
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854WR23X10665 GE Dispenser Recess Harness
900WR78X26466 GE Refrigerator Stainless Steel Door Foam Assembly
903WR01X28633 GE Assembly 238C1160P007
904WR01X10611 GE Screw
911WR01X10975 GE Refrigerator Door Thimble
932WR71X25909 GE Refrigerator TILTOUT Assembly
933WR71X25908 GE Refrigerator TILTOUT Bottom Assembly
940WR01X27135 GE Refrigerator Screw Set
941WR01X20424 GE Refrigerator Screw
942COVER GRILL RECESS
