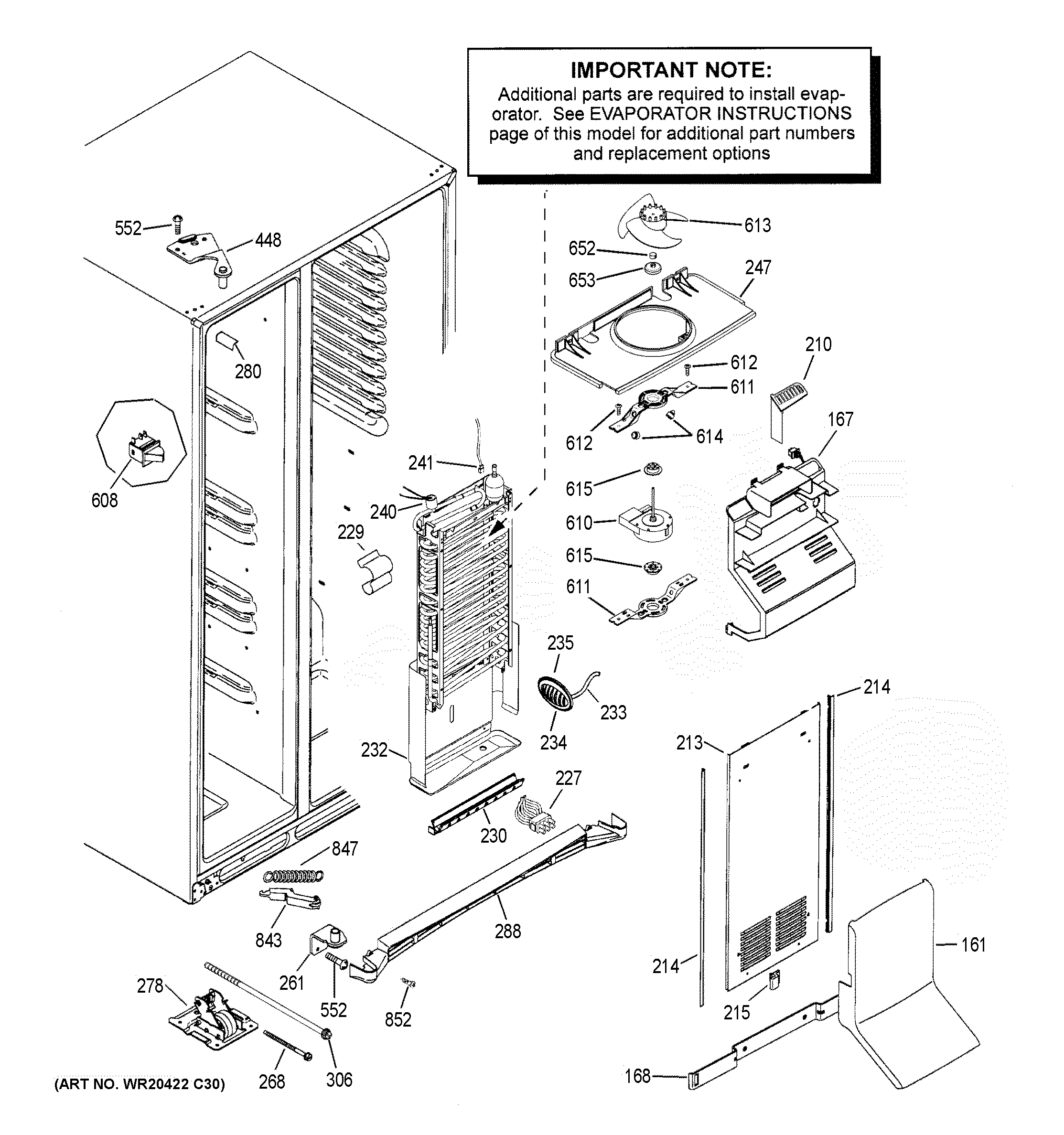

CZS25TSEBFSS FREEZER SECTION

CZS25TSEBFSS FREEZER SECTION

Written by

in

CZS25TSEBFSS FREEZER SECTION

Products

PositionProduct
161WR17X10899 GE Refrigerator Lower Air Tower
167GEN WR17X13041
168WR02X10674 GE Refrigerator Lower Tower Bracket
210GEN WR74X10131
213GEN WR17X13042
214WR14X10193 GE Refrigerator Gasket Evaporator Cover
215WR01X10211 GE Refrigerator Upper Tower Bracket
227WR23X10706 GE Refrigerator AC Intermedia Harness
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X12642 GE Refrigerator Orifice Fan Assembly
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X13791 GE Refrigerator Corner Cap
288WR74X10270 GE Refrigerator Base Grille
306WR02X12271 GE Refrigerator Mobility Screw
448WR13X10366 GE Refrigerator Top Hinge and Pin Assembly
552GEN WR01X10945
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843LEVER ASM FZ
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
