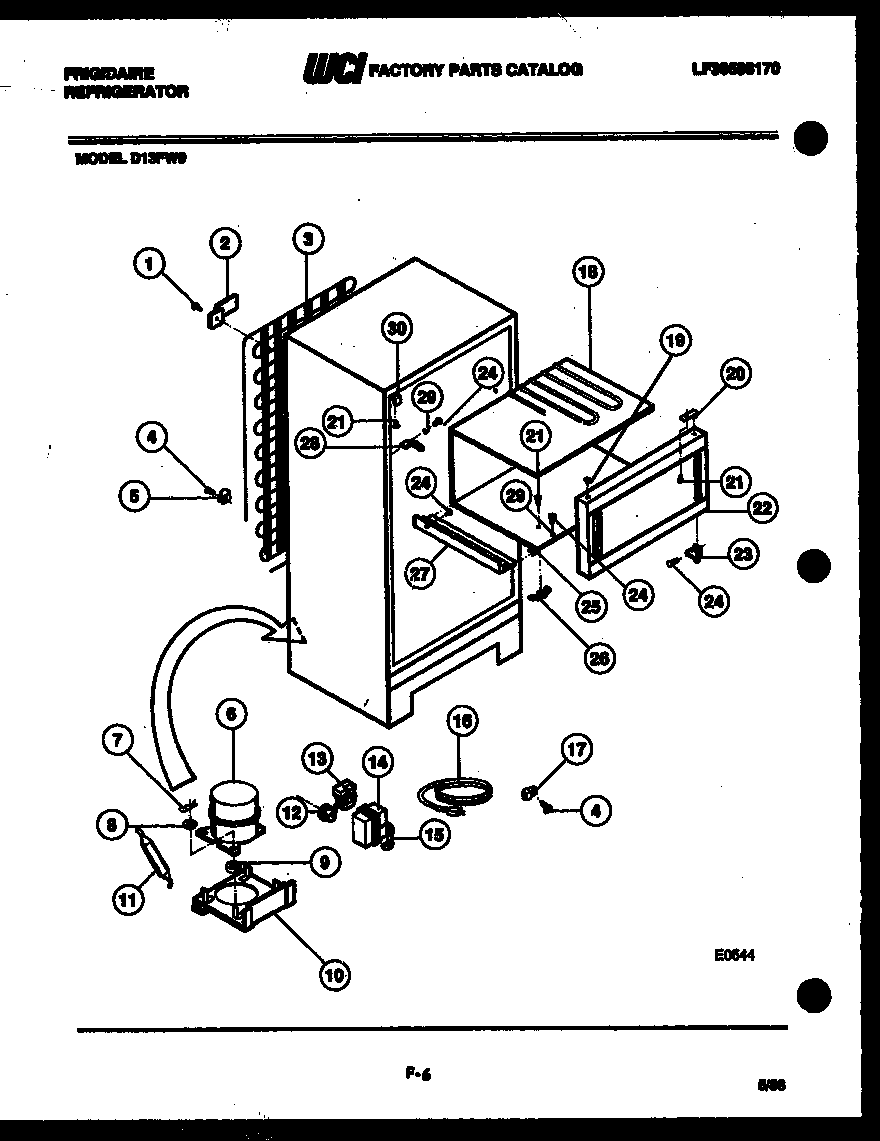

D13FH0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*23491	PLUG-REFRIGERATOR LINER (2)
1	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
2	BRACKET-CONDENSER MOUNTING (4)
3	WCI 8001012
4	SCREW-TUBE MOUNTING (2)
5	CLAMP
6	WCI 8016558
7	CLIP (4)
8	WASHER (4)
9	WCI 8008778
10	WCI 8009596
11	WCI 8000027
12	WCI 8016604
13	WCI 3017583
14	WCI 8016583
15	WCI 8016584
16	WCI 8000064
16A	WCI 8009778
17	CLAMP-STRAIN RELIEF (3)
18	WCI 8016570
19	WCI 8009724
20	WCI 8009748
21	SCREW-COVER MOUNTING (NON-ILLUSTRATED)
22	WCI 3018390
23	WCI 8009997
24	WCI 8010253
25	WCI 8010254
26	WCI 8009792
27	WCI 8009749
28	WCI 8014590
29	WCI 8003607
30	WCI 8014589
