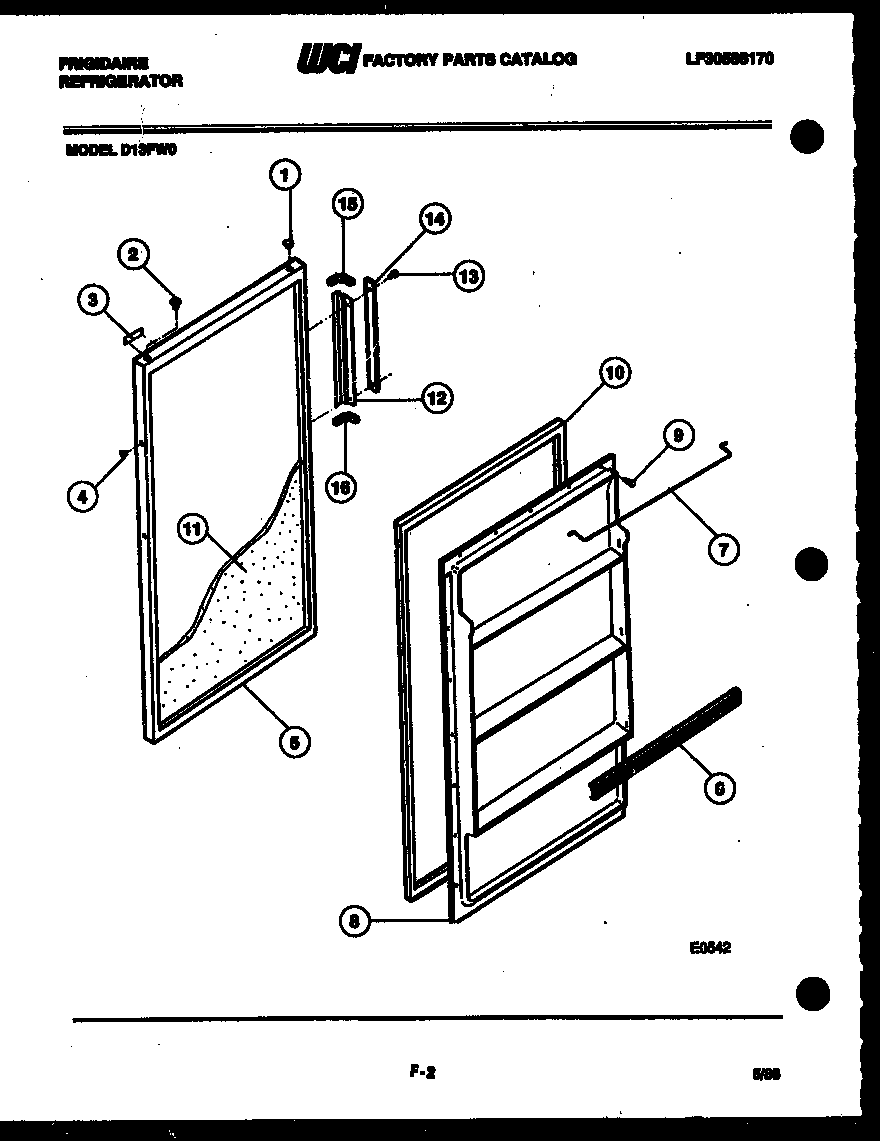

D13FW0 02 – DOOR PARTS

Written by

Products

Position	Product
1	PLUG-HINGE, WHITE
2	HINGE BEARING (8)
3	WCI 3018385
4	PLUG-HANDLE, WHITE
5	WCI 3916037
6	WCI 8000996
7	WCI 8009780
8	WCI 3018382
9	SCREW-PANEL MOUNTING (56)
10	WCI 3018383
11	INSULATION-BULK
12	HANDLE ASSEMBLY WITH CAP & TRIM (2)
13	SCREW-HANDLE MOUNTING (4)
14	TRIM-HANDLE (2)
15	END CAP-TOP (2)
16	END CAP-BOTTOM (2)
