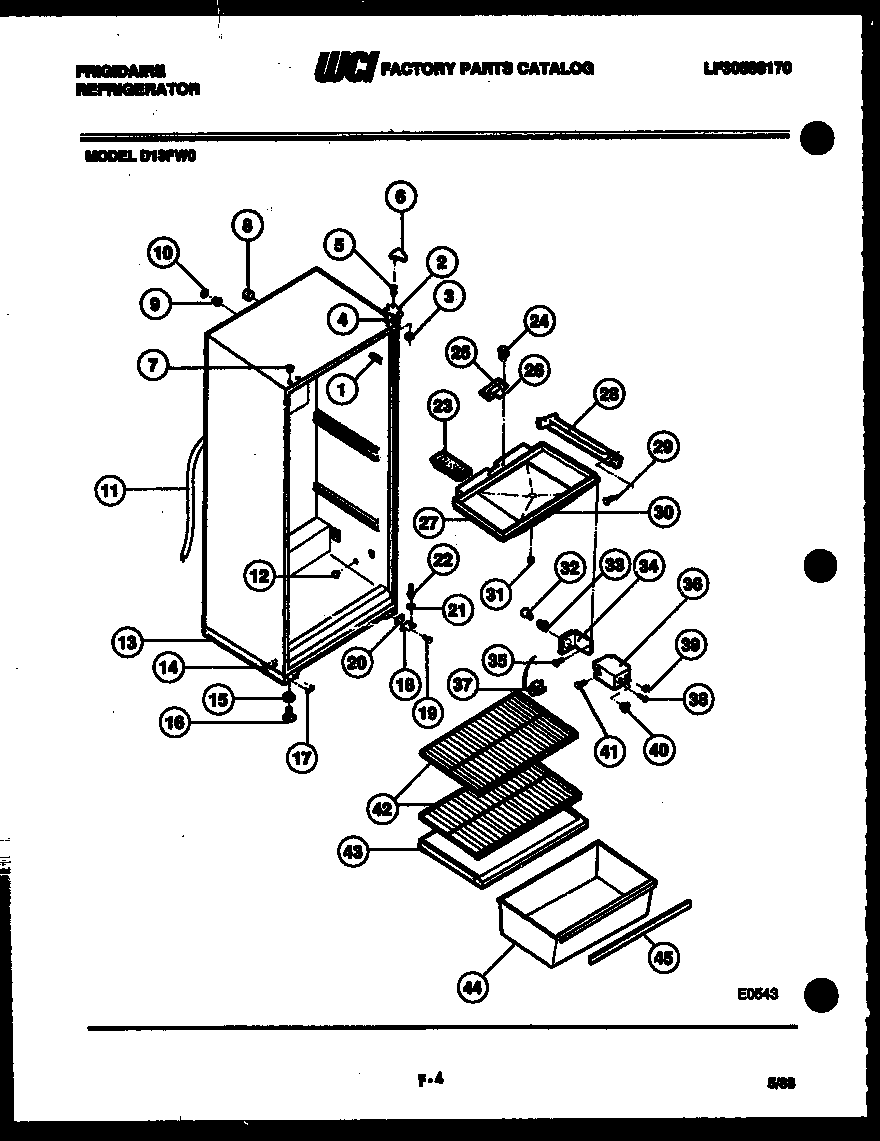

D13FW0 03 – CABINET PARTS

Products

Position	Product
1	WCI 8003582
2	WCI 8012843
3	WASHER-1/4 NYLON (3)
4	WCI 8012829
5	SCREW-HINGE MOUNTING (2)
6	COVER, HNG, WHTE
7	WCI 8007099
8	WCI 8000004
9	WCI 8006970
10	WCI 8006971
11	WCI 8009778
12	PLUG-REFRIGERATOR LINER (2)
13	WCI 8010090
14	PLATE-TAPPING (2)
15	WCI 8003584
16	SCREWS LEVELING (4)
17	WCI 8003585
18	BRACKET-HNG
19	SCREW-HINGE MOUNTING
20	SHIM-LOWER HINGE
21	WASHER-5/16 NYLON
22	PIN-LOWER HINGE
23	WCI 6598817
24	CLIP-RIVET
25	WCI 8009948
26	WCI 8009975
27	WCI 8009777
28	WCI 8000984
29	SCREW-COVER MOUNTING (NON-ILLUSTRATED)
30	WCI 8009998
31	WCI 8009779
32	LIGHT BULB
33	WCI 8000129
34	WCI 8003579
35	WCI 8010253
36	WCI 8009604
37	WCI 8017237
38	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
39	SWITCH, LIGHT
40	WCI 8009731
41	WCI 8003581
42	WCI 3018389
43	WCI 3018388
44	WCI 3018386
45	WCI 3018387
