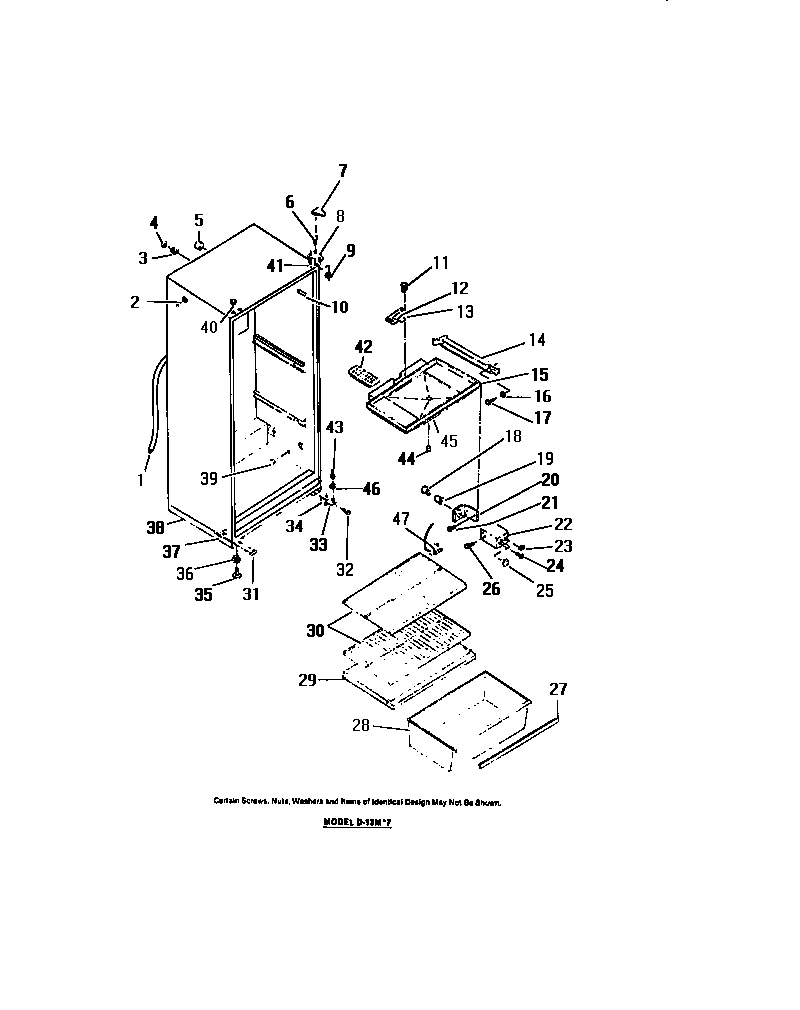

| 1 | WCI 8009778 |
| 2 | BTN-PLUG (5) |
| 3 | WCI 8006970 |
| 4 | WCI 8006971 |
| 5 | WCI 8000004 |
| 6 | SCREW-HINGE MOUNTING (2) |
| 7A | COVER, HNG, ALMD |
| 8 | WCI 8012843 |
| 9 | WASHER-1/4 NYLON (3) |
| 10A | WCI 8003618 |
| 11 | CLIP-RIVET |
| 12 | WCI 8009948 |
| 13 | WCI 8009975 |
| 14 | WCI 8000984 |
| 15 | WCI 8009777 |
| 16 | WCI 8010228 |
| 19 | WCI 8000129 |
| 20 | WCI 8003579 |
| 21 | WCI 8010253 |
| 22 | WCI 8009604 |
| 23 | SWITCH, LIGHT |
| 24 | SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED) |
| 25 | WCI 8009731 |
| 26 | WCI 8003581 |
| 27 | WCI 8009907 |
| 28 | WCI 8009661 |
| 29 | WCI 8009662 |
| 30 | WCI 8000857 |
| 31 | WCI 8003585 |
| 32 | SCREW-HINGE MOUNTING |
| 33 | BRACKET-HNG |
| 34 | SHIM-LOWER HINGE |
| 35 | SCREWS LEVELING (4) |
| 36 | WCI 8003584 |
| 37 | PLATE-TAPPING (2) |
| 38 | WCI 8010090 |
| 39 | PLUG-REFRIGERATOR LINER (2) |
| 40A | WCI 8007129 |
| 41 | WCI 8012829 |
| 42 | WCI 6598817 |
| 43 | PIN-LOWER HINGE |
| 44 | WCI 8009779 |
| 45 | WCI 8009998 |
| 46 | WASHER-5/16 NYLON |
| 47 | WCI 8017237 |
