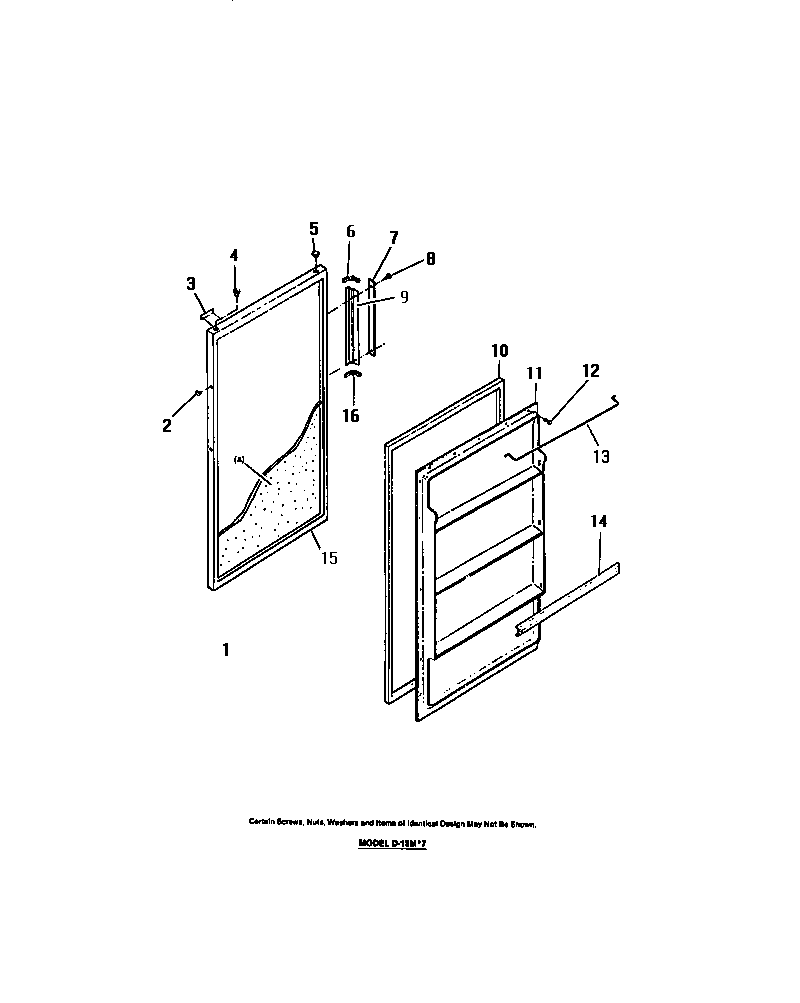

D13ML7 03 – FOOD AND FREEZER DOORS

D13ML7 03 – FOOD AND FREEZER DOORS

Written by

in

D13ML7 03 – FOOD AND FREEZER DOORS

Products

PositionProduct
1AWCI 8000295
2APLUG-HANDLE, ALMOND
3WCI 8009843
4HINGE BEARING (8)
5APLUG-HINGE, ALMOND
6END CAP-TOP (2)
7TRIM-HANDLE (2)
8SCREW-HANDLE MOUNTING (4)
9HANDLE-COMPLETE
10WCI 8016562
11WCI 8009783
12SCREW-PANEL MOUNTING (56)
13WCI 8009780
14WCI 8000996
15ADOOR-ALMOND
