D200 03 – SECTION

D200 03 – SECTION

Written by

in

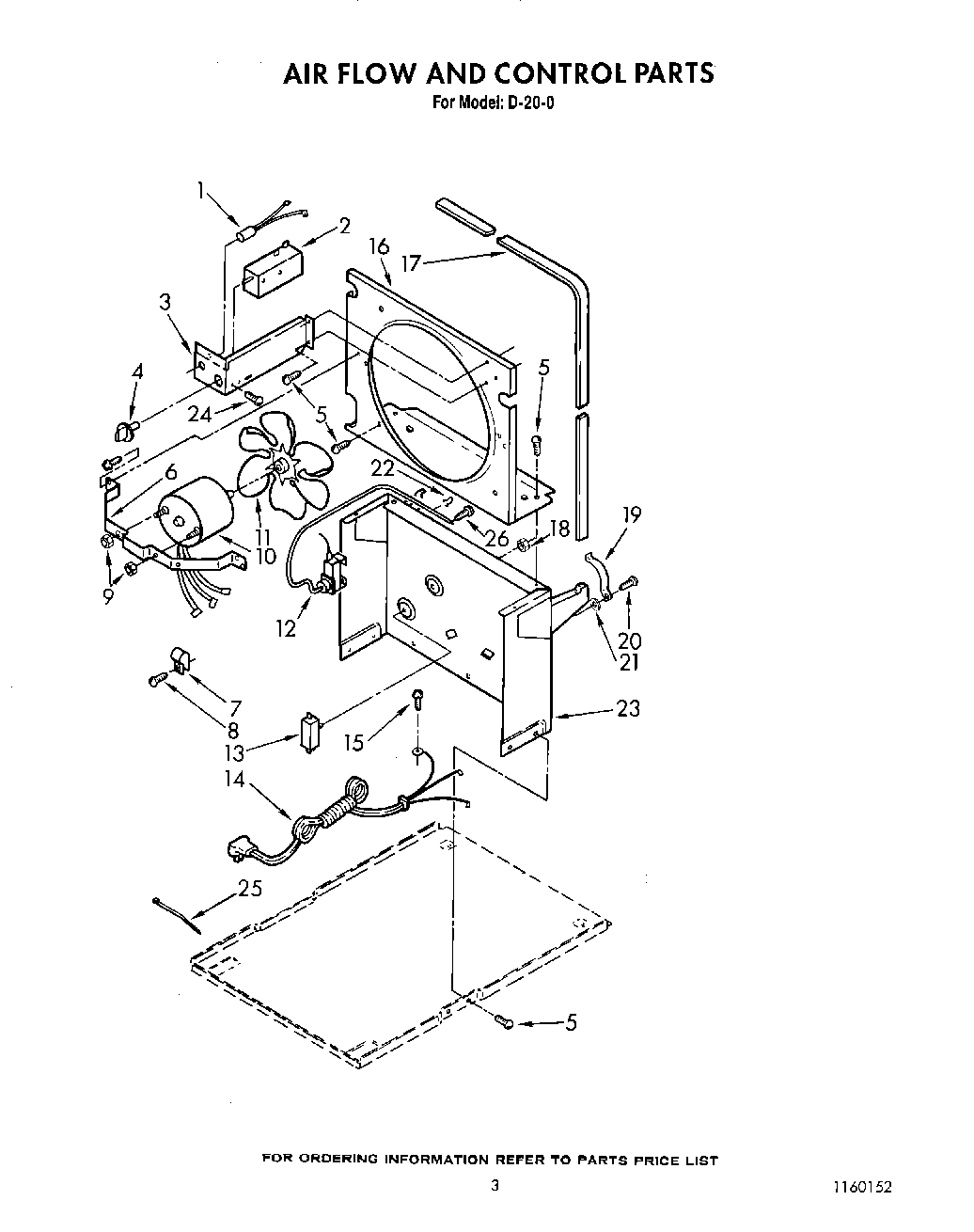

D200 03 – SECTION

Products

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Control
4Knob, Humidistat Control
5Screw, 8 x 3/8
6Bracket, Fan Motor Mounting
7488946 Whirlpool Air Conditioner Clamp
8WP488729 Whirlpool Refrigerator Door Screw
9WP488130 Whirlpool Air Conditioner Nut
10WPL 1156859
11Blade, Fan
12Thermostat, De-Icer
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer (Repair) (.091 Thickness)
21Washer (Repair) (.062 Thickness)
21Washer, Repair (.045 Thickness)
22Clamp, Tube To Evaporator Mtg (2)
23Support
24Screw, 8 X 1/4
25WPW10339879 Whirlpool Wire Tie
26WP488234 Whirlpool Air Conditioner Screw
