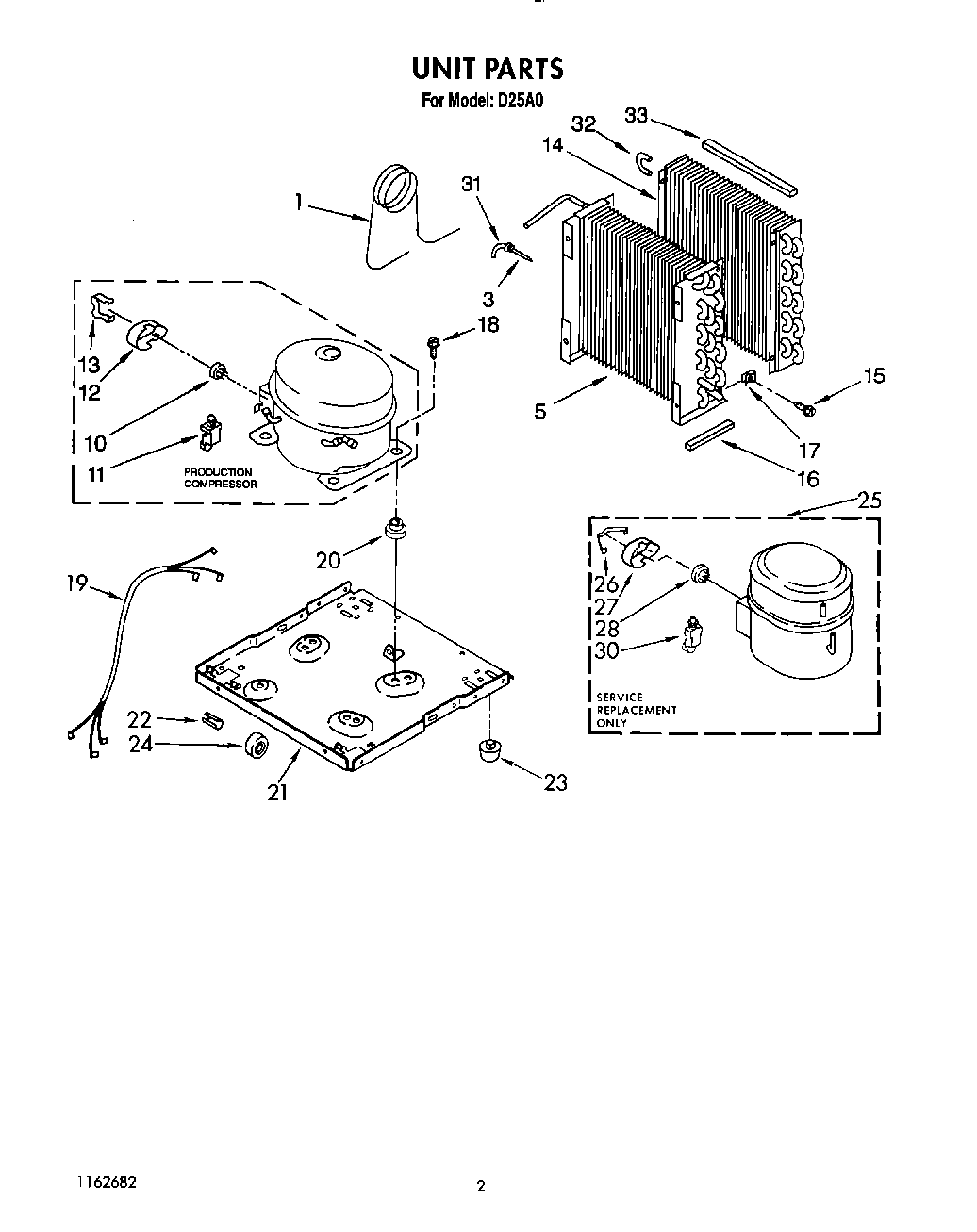

D25A0 02 – SECTION

Products

Position	Product
1	Tube, Restrictor (Length 36.00“)
3	Strainer
5	Condenser
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Pin, Roller (2)
23	Glide (2)
24	Roller (2)
25	Compressor, Service (Complete Assembly)
26	Strap
27	Cover, Terminal (Production)
28	Overload
30	Relay, Start
31	Bend, Return Evaporator (11)
32	Bend, Return Evaporator (4)
33	Seal, Evaporator Top
