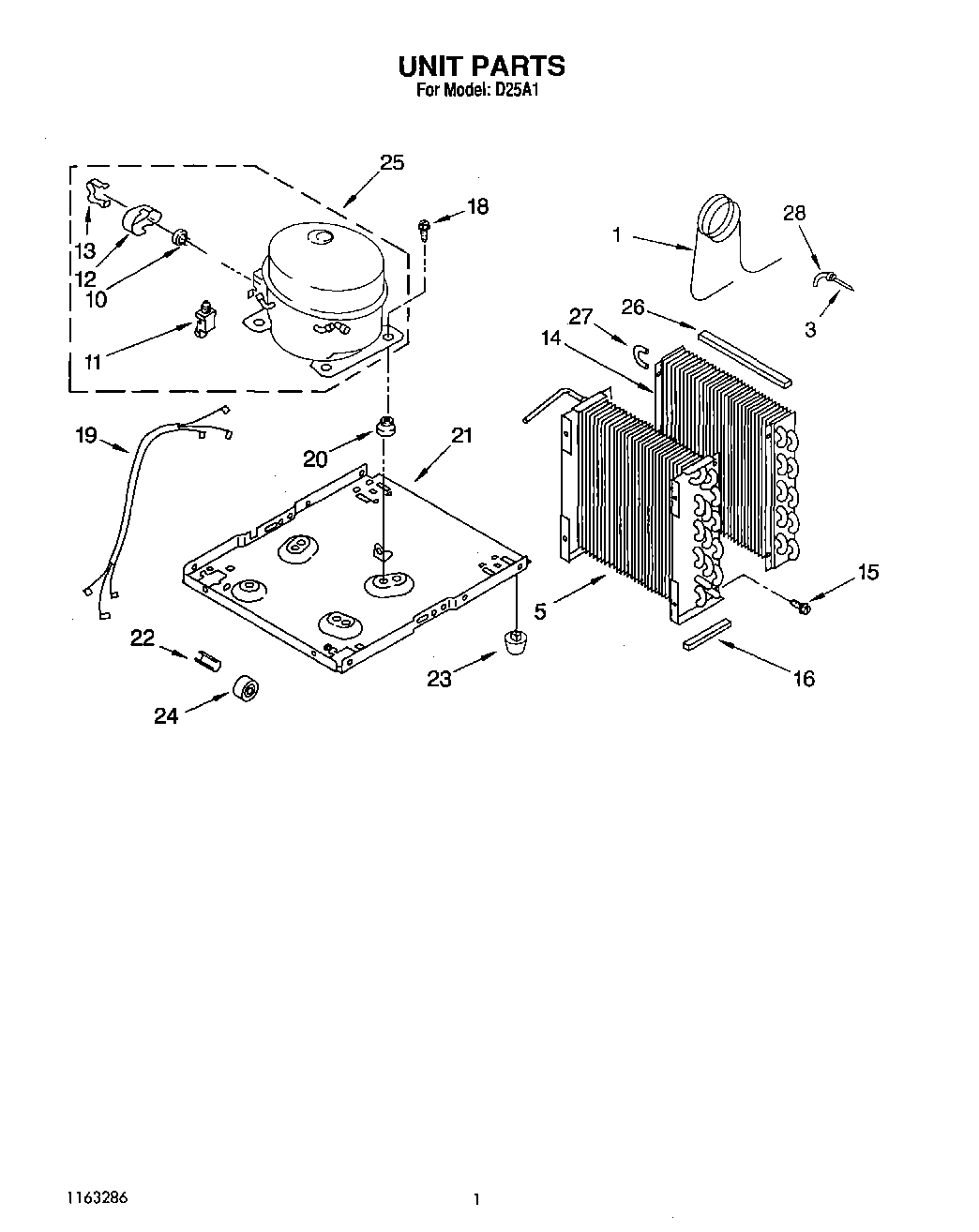

D25A1 02 – UNIT

Products

Position	Product
1	Tube, Restrictor (36.00“ Length)
3	Strainer
5	Condenser
10	Overload
10	Overload
11	Relay, Start (Production)
11	Relay, Start
12	Cover, Terminal (Production)
12	Cover, Terminal
13	Retainer, Cover
13	Strap
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Pin, Roller (2)
23	Glide (2)
24	Roller (2)
25	Compressor, (Complete Assembly)
26	Seal, Evaporator Top
27	Bend, Return Evaporator (4)
28	Bend, Return Evaporator (11)
