D25A2 02 – UNIT, LITERATURE

D25A2 02 – UNIT, LITERATURE

Written by

in

D25A2 02 – UNIT, LITERATURE

Products

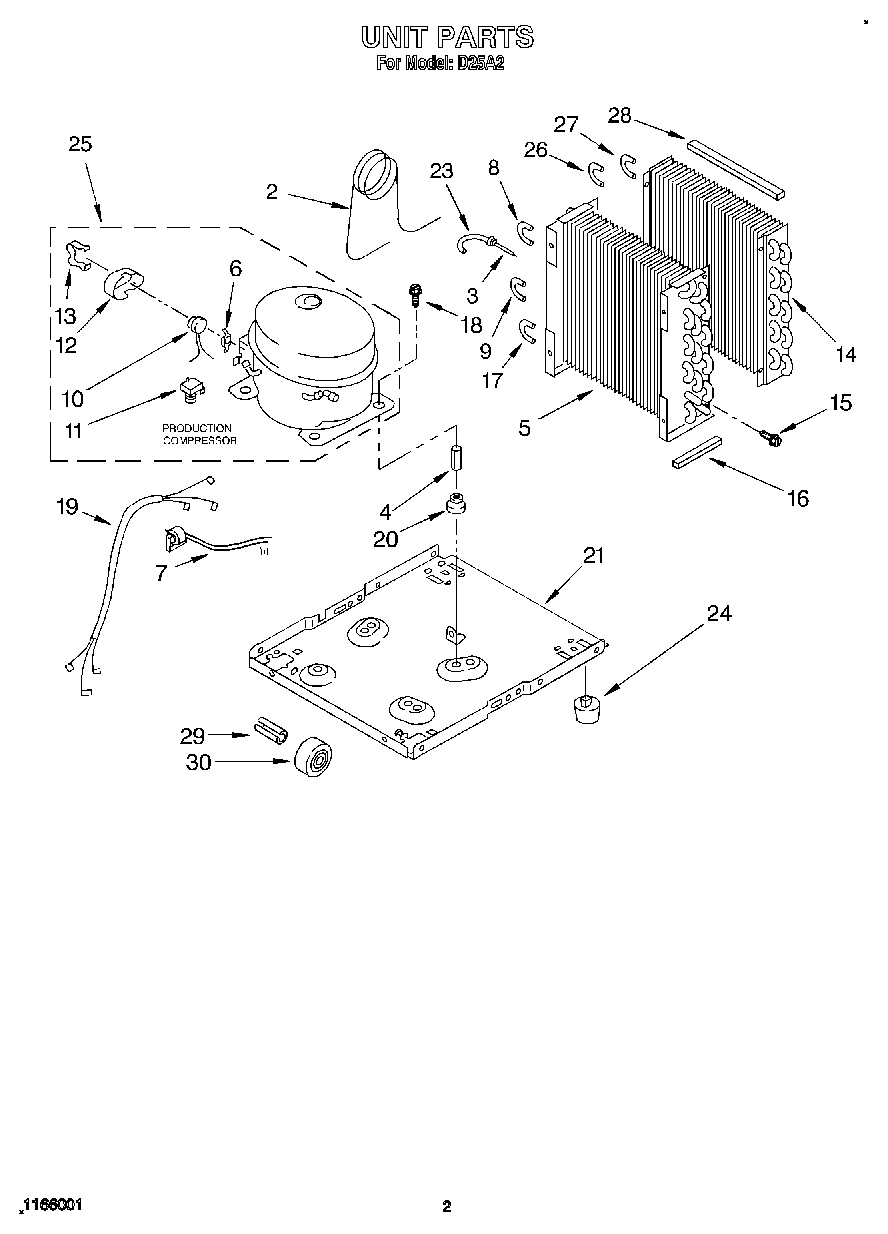

PositionProduct
WPL LIT1166001
WPL LIT1162709
WPL LIT1166033
WPL LIT1166032
2Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
4Sleeve (4)
5Condenser
6Spring, Overload
7WPL 1166013
8Bend, Return Condenser (1)
9Bend, Return Condenser (4)
10WPL 1164775
11Relay
12Cover, Terminal
13Retainer, Cover
14Evaporator
15WP489069 Whirlpool Compactor Screw
16Seal
17Bend, Return Condenser (10)
18Bolt, 1/4-28 x 1“ (4)
19WPL 1165265
20Grommet (4)
21Base
23Bend Return
24Glide (2)
25WPL 1164773
26Bend, Return Evaporator (11)
27Bend, Return Evaporator (4)
28Seal, Evaporator Top
29Pin, Roller (2)
30Roller (2)
