D25B0 02 – UNIT, LITERATUREadmin2025-04-26T10:54:25+00:00D25B0 02 – UNIT, LITERATURE

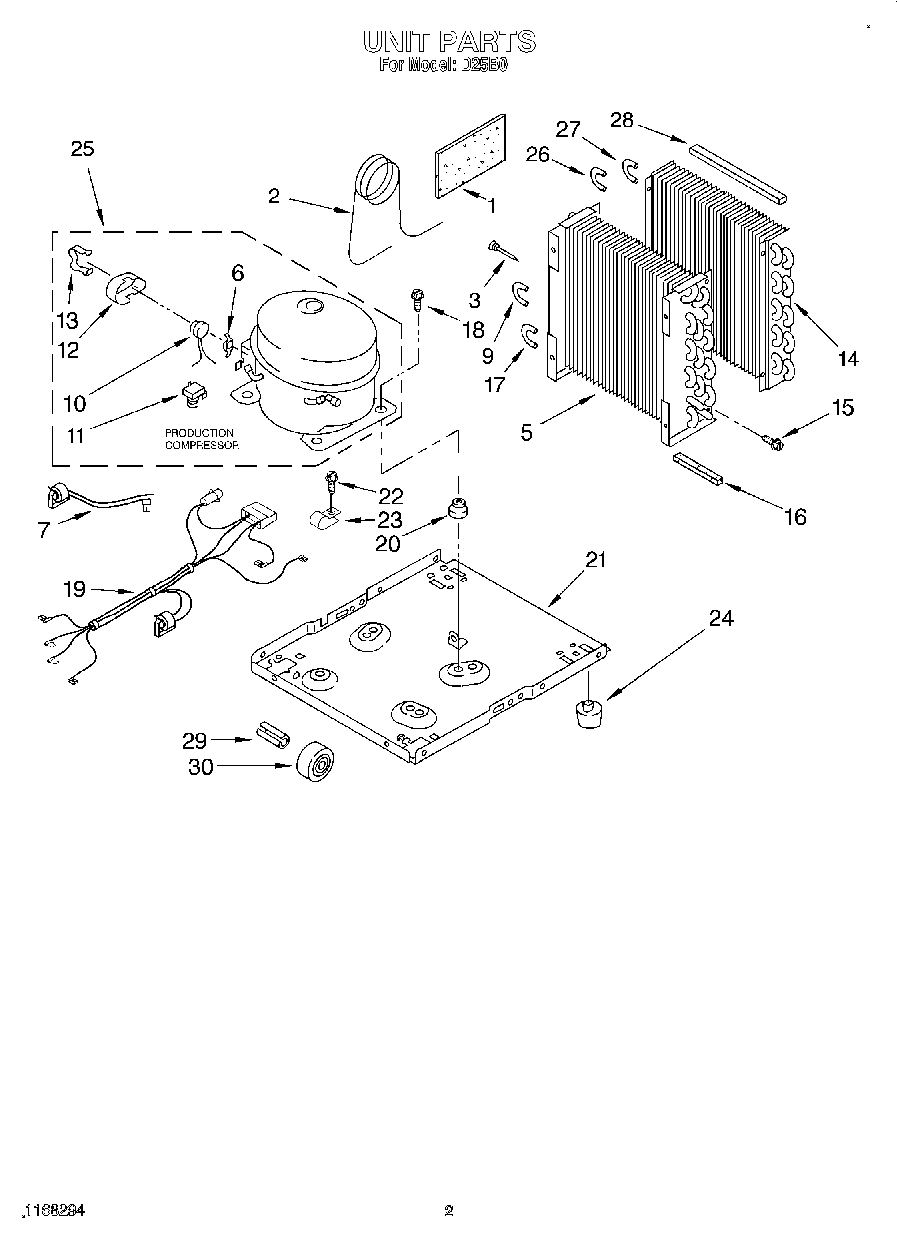

Products
| Position | Product |
|---|
| WPL LIT1169993 |
| WPL LIT1168294 |
| WPL LIT1166033 |
| WPL LIT1166032 |
| 1 | WPL 1162650 |
| 2 | Tube, Restrictor (36.0`` Length) |
| 3 | WP1162526 Whirlpool Air Conditioner Strainer |
| 5 | WPL 1167544 |
| 6 | Spring, Overload |
| 7 | WPL 1166013 |
| 9 | Bend, Return Condenser (4) |
| 10 | WPL 1164775 |
| 11 | Relay |
| 12 | Cover, Terminal |
| 13 | Retainer, Cover |
| 14 | WPL 1168184 |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Seal |
| 17 | Bend, Return Condenser (10) |
| 18 | Bolt, 1/4-28 x 1`` (4) |
| 19 | WPL 1165265 |
| 20 | 876811 Whirlpool Grommet |
| 21 | Base |
| 22 | W11624204 Whirlpool Screw |
| 23 | Relief, Strain |
| 24 | Glide (2) |
| 25 | WPL 1164773 |
| 26 | Bend, Return Evaporator (11) |
| 27 | Bend, Return Evaporator (4) |
| 28 | Seal, Evaporator Top |
| 29 | Pin, Roller (2) |
| 30 | Roller (2) |
