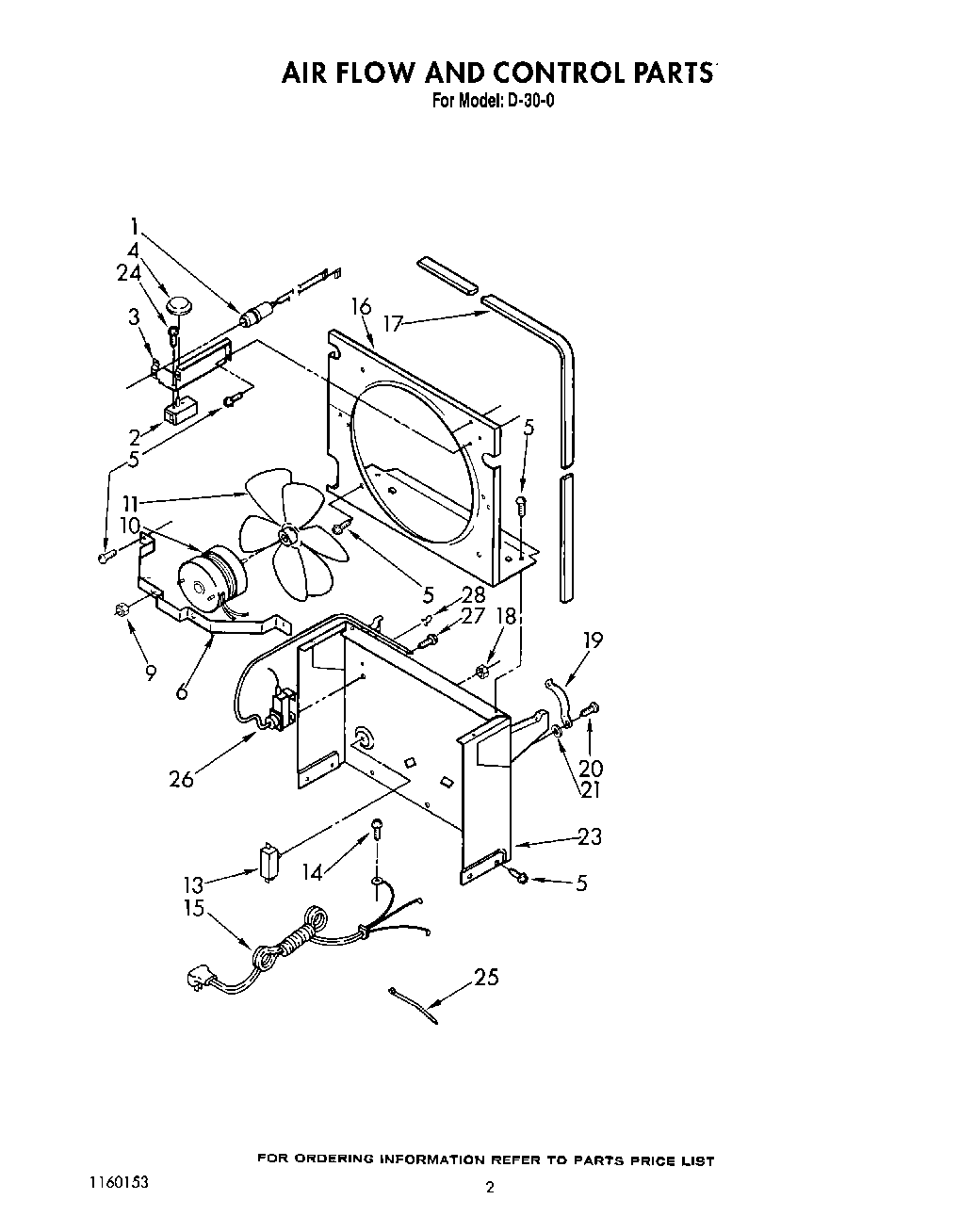

D300 02 – SECTION
Written by
in
D300 02 – SECTION
Products
Position
Product
1
Light, Indicator
2
Humidistat, Control
3
Bracket, Control
4
Knob, Humidistat Control
5
Screw, 8 x 3/8
6
Bracket, Fan Motor Mounting
9
WP488130 Whirlpool Air Conditioner Nut
10
Motor, Fan
11
Blade, Fan
13
Switch, Water Level Control
14
WPW10141604 Whirlpool Screw
15
Cord, Appliance
16
Plate, Orifice
17
Seal
18
Palnut, 3/8-32
19
Spring, Water Level
20
WP488163 Whirlpool Refrigerator Screw
21
Washer, Repair (.045 Thickness)
21
Washer (Repair) (.062 Thickness)
21
Washer (Repair) (.091 Thickness)
23
Support
24
Screw, 8 X 1/4
25
WPW10339879 Whirlpool Wire Tie
26
Thermostat, De-Icer
27
WP488234 Whirlpool Air Conditioner Screw
28
Clamp, Tube To Evaporator Mtg (2)
←
