D300 03 – SECTION

D300 03 – SECTION

Written by

in

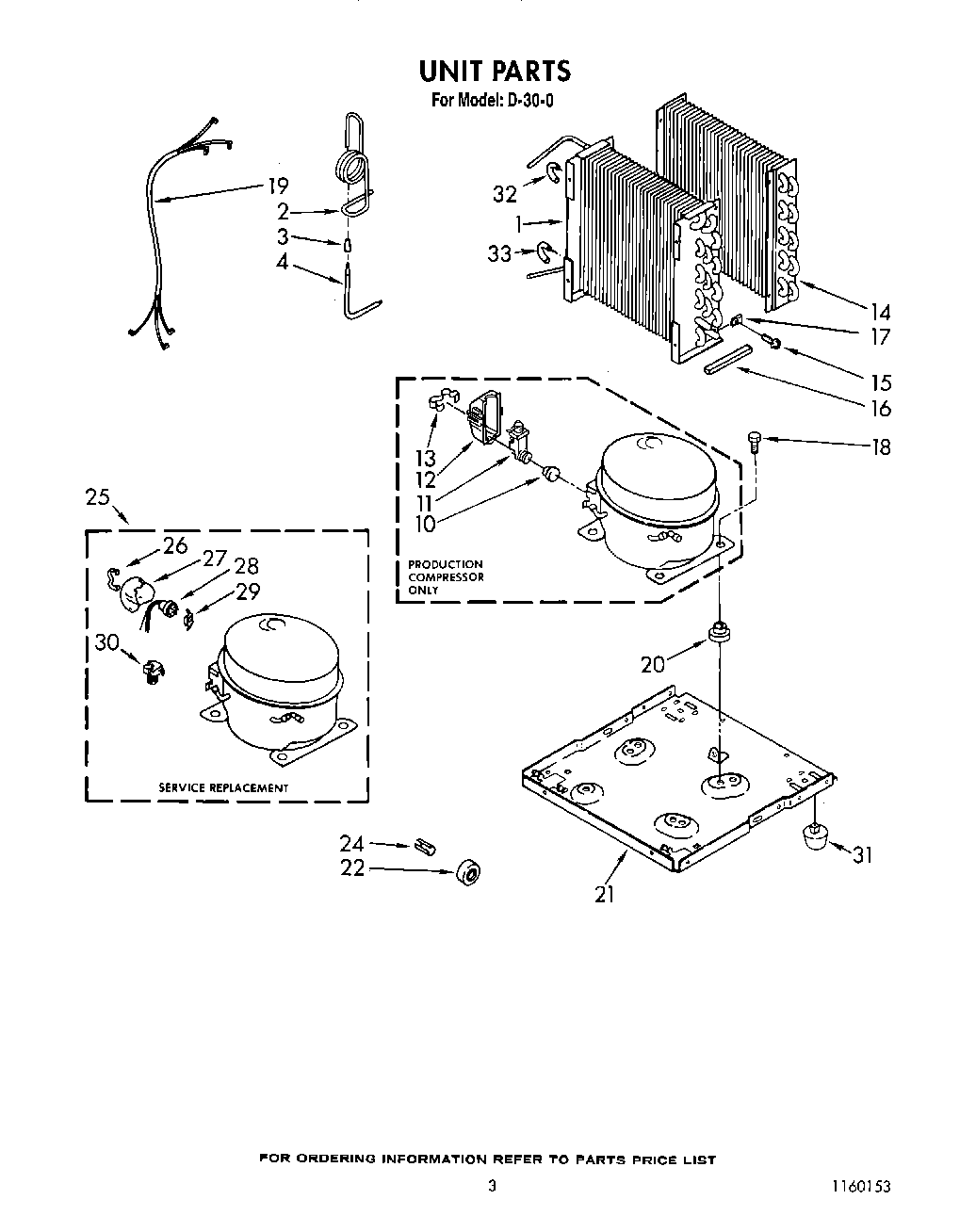

D300 03 – SECTION

Products

PositionProduct
1WPL 1159231
2WPL 1158545
3Strainer
4Tube, Outlet (Includes No.3)
10Overload (Production)
11Relay, Start (Production)
12Cover, Terminal (Production)
13Strap
14WPL 1159233
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Roller (2)
24Pin, Roller (2)
25Compressor, Service (Complete Assembly)
26Retainer, Cover (Service)
27Cover, Terminal (Service)
28Overload (Service)
29Spring, Overload
30Relay, Start (Service)
31Glide (2)
32Bend, Return Evaporator (11)
33Bend, Return Evaporator (4)
