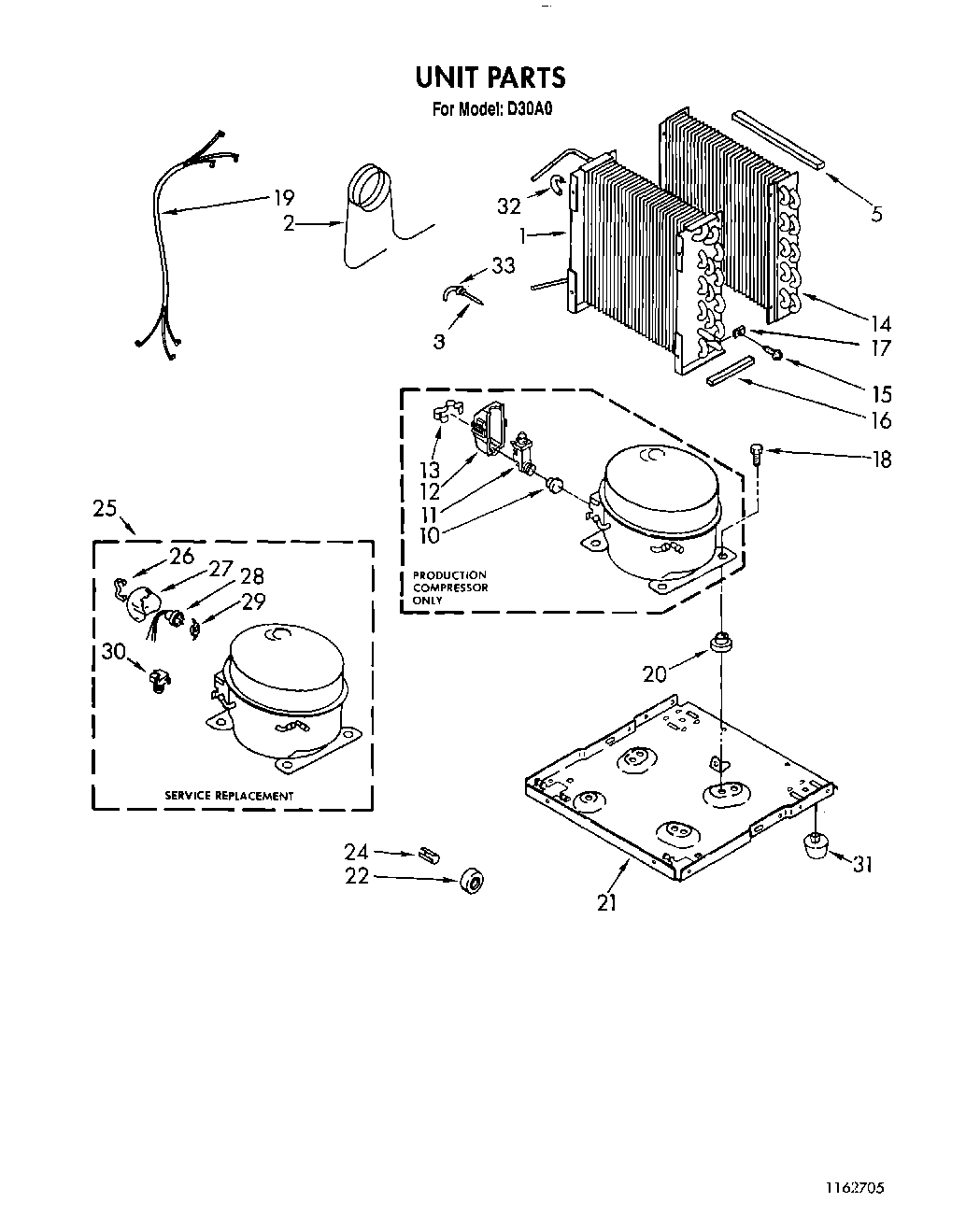

D30A0 03 – SECTION

Products

PositionProduct
1Condenser
2Tube, Restrictor (Length 35.0“)
3Strainer
5Seal, Evaporator Top
10Overload (Production)
11Relay, Start (Production)
12Cover, Terminal (Production)
13Strap
14Evaporator
15WP489069 Whirlpool Compactor Screw
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Roller (2)
24Pin, Roller (2)
25Compressor, Service (Complete Assembly)
26Retainer, Cover (Service)
27Cover, Terminal (Service)
28Overload (Service)
29Spring, Overload
30Relay, Start (Service)
31Glide (2)
32Bend, Return Evaporator (11)
33Bend, Return Evaporator (4)
