D30A0 04 – SECTION

D30A0 04 – SECTION

Written by

in

D30A0 04 – SECTION

Products

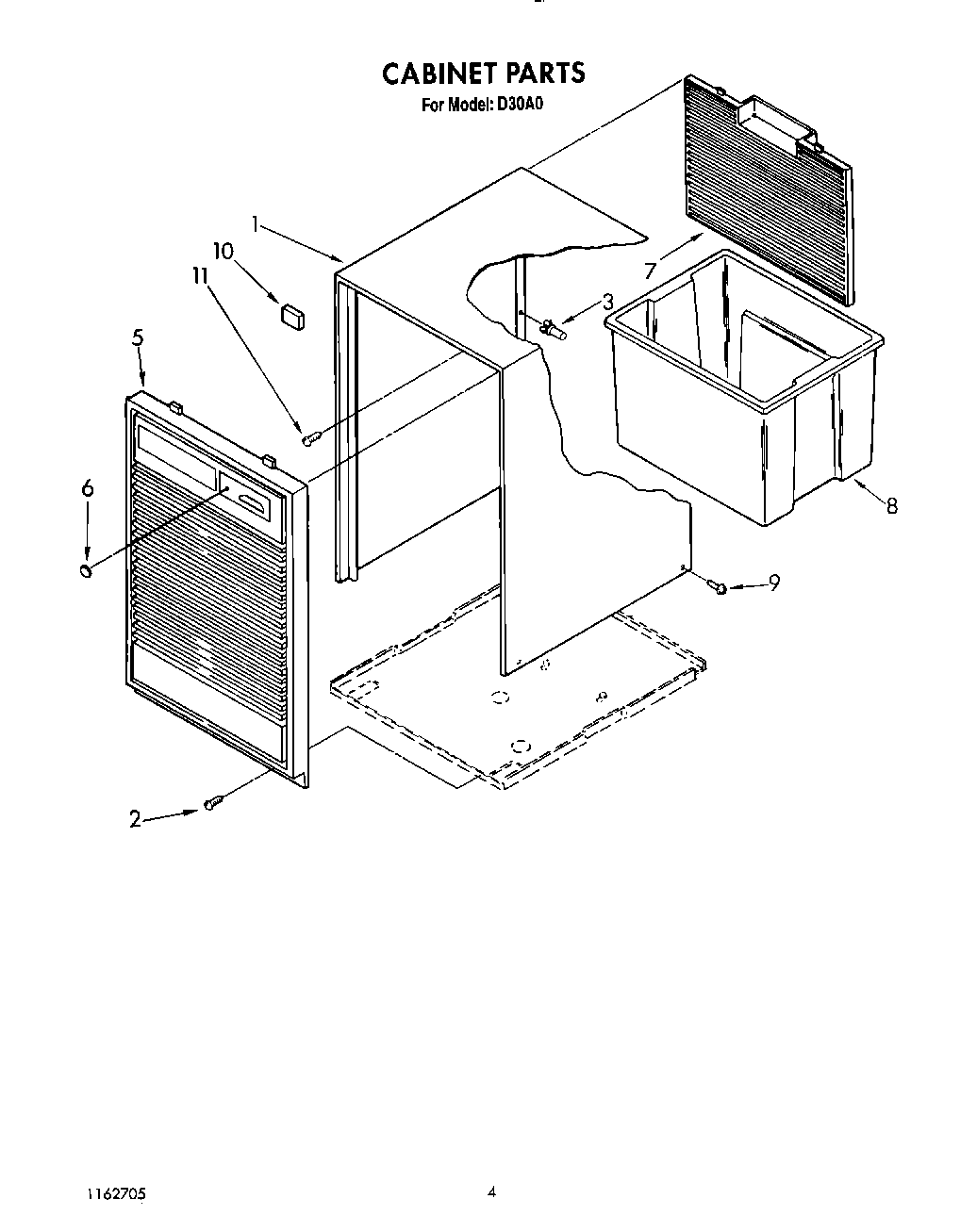

PositionProduct
WPL LIT1162709
WPL LIT1162707
WPL LIT1162705
1Cabinet
2WPW10141625 Whirlpool Refrigerator Screw Assembly
3Retainer Pin (Rear Grille)
5Grille, Front
6Lens, Light
7Grille, Rear
8Pan, Condensate
9Screw
10Spacer, Grille
11Cap, Condensate Pan
11Seal, Ring (Access Valve) (20 – Pack)
11WP16123 Whirlpool Washer
11WP488729 Whirlpool Refrigerator Door Screw
11978026 Whirlpool Refrigerator Primary Valve
11978027 Whirlpool Refrigerator Primary Valve
11978030 Whirlpool Refrigerator Valve
11WP978025 Whirlpool Refrigerator Valve
11VALVE, ACCESS (1/2“)
11Kit, Evaporator Repair (Aluminum Epoxy)
11Lacquer, Starlight Gray (1/2 Pt. Uncut)
11No Drip Tape (For Sweating Tubes)
11VALVE, ACCESS (5/8“)
