D30A1 03 – UNIT

Written by

D30A1 03 – UNIT

Products

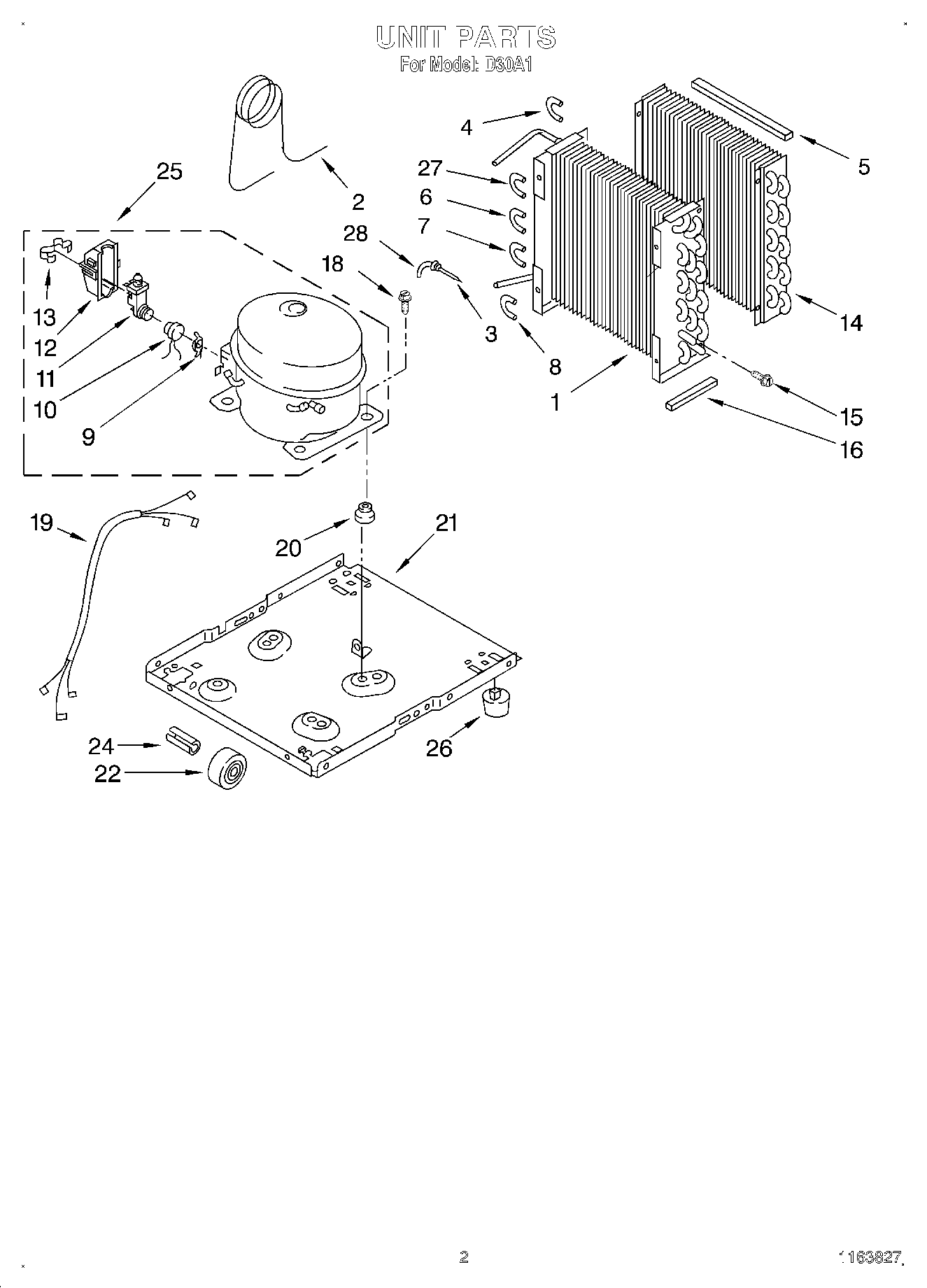

Position	Product
1	Condenser
2	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Bend, Return Condenser (1)
5	Seal, Evaporator Top
6	Bend, Return Condenser (4)
7	Bend, Return Condenser (10)
8	Bend Return
9	Spring, Overload
10	Overload
10	Overload (Service)
11	Relay, Start
11	Relay, Start (Service)
12	Cover, Terminal (Production)
12	Cover, Terminal (Service)
13	Strap
13	Retainer, Cover (Service)
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
24	Pin, Roller (2)
25	WPL 1157552
26	Glide (2)
27	Bend, Return Evaporator (11)
28	Bend, Return Evaporator (4)
