D30A2 03 – UNIT

D30A2 03 – UNIT

Written by

in

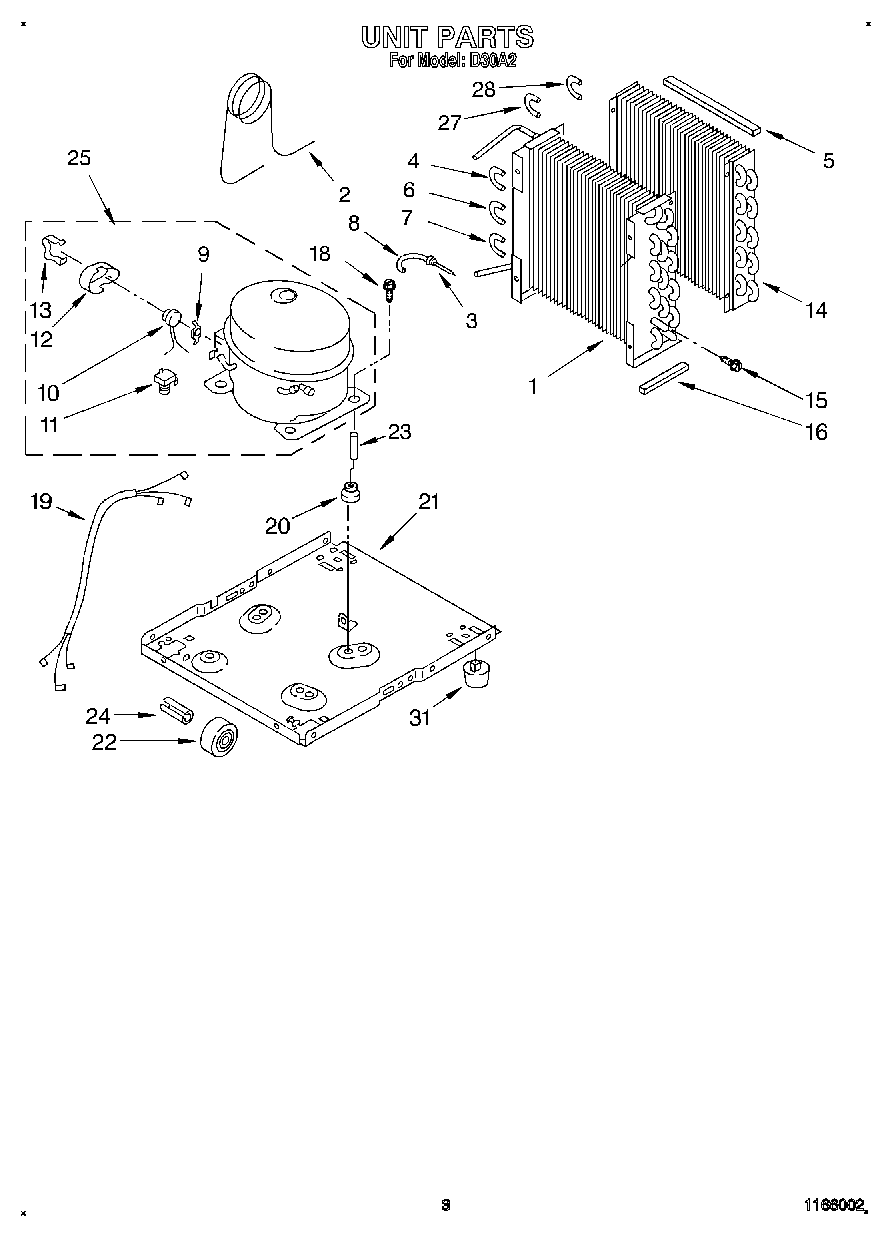

D30A2 03 – UNIT

Products

PositionProduct
1Condenser
2WPL 1165297
3WP1162526 Whirlpool Air Conditioner Strainer
4Bend, Return Condenser (1)
5Seal, Evaporator Top
6Bend, Return Condenser (4)
7Bend, Return Condenser (10)
8Bend Return
9Spring, Overload
10WPL 1164775
11Relay
12Cover, Terminal
13Retainer, Cover
14Evaporator
15WP489069 Whirlpool Compactor Screw
16Seal
18Bolt, 1/4-28 x 1“ (4)
19WPL 1164816
20Grommet (4)
21Base
22Roller (2)
23Sleeve (4)
24Pin, Roller (2)
25WPL 1164773
26Glide (2)
27Bend, Return Evaporator (11)
28Bend, Return Evaporator (4)
