D30A2 04 – CABINET, LITERATURE

D30A2 04 – CABINET, LITERATURE

Written by

in

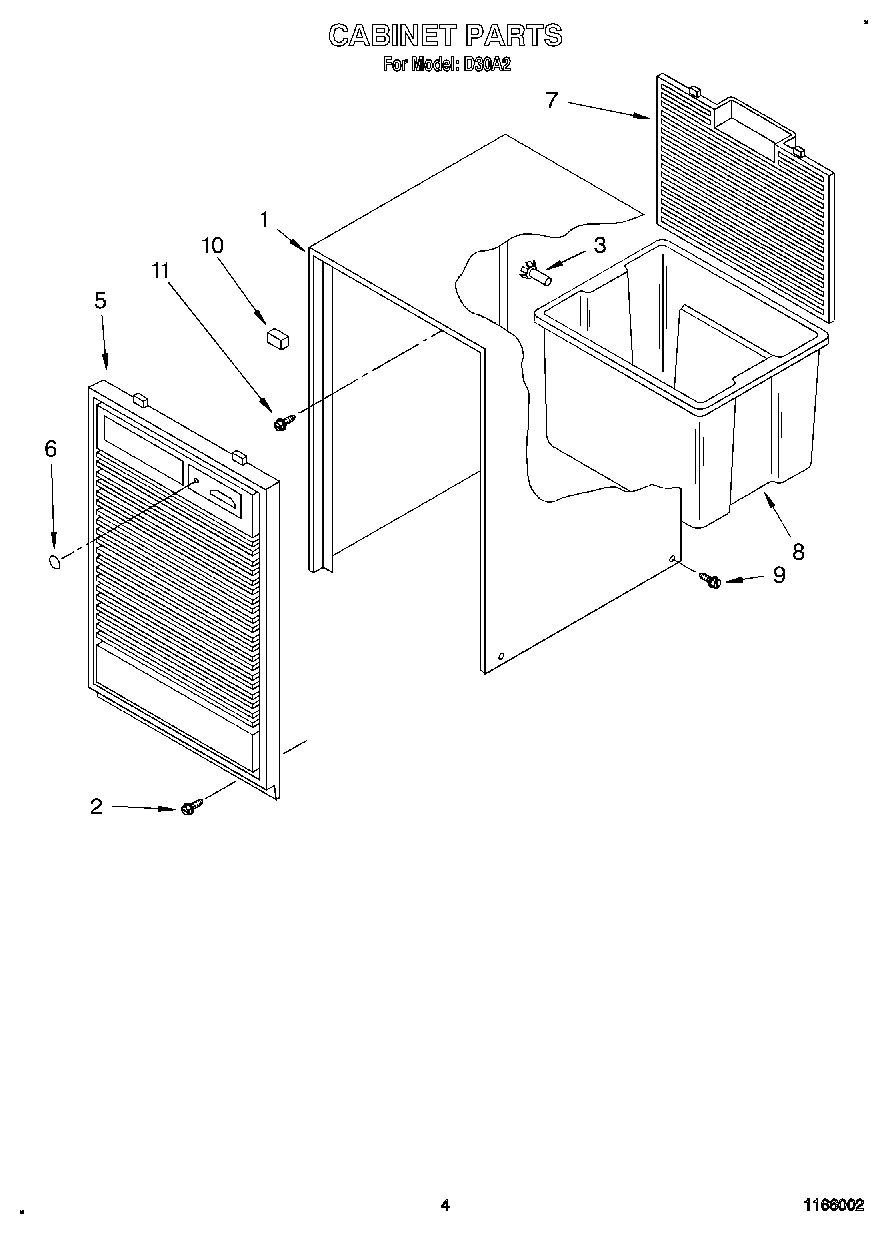

D30A2 04 – CABINET, LITERATURE

Products

PositionProduct
WPL LIT1166002
WPL LIT1165327
WPL LIT1165310
WPL LIT1162709
1Cabinet
2WPW10141625 Whirlpool Refrigerator Screw Assembly
3Retainer Pin (Rear Grille)
5Grille, Front
6Lens, Light
7Grille, Rear
8Pan, Condensate
9Screw
10Spacer, Grille
11978027 Whirlpool Refrigerator Primary Valve
11978026 Whirlpool Refrigerator Primary Valve
11WP488729 Whirlpool Refrigerator Door Screw
11WP16123 Whirlpool Washer
11978030 Whirlpool Refrigerator Valve
11WP978025 Whirlpool Refrigerator Valve
11Cap, Condensate Pan
11Kit, Evaporator Repair (Aluminum Epoxy)
11VALVE, ACCESS (1/2“)
11Seal, Ring (Access Valve) (20 – Pack)
11No Drip Tape (For Sweating Tubes)
11Lacquer, Starlight Gray (1/2 Pt. Uncut)
11VALVE, ACCESS (5/8“)
