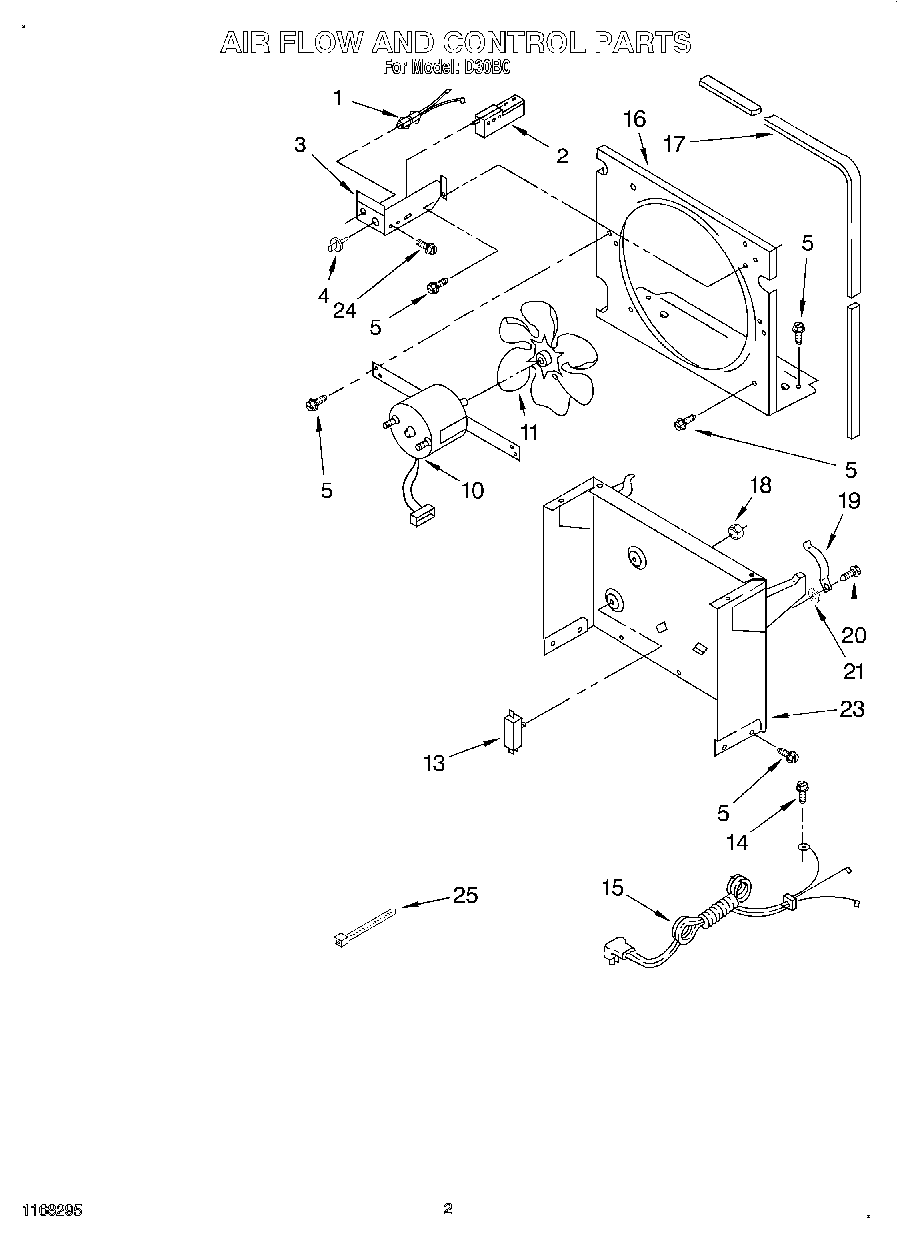

D30B0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Light, Indicator
2	WPL 1166055
3	WPL 1167040
4	WPL 1166806
5	WP489069 Whirlpool Compactor Screw
10	Motor, Fan
11	Blade, Fan
13	Switch, Water Level Control
14	WPW10141604 Whirlpool Screw
15	Cord, Appliance
16	WPL 1166838
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	W11624204 Whirlpool Screw
21	Washer, Repair (.045 Thickness)
21	WPL 1168324
23	Support
24	Screw 8-18 x .295
25	WPW10339879 Whirlpool Wire Tie
