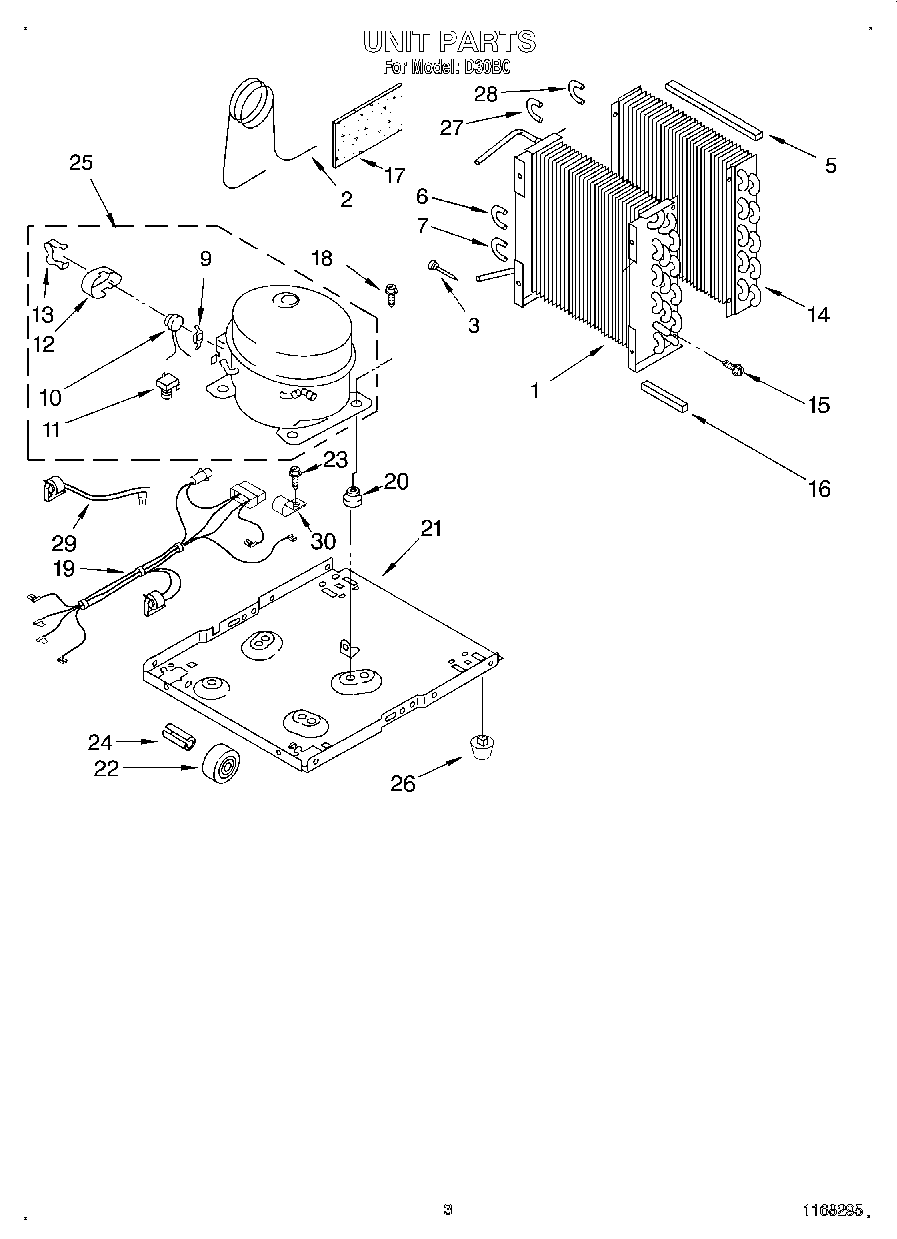

D30B0 03 – UNIT, LIT/OPTIONAL

Products

Position	Product
	VALVE, ACCESS (5/8“)
	WPL LIT1167562
	Cap, Condensate Pan
	Seal, Ring (Access Valve) (20 – Pack)
	WPL LIT1167573
	WPL LIT1168295
	No Drip Tape (For Sweating Tubes)
	Lacquer, Starlight Gray (1/2 Pt. Uncut)
	Kit, Evaporator Repair (Aluminum Epoxy)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	WPL LIT1169993
	WP16123 Whirlpool Washer
1	WPL 1167546
2	Tube, Restrictor (42.0“ Length)
3	WP1162526 Whirlpool Air Conditioner Strainer
5	Seal, Evaporator Top
6	Bend, Return Condenser (4)
7	Bend, Return Condenser (10)
9	Spring, Overload
10	WPL 1164775
11	Relay
12	Cover, Terminal
13	Retainer, Cover
14	WPL 1168186
15	WP489069 Whirlpool Compactor Screw
16	Seal
17	WPL 1162650
18	Bolt, 1/4-28 x 1“ (4)
19	WPL 1167561
20	876811 Whirlpool Grommet
21	Base
22	Roller (2)
23	W11624204 Whirlpool Screw
24	Pin, Roller (2)
25	WPL 1164773
26	Glide (2)
27	Bend, Return Evaporator (11)
28	Bend, Return Evaporator (4)
29	WPL 1167574
30	Relief, Strain
