D31100PAAL 02 – CONTROL PANEL/TOP ASSEMBLY

D31100PAAL 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

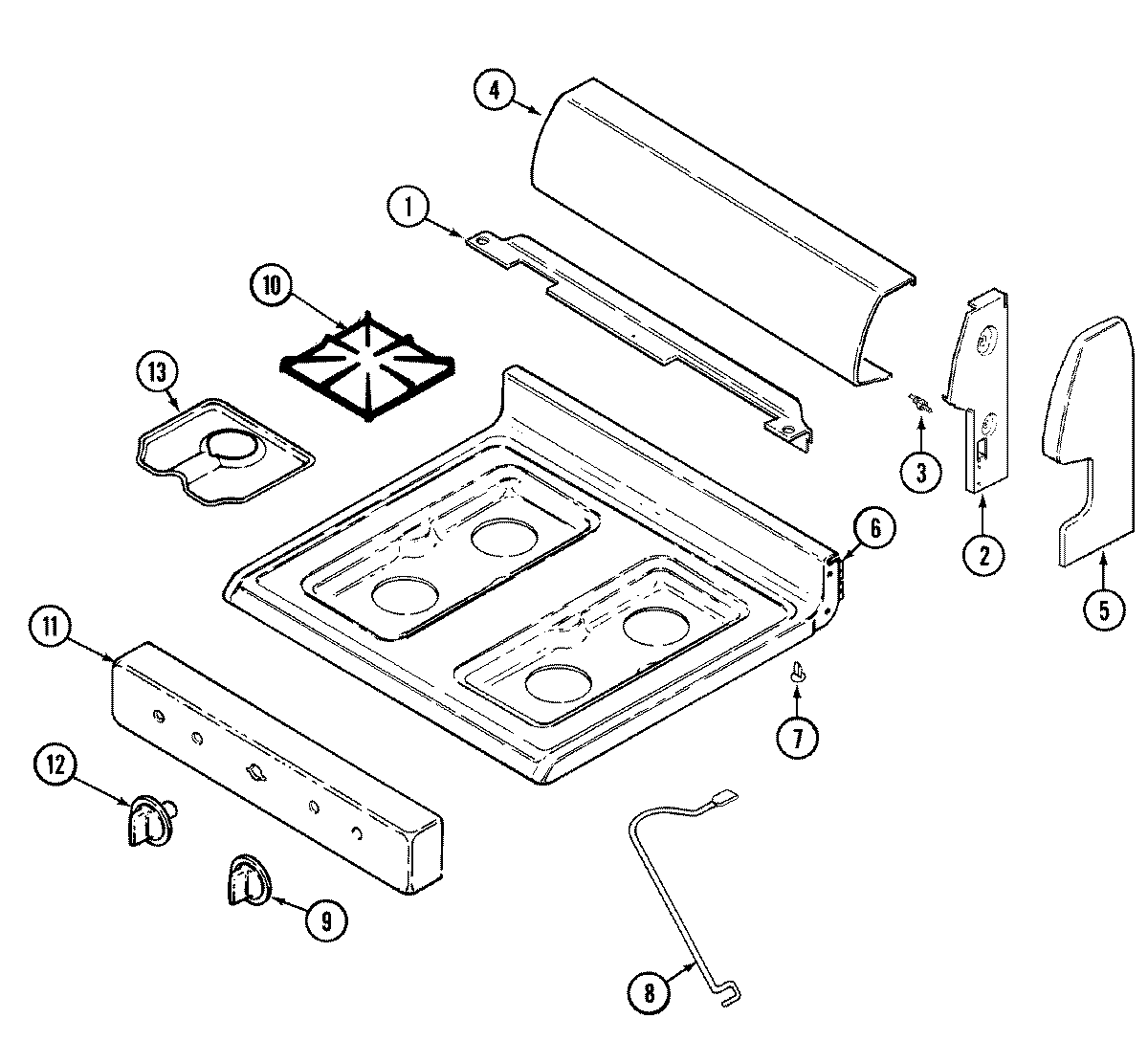

D31100PAAL 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NIMAY 74002355
NIMAY 16010161
1MAY 74002401
1MAY 74002409
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4WP74009541 Whirlpool Screw Assembly
4MAY 74001280
4MAY 74002670
5MAY 74002408
5MAY 74002406
5MAY 74002407
6MAY 74002422
6MAY 74004084
7MAY 74001663
7MAY 8016P015-60
8MAY 74001170
9WP74002353 Whirlpool Control Knob
10MAY 2003W026-00
11MAY 74002411
12WP74002419 Whirlpool Thermal Knob
13MAY 5401A433-60
