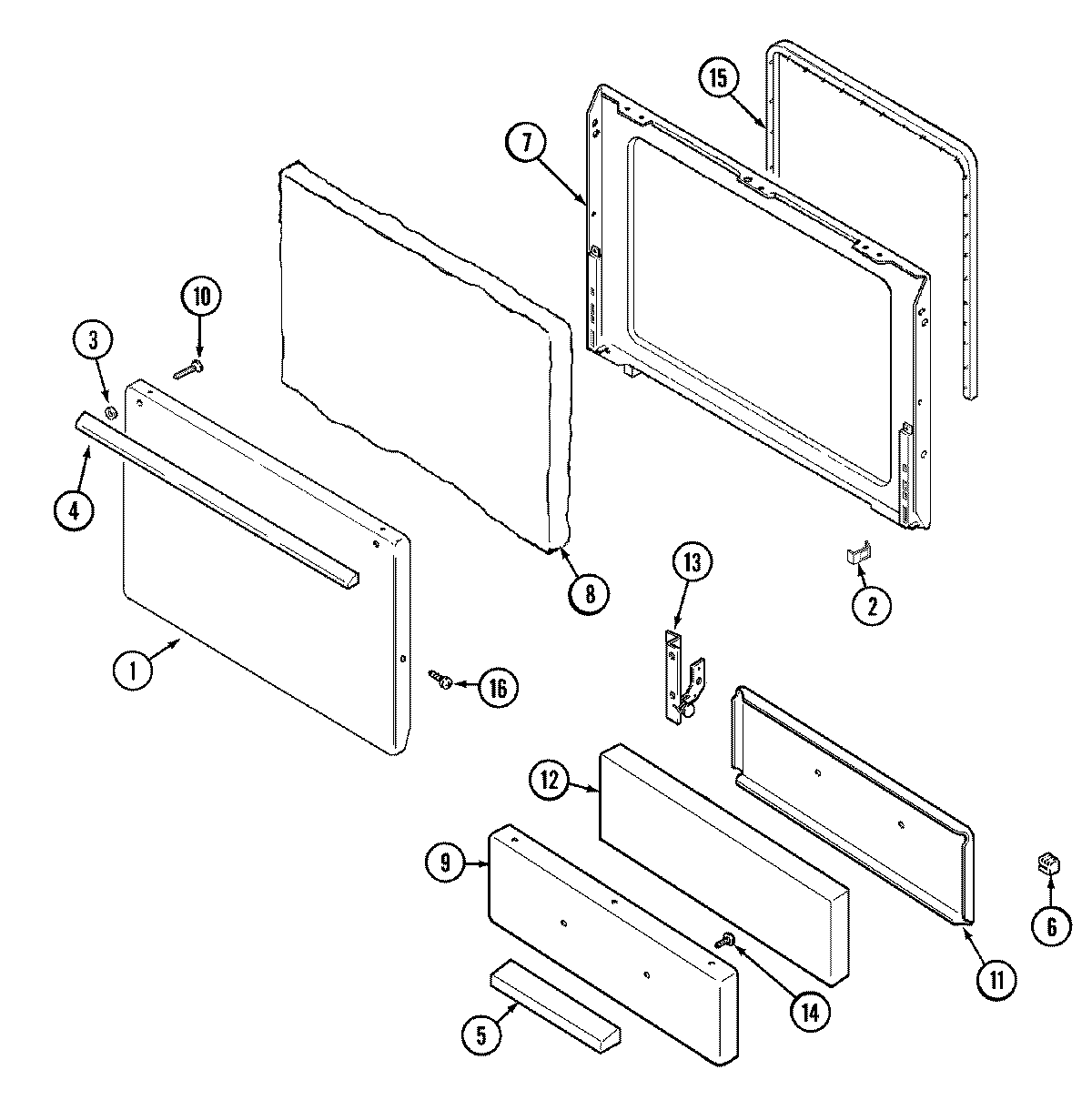

D31100PAAL 03 – DOOR/DRAWER (D31100PAx)

D31100PAAL 03 – DOOR/DRAWER (D31100PAx)

Written by

in

D31100PAAL 03 – DOOR/DRAWER (D31100PAx)

Products

PositionProduct
1MAY 74002283
1MAY 2401F096-74
2CLIP, DOOR
3MAY 8010P084-60
4WP2411F013-70 Whirlpool Door Handle
5MAY 74001820
6MAY 8016P015-60
7MAY 74003240
7NUT, SNAP (ROUND-WHT)
8MAY 4804F028-60
8MAY 4804F050-60
9SCREW
9MAY 74002316
10MAY 7101P080-60
11MAY 74002397
12MAY 74001814
13MAY 74002398
1474002481 Whirlpool Screw
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16WP74009541 Whirlpool Screw Assembly
