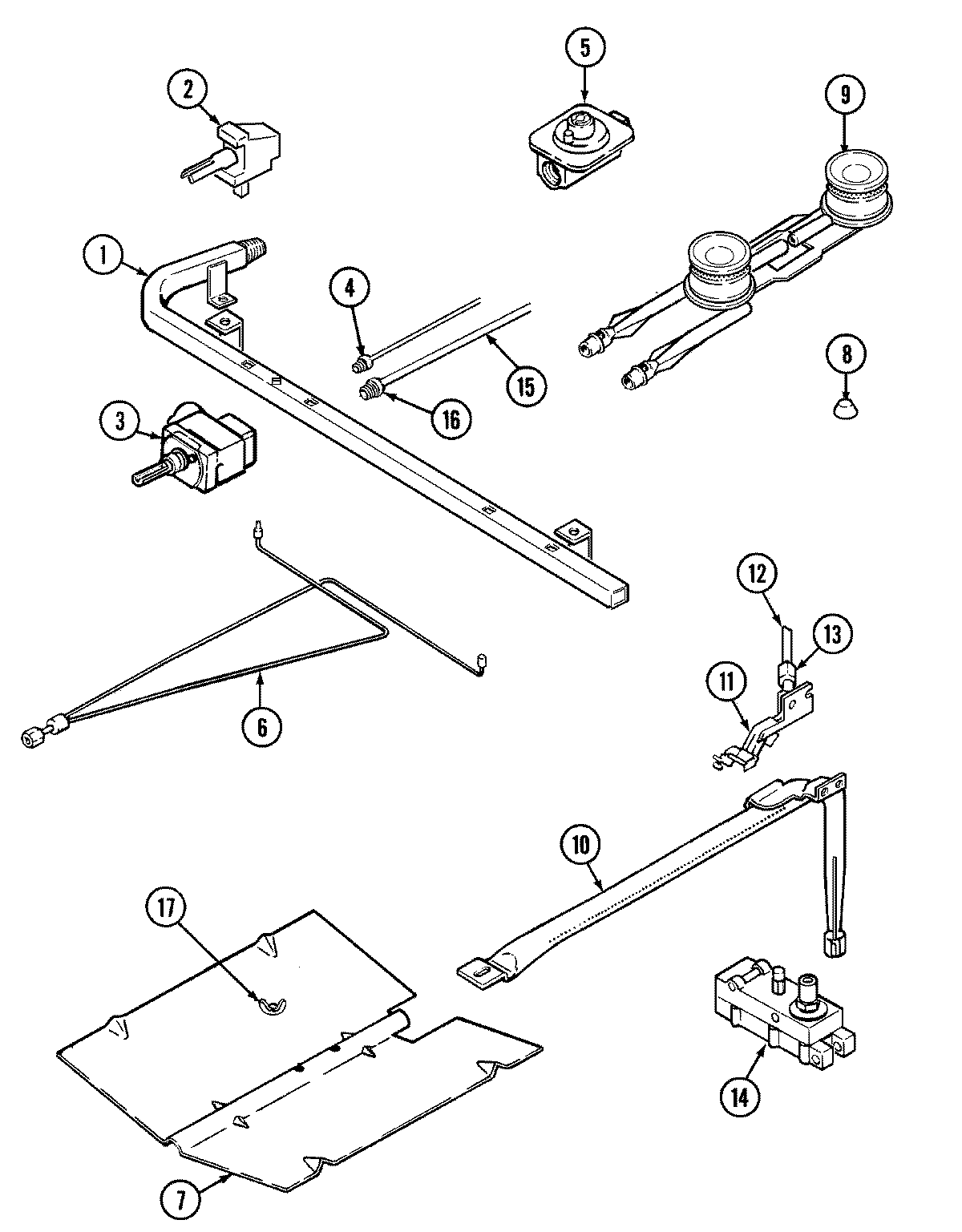

D31100PAAL 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 74002424
2	MAY 74002673
2	MAY 7101P044-60
3	MAY 7101P010-60
3	MAY 74002425
4	MAY 1555222
5	MAY 7510P001-60
6	MAY 74002660
6	MAY 7103P128-60
7	MAY 3601F229-45
8	MAY 74002435
9	MAY 74002392
9	SCREW (8BX3/8-NI)
10	MAY 74002434
10	SCREW
11	MAY 7432P068-60
11	WP4159193 Whirlpool Screw
12	MAY 3414F108-44
13	MAY 1555261K
14	MAY 74002672
14	SCREW No.10 X 2
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
