D3110PRWLT 02 – DOOR/DRAWER (D3110PRxLT) – Aparts

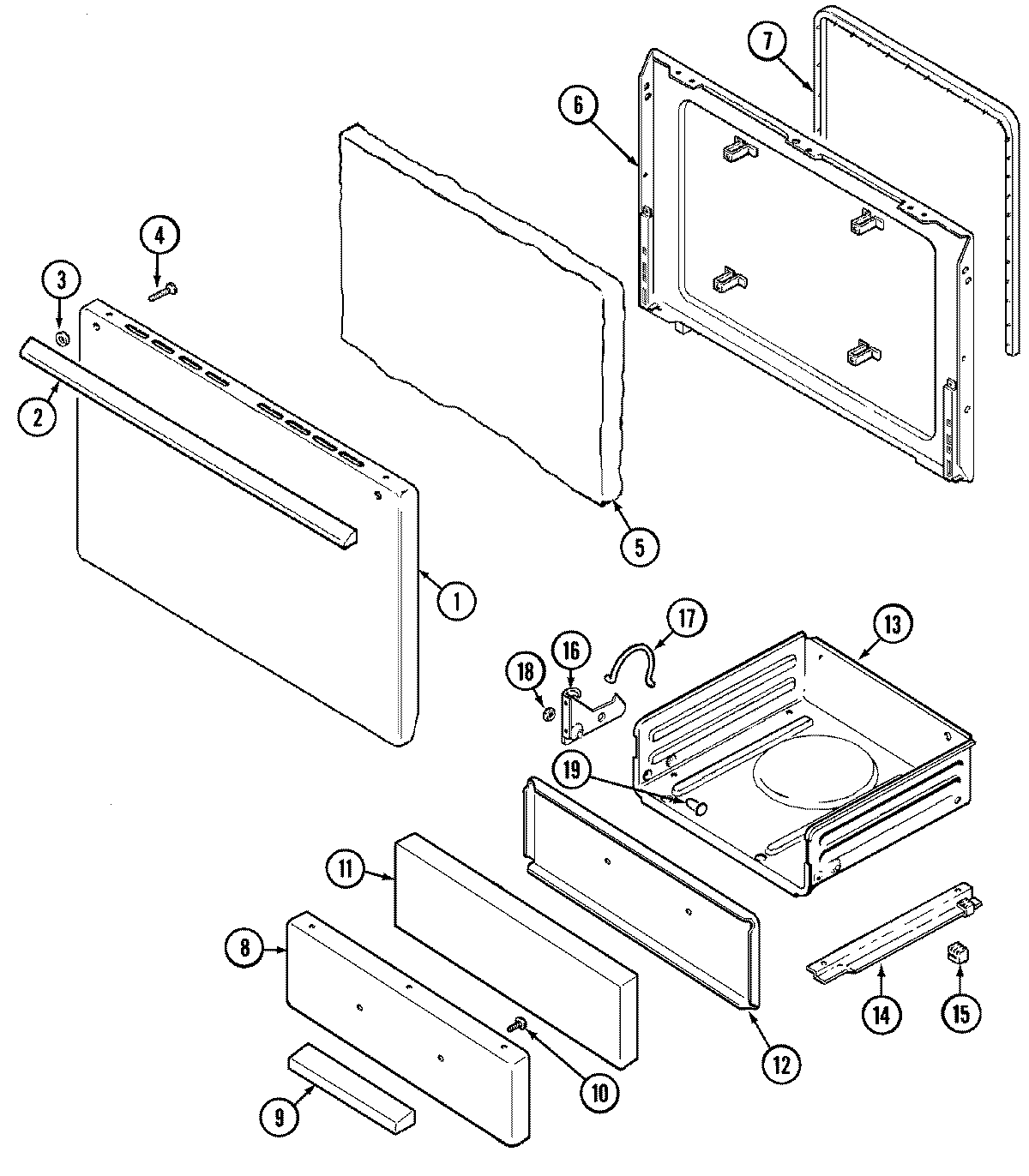

D3110PRWLT 02 – DOOR/DRAWER (D3110PRxLT)

Products

Position	Product
1	PANEL, DOOR (WHT)
2	MAY 7701P030-60
2	WP2411F013-70 Whirlpool Door Handle
3	MAY 8010P084-60
4	MAY 7101P080-60
5	MAY 4804F011-60
6	MAY 7101P290-60
6	MAY 2402W187-19
7	MAY 7212P034-60
8	MAY 2403F028-71
9	MAY 74001820
9	MAY 7701P012-60
10	74002481 Whirlpool Screw
11	MAY 4804F025-60
12	MAY 2404F035-19
13	MAY 3407F012-19
14	MAY 3404F023-51
14	MAY 3404F022-51
15	MAY 8016P011-60
15	MAY 8016P012-60
16	MAY 3418F080-51
16	MAY 3418F079-51
17	MAY 7803P065-60
17	MAY 7803P064-60
18	MAY 7103P022-60
19	MAY 7113P012-60
