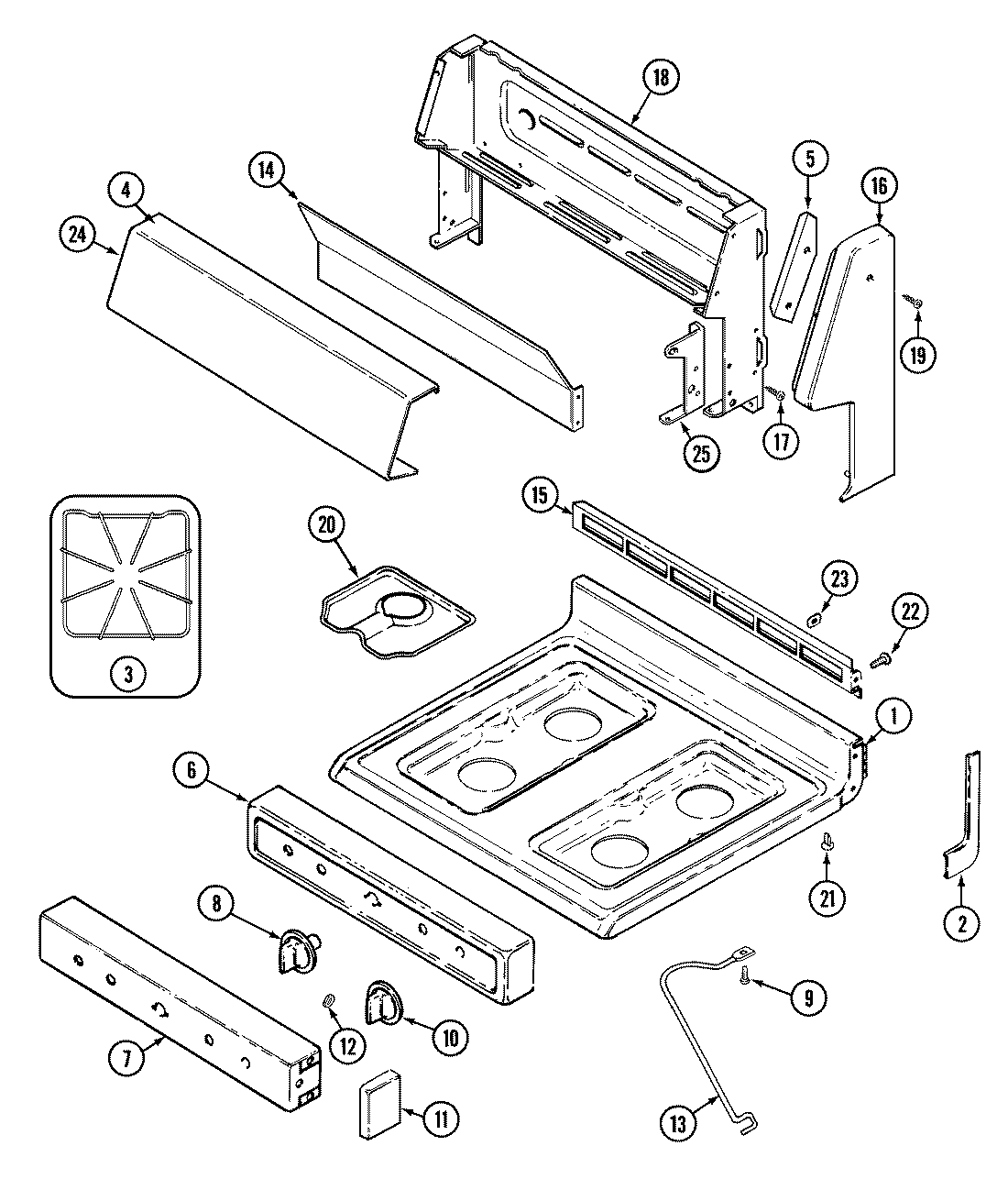

D3110PRWLT 04 – TOP ASSEMBLY/CONTROL PANEL

D3110PRWLT 04 – TOP ASSEMBLY/CONTROL PANEL

Written by

in

D3110PRWLT 04 – TOP ASSEMBLY/CONTROL PANEL

Products

Position	Product
1	MAY 2001W081-81
2	MAY 7746P031-60
2	MAY 7746P030-60
3	MAY 2003W026-00
4	MAY 2601F413-81
4	MAY 7719P071-60
4	MAY 3801F296-51
5	MAY 3807F450-45
5	MAY 3807F449-45
6	MAY 2616F085-09
7	MAY 7109P015-60
7	MAY 7101P074-60
7	MAY 2616F102-09
8	WP74002419 Whirlpool Thermal Knob
9	MAY 7101P280-60
10	WP7711P135-60 Whirlpool Knob
13	MAY 7809P014-60
14	MAY 3604F188-09
15	MAY 3608F042-09
16	MAY 7726P052-60
16	MAY 7726P051-60
17	MAY 7118P015-60
18	MAY 4001F088-51
19	MAY 7101P032-60
20	MAY 5401A433-60
21	MAY 8016P013-60
22	SCREW (10ABX1/4P TR ZN)
23	WP3195558 Whirlpool Nut
