D3120SRALT 01 – BODY/OVEN – Aparts

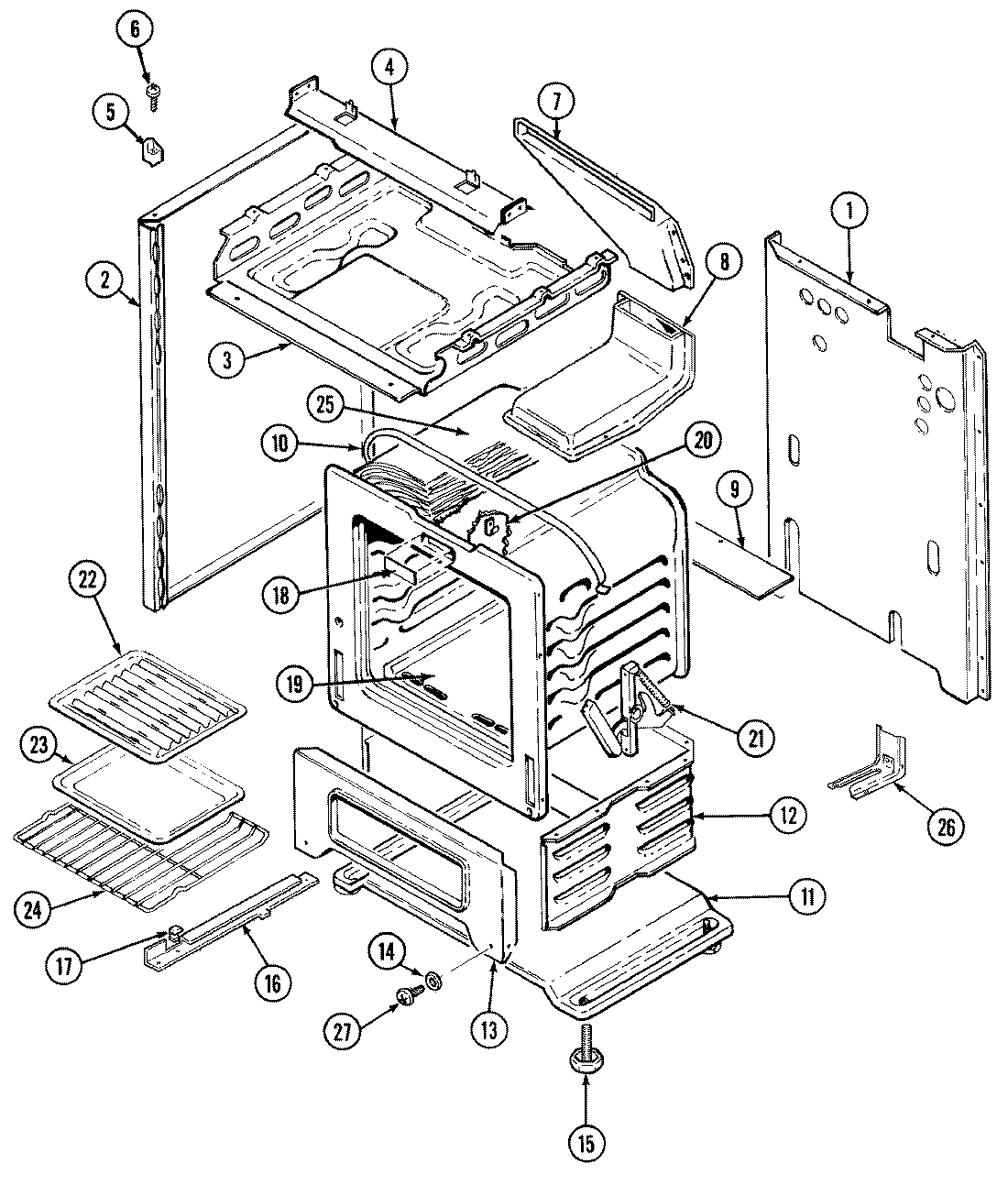

D3120SRALT 01 – BODY/OVEN

Products

Position	Product
1	MAY 4002F138-80
2	MAY 2618F099-74
2	MAY 2618F085-74
3	MAY 4011F209-80
4	MAY 3807F411-51
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4022W005-19
8	MAY 4006W113-45
8	WP74003976 Whirlpool Screw
9	MAY 3807F416-45
10	MAY 4820F001-59
11	MAY 4003W028-80
11	MAY 4003F024-80
12	MAY 4016F044-45
13	MAY 2201F073-19
14	MAY 8004P024-60
15	MAY 7101P306-60
16	MAY 3404F018-51
16	MAY 3404F021-51
17	MAY 8016P010-60
18	MAY 8114P335-60
19	MAY 3804F010-50
19	MAY 3601F229-45
19	MAY 7101P290-60
19	MAY 5504A001-16
20	WP7112P004-60 Whirlpool Thermal Clip
21	SCREW (10-24X5/16-NI)
21	MAY 7106P055-60
22	MAY Y3413F01619
23	MAY Y3401F02019
24	MAY 7801P036-60
25	MAY 4804F017-60
25	MAY 4804F018-60
26	MAY 3801F218-51
27	MAY 7101P300-60
