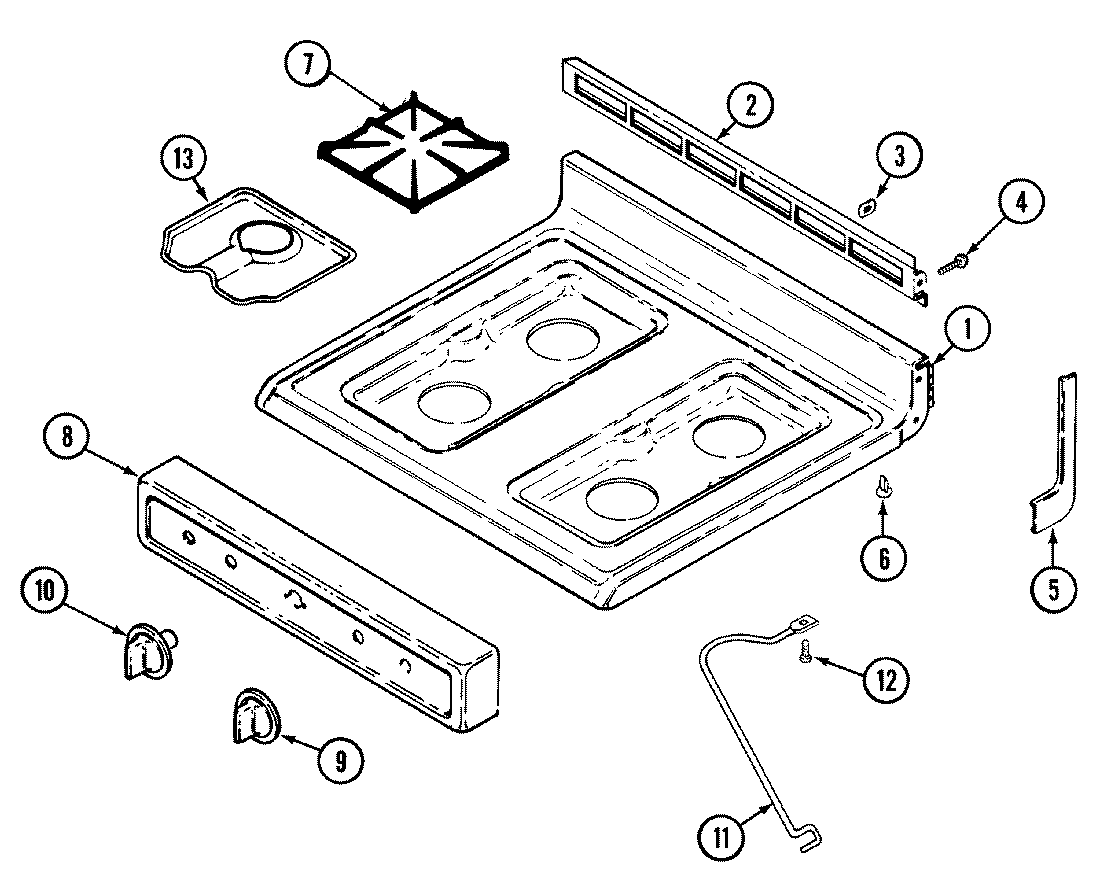

D3121XTWLT 05 – TOP ASSEMBLY

D3121XTWLT 05 – TOP ASSEMBLY

Written by

in

D3121XTWLT 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W081-81
2	MAY 3608F042-09
3	MAY 7103P129-60
4	SCREW (10ABX1/4P TR ZN)
5	MAY 7746P030-60
5	MAY 7746P031-60
6	MAY 8016P013-60
7	MAY 2003W026-00
8	MAY 2616F085-09
8	MAY 7101P311-60
9	WP7711P135-60 Whirlpool Knob
10	MAY 7731P085-60
11	MAY 7809P014-60
12	MAY 7101P141-60
13	MAY 5401A452-60
