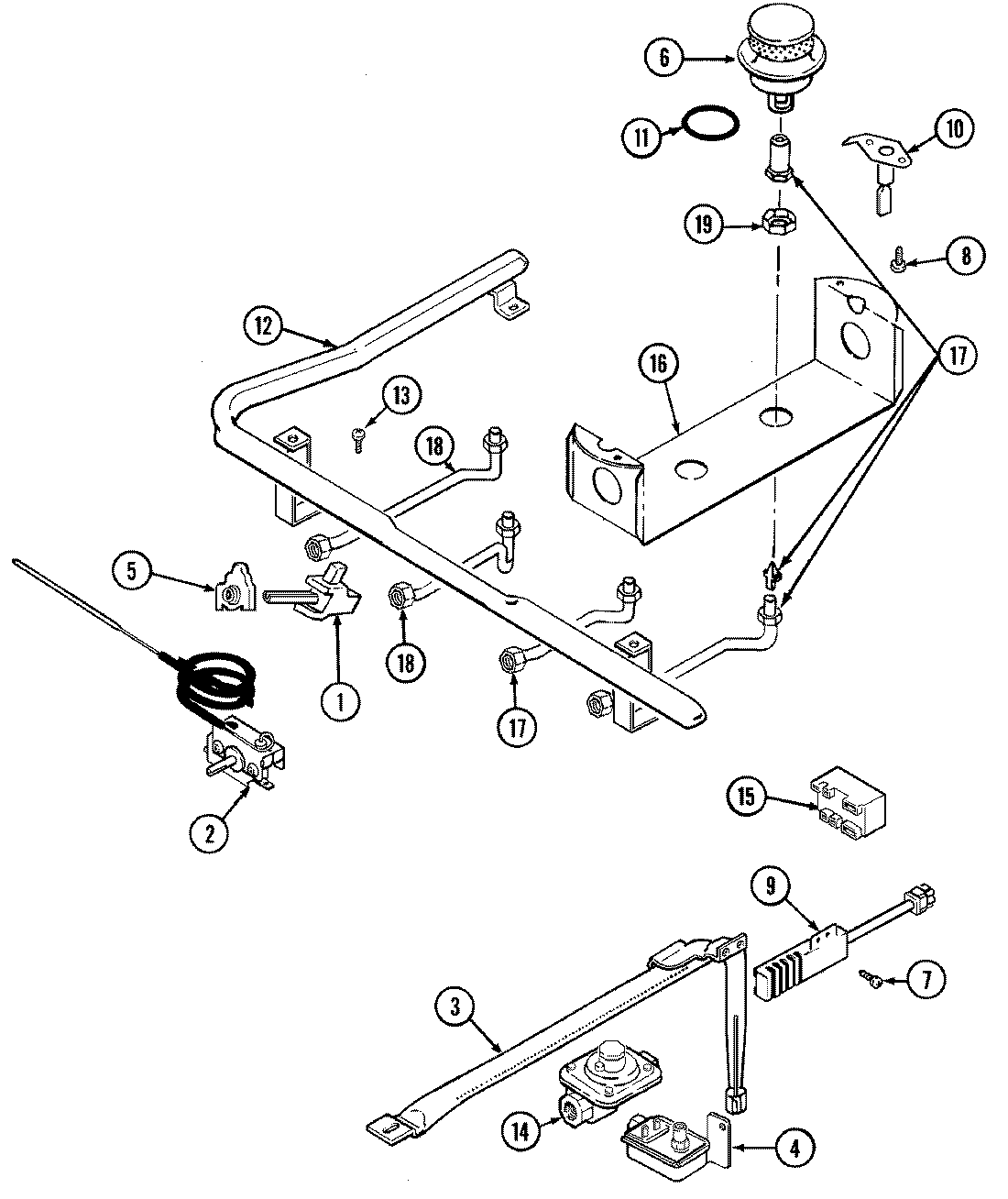

D3167XUALT 05 – GAS CONTROLS (D3167XUxLT)

Products

Position	Product
NI	MAY 5140D038-60
NI	MAY 5195D078-60
NI	MAY 5125A312-60
1	MAY 7502P250-60
2	MAY 7404P087-60
2	MAY 7101P280-60
2	MAY 3604F177-51
3	MAY 3403D023-45
4	MAY 7501P138-60
4	MAY 4005F333-51
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	WP3351614 Whirlpool Screw
8	MAY Y707113
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 7513P120-60
12	MAY 3414F104-44
13	MAY 7101P044-60
14	MAY 7510P068-60
15	MAY 7431P027-60
15	MAY 3807F432-45
16	MAY 3807F444-45
17	MAY 7507P120-60
18	MAY 7507P118-60
19	MAY 7103P119-60
