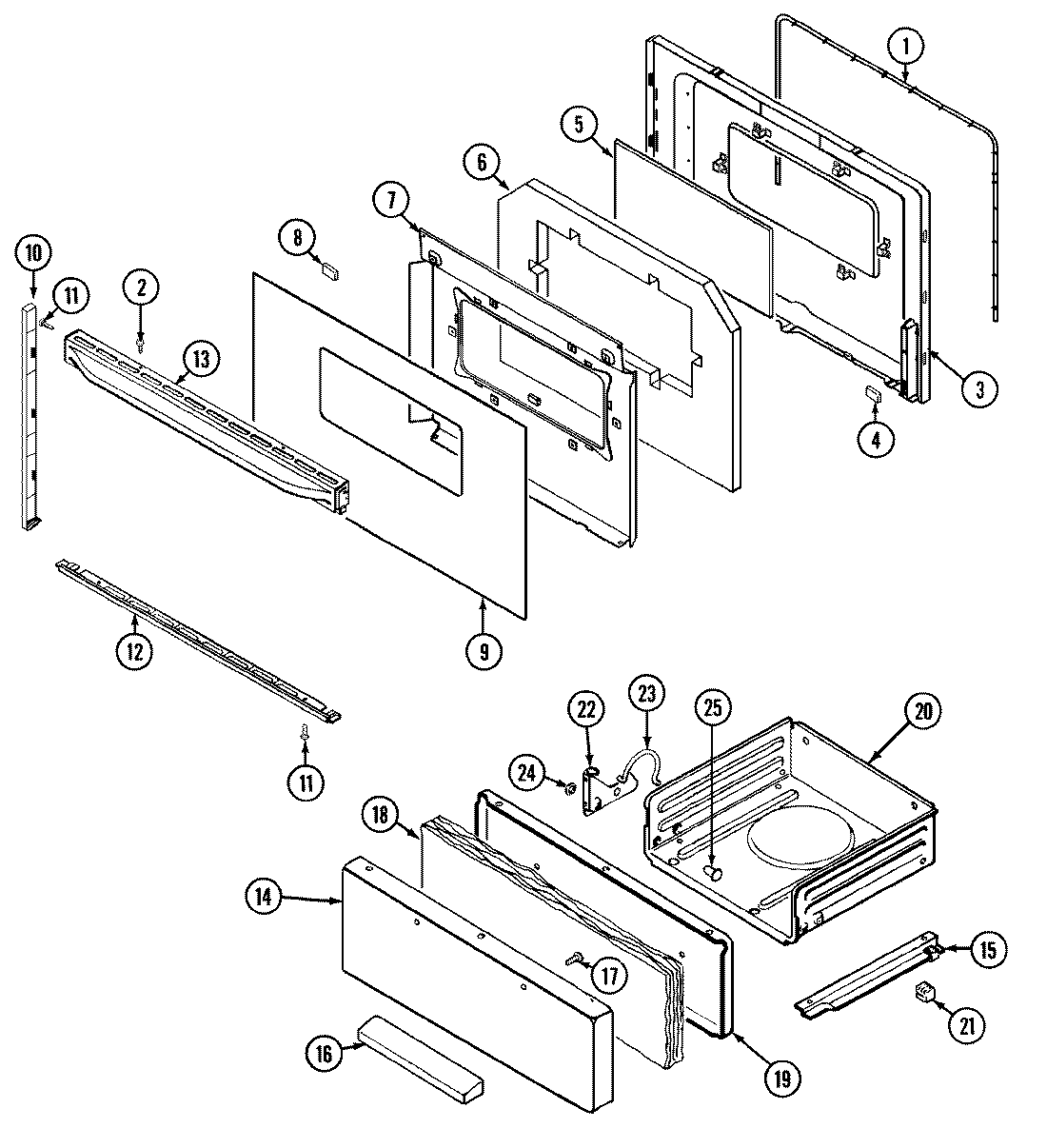

D3167XVALT 03 – DOOR/DRAWER

Products

Position	Product
1	WP7212P043-60 Whirlpool Oven Door Seal Gasket
2	WP98008545 Whirlpool Screw
3	MAY 2402W213-19
4	MAY 8010P085-60
5	MAY 7902P319-60
6	MAY 7002P158-60
7	MAY 7101P209-60
7	MAY 3601F240-80
8	MAY 8270P095-60
9	MAY 7902P321-60
10	MAY 7744P055-60
12	MAY 7744P105-60
13	MAY 7701P144-60
14	MAY 2403F028-64
15	MAY 3404F023-51
15	MAY 3404F022-51
16	MAY 7701P012-60
16	MAY 74001820
17	74002481 Whirlpool Screw
18	MAY 4804F025-60
19	MAY 2404F035-19
20	MAY 3407F012-19
21	MAY 8016P011-60
21	MAY 8016P015-60
22	MAY 3418F080-51
22	MAY 3418F079-51
22	SCREW
23	MAY 7803P064-60
23	MAY 7803P065-60
24	MAY 7103P022-60
25	MAY 7113P012-60
