D3167XVWLT 05 – OVEN/BASE – Aparts

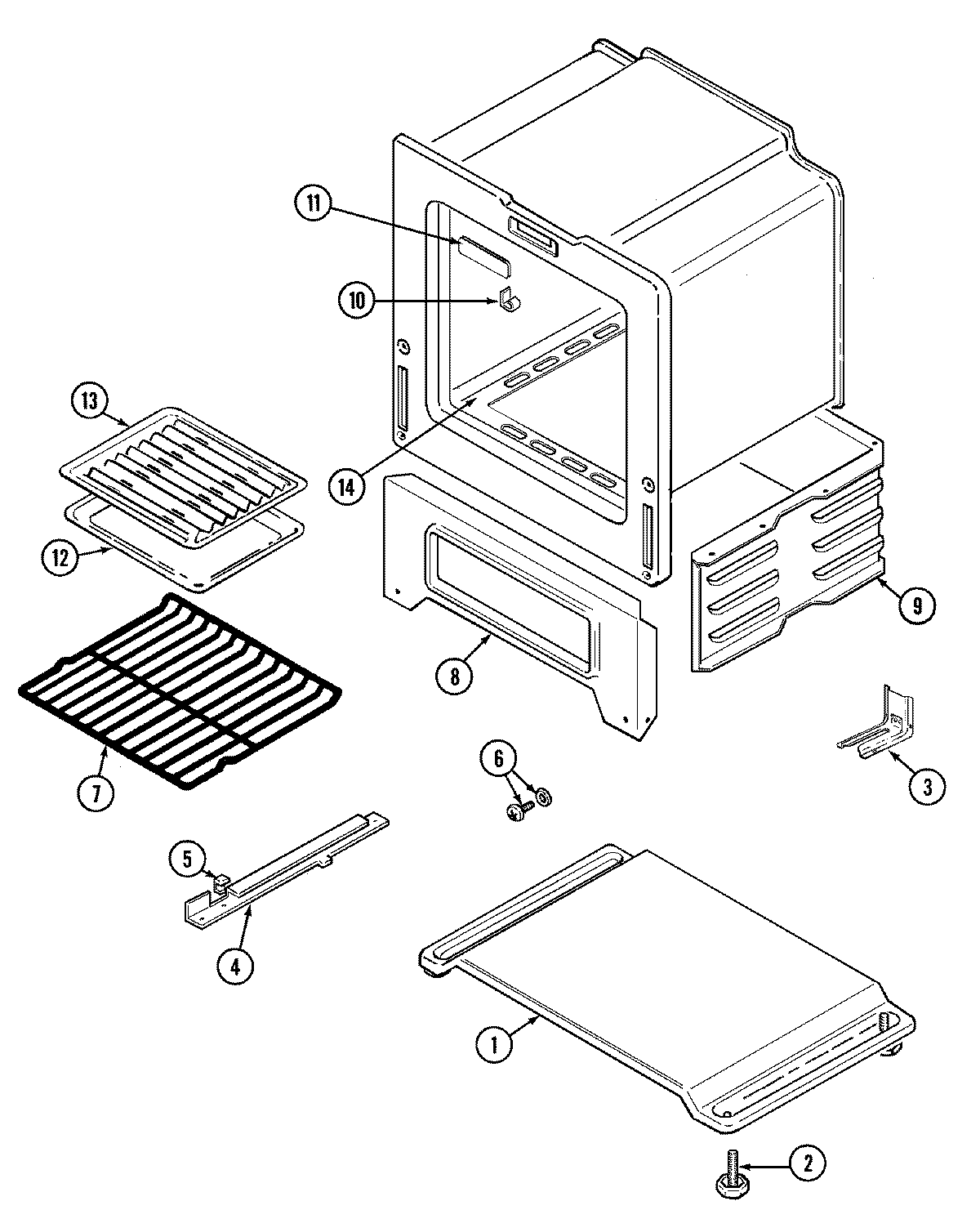

D3167XVWLT 05 – OVEN/BASE

Products

Position	Product
1	MAY 4003W029-80
2	MAY 74001311
3	MAY 7101P344-60
3	MAY 3801F218-51
4	MAY 3404F021-51
4	MAY 3404F018-51
5	MAY 8016P010-60
6	WP74003976 Whirlpool Screw
7	MAY 7801P047-60
8	MAY 2201F077-19
9	MAY 4016F044-45
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 7718P013-60
12	MAY Y3401F02019
13	MAY Y3413F01619
14	SCREW
14	MAY 5504A003-19
14	MAY 3601F239-47
