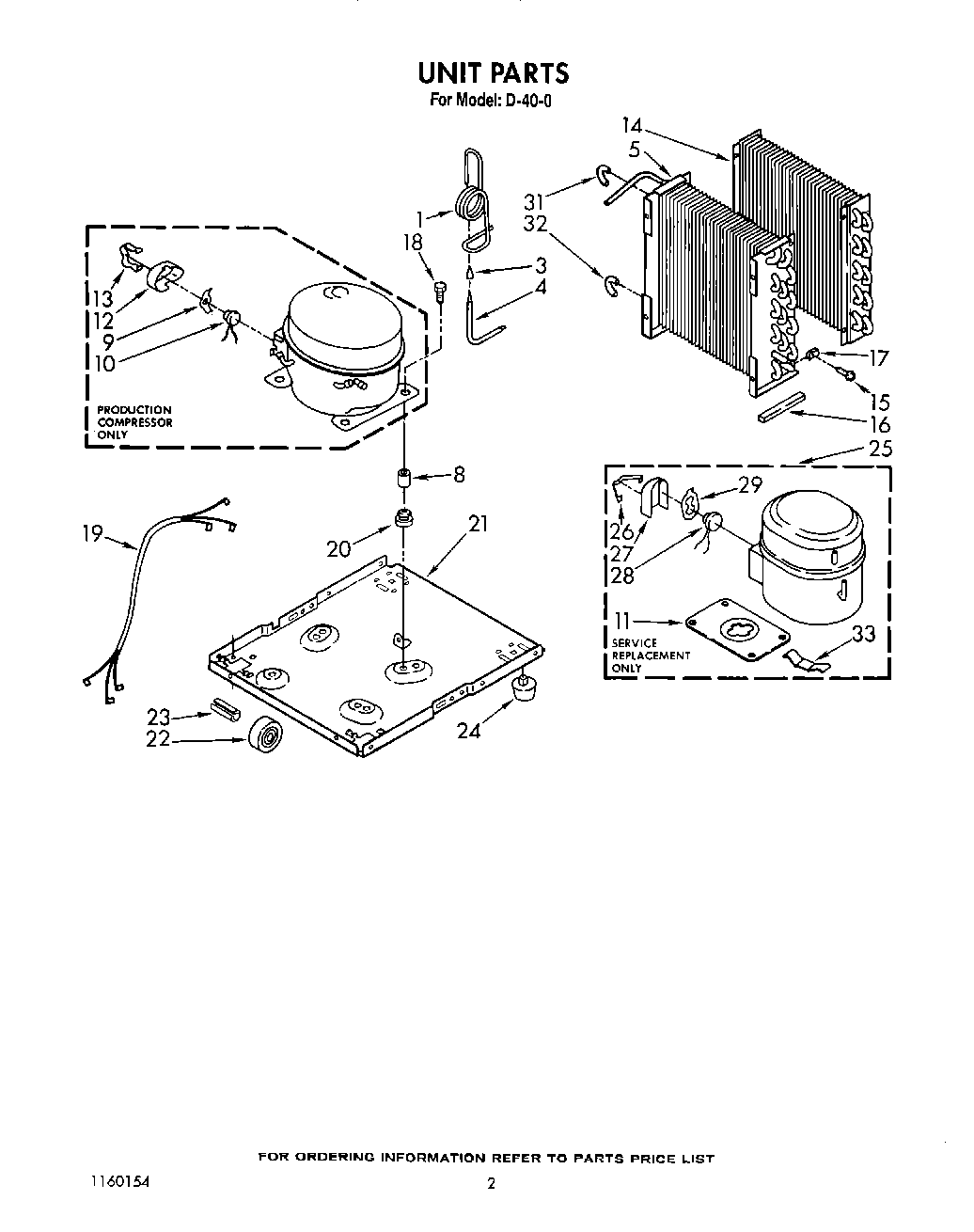

D400 02 – SECTION
Written by
in
D400 02 – SECTION
Products
Position
Product
1
Tube, Restrictor (46.0“ Length)
3
Strainer
4
WPL 951349
5
Condenser
8
Sleeve (4)
9
Spring, Overload
10
Overload, Protector
11
Plate, Compressor
12
Cover, Terminal
13
Retainer, Cover
14
WPL 1159233
15
Screw, 8 x 3/8
16
Seal
17
488660 Whirlpool Refrigerator Nut
18
Screw, 1/4-28 x 1“ (4)
19
Harness, Wiring
20
Grommet (4)
21
Base
22
Roller (2)
23
Pin, Roller (2)
24
Glide (2)
25
Compressor, Service (Complete Assembly)
26
Retainer, Terminal Cover
27
Cover, Terminal
28
WPL 643295
29
Spring, Overload
31
WP855199 Whirlpool Bend Return
32
WPL 1155631
33
Spring, Clip
←
ZISS480DXBSS FREEZER SHELVES
ZISS480DRESS FRESH FOOD SECTION
→
