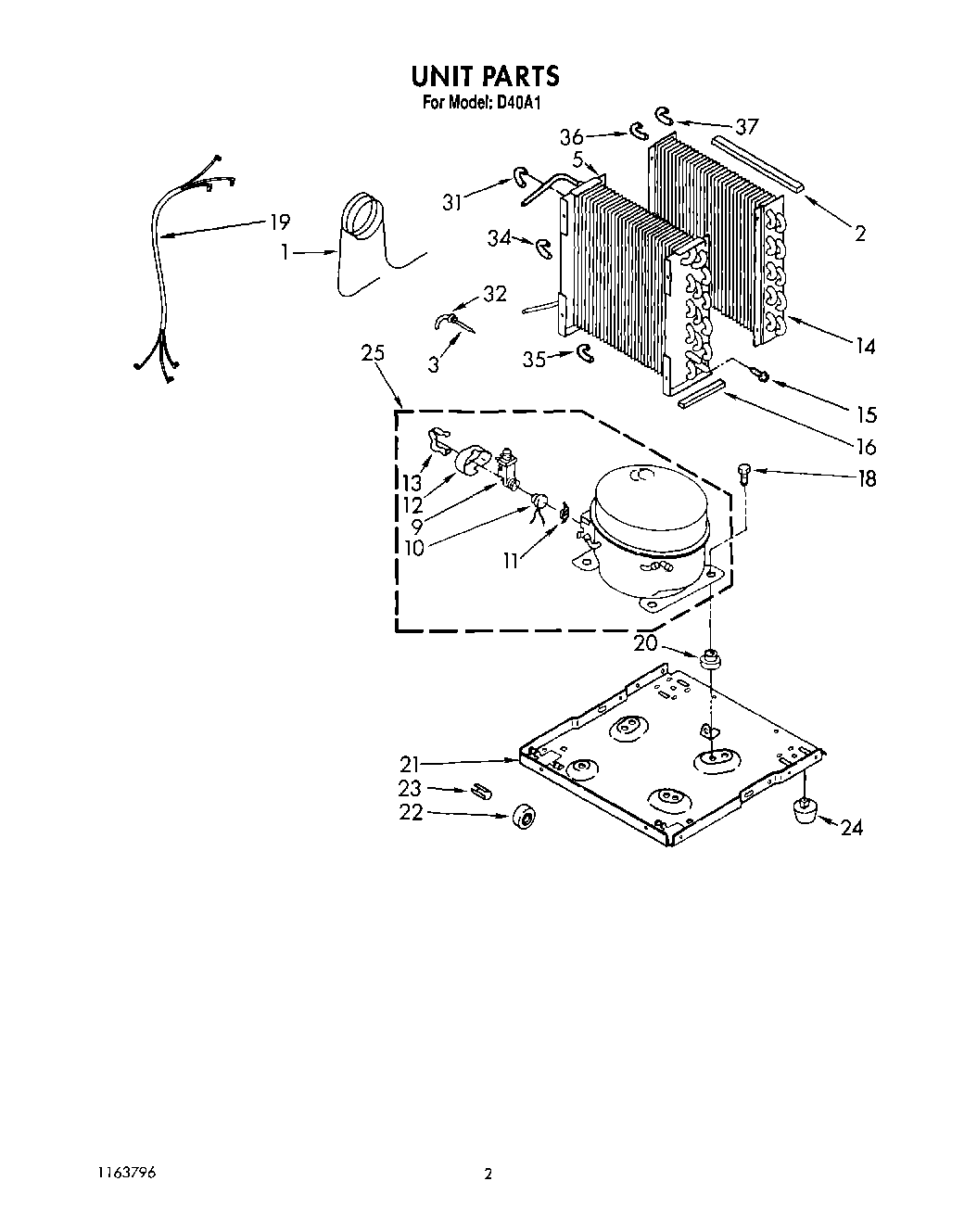

D40A1 02 – UNIT

Products

Position	Product
1	Tube, Restrictor (Length 36.00“)
2	Seal, Evaporator Top
3	WP1162526 Whirlpool Air Conditioner Strainer
5	Condenser
9	Relay, Start (Service)
9	Relay, Start (Production)
10	Overload (Production)
10	Overload (Service)
11	Spring, Overload
12	Cover, Terminal (Production)
12	WPL 865086
13	Strap
13	Retainer, Cover (Service)
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor, Service (Complete Assembly)
31	Bend, Return Condenser (1)
32	Bend, Return Condenser (4)
34	Bend, Return Condenser (10)
35	Bend Return
36	Bend, Return Evaporator (11)
37	Bend, Return Evaporator (4)
