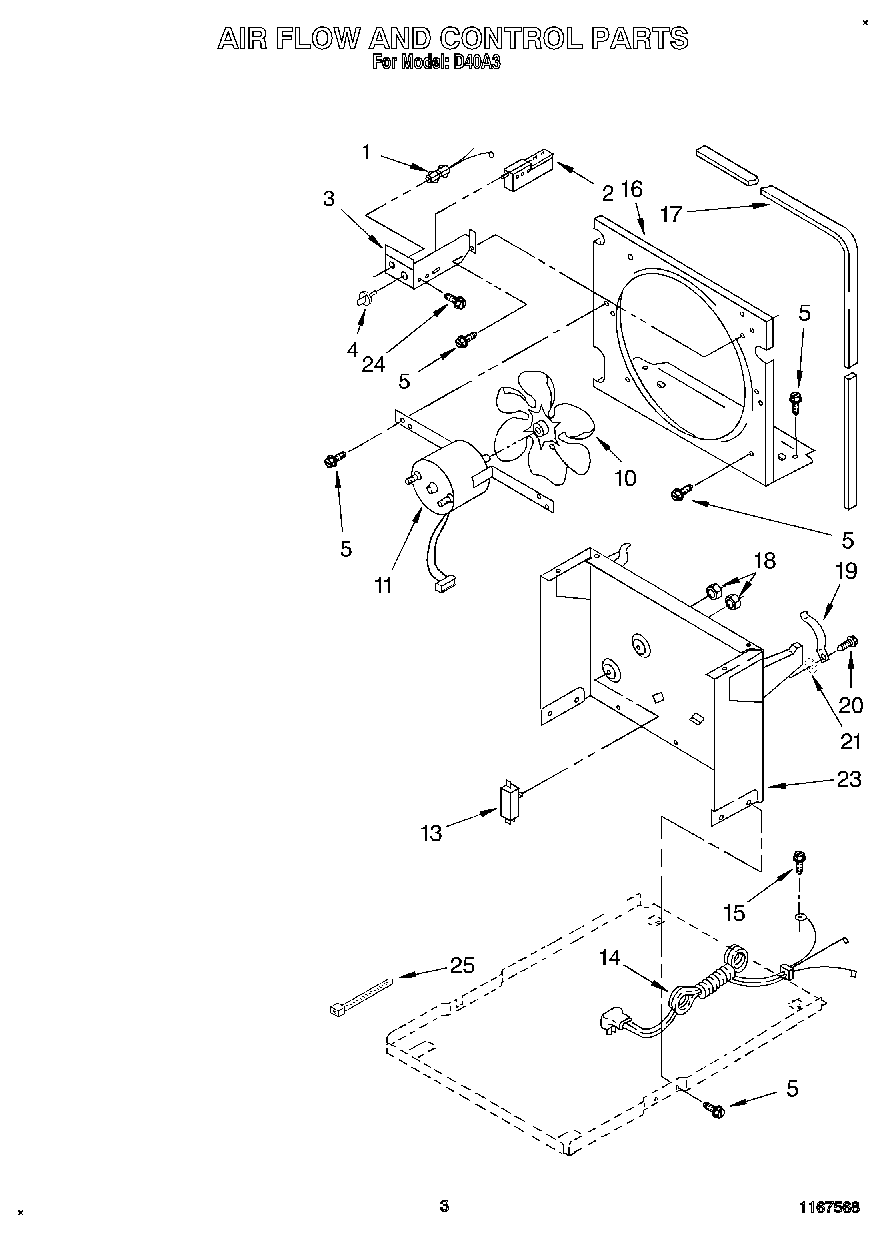

D40A3 03 – AIRFLOW AND CONTROL

Products

PositionProduct
1Light, Indicator
2WPL 1166055
3Bracket, Humidistat
4WPL 1162670
5WP489069 Whirlpool Compactor Screw
10Blade, Fan
11Motor, Fan
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16WPL 1166838
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20Screw 8-18 x 5/8
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
