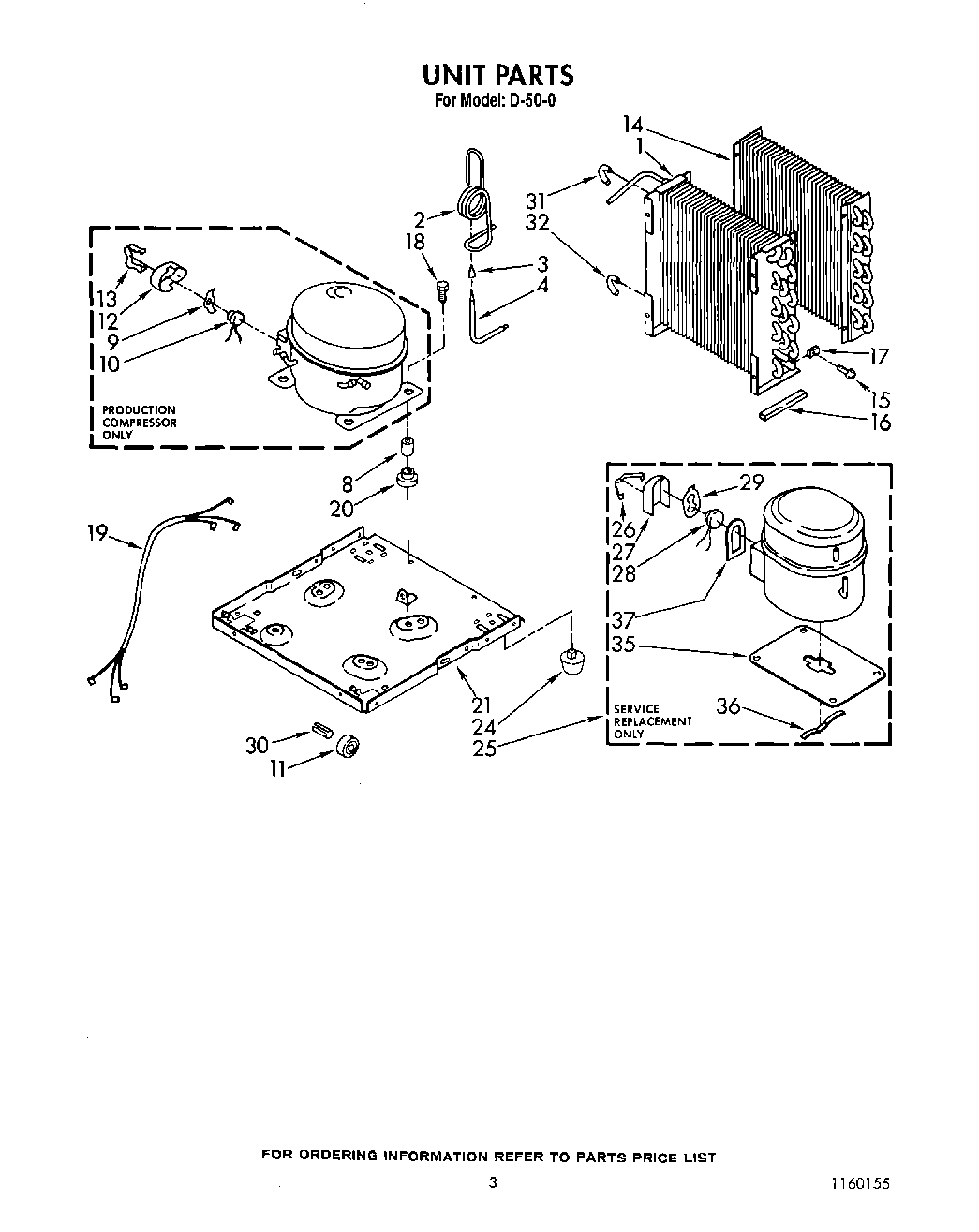

| 1 | Condenser |
| 2 | Tube, Restrictor (46.0`` Length) |
| 3 | Strainer |
| 4 | WPL 951349 |
| 8 | Sleeve (4) |
| 9 | Spring, Overload |
| 10 | Overload (Production) |
| 11 | Roller (2) |
| 12 | Cover, Terminal |
| 13 | Retainer, Cover |
| 14 | WPL 1159235 |
| 15 | Screw, 8 x 3/8 |
| 16 | Seal |
| 17 | 488660 Whirlpool Refrigerator Nut |
| 18 | Screw, 1/4-28 x 1`` (4) |
| 19 | Harness, Wiring |
| 20 | Grommet (4) |
| 21 | Base |
| 24 | Glide (2) |
| 25 | Compressor, Service (Complete Assembly) |
| 26 | Retainer, Cover |
| 27 | Cover, Terminal |
| 28 | Overload |
| 29 | Spring, Overload |
| 30 | Pin, Roller (2) |
| 31 | Bend, Return Evaporator (11) |
| 32 | Bend, Return Evaporator (4) |
| 35 | Plate, Compressor |
| 36 | Spring, Clip |
| 37 | PTC Clamp |
| 37 | PTC Start Device |
| 37 | Wire Assy. (2) |
| 37 | Gasket, Cover |
| 37 | WP489069 Whirlpool Compactor Screw |
