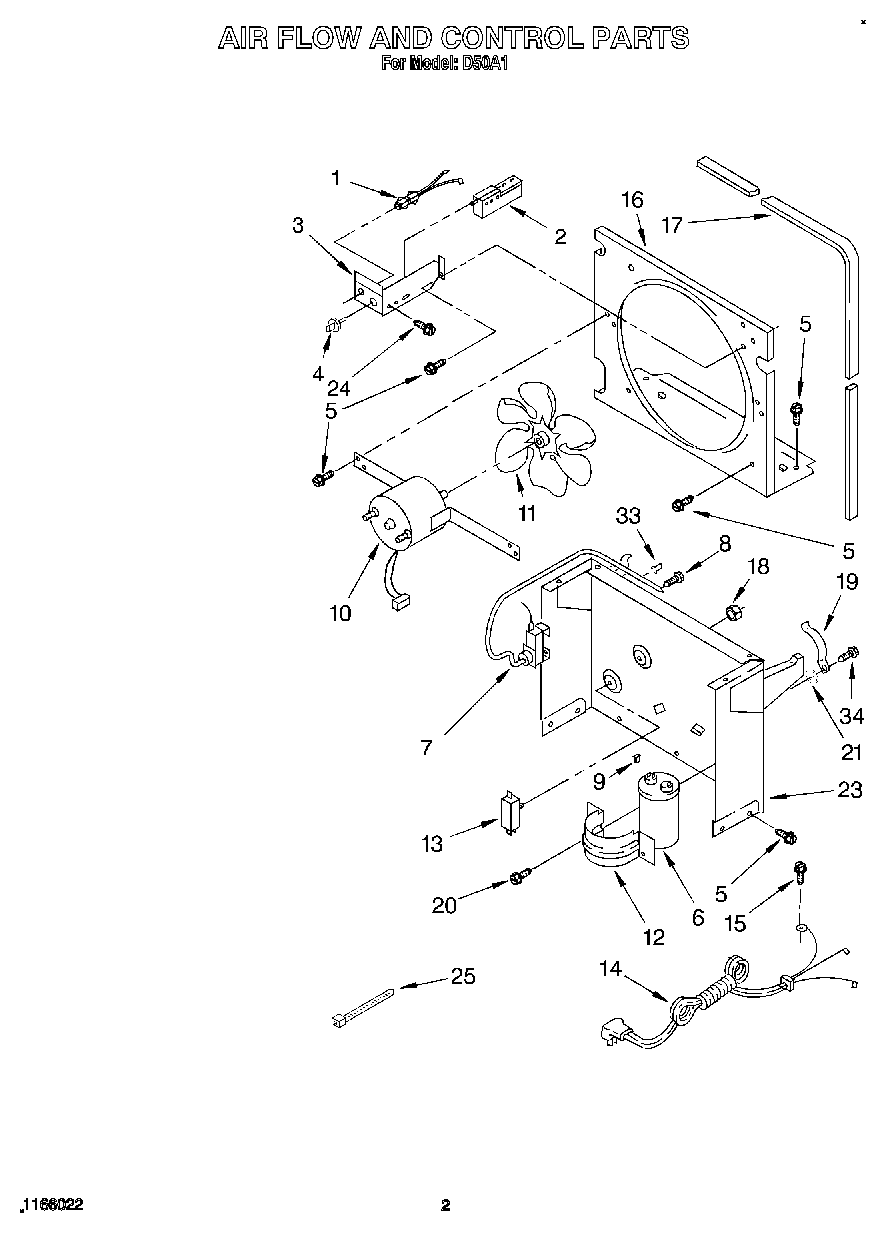

D50A1 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Humidistat
4	WPL 1162670
6	WPL 1162586
7	WPL 1164779
8	WP488234 Whirlpool Air Conditioner Screw
9	WPL 1159258
10	Motor, Fan
11	Blade, Fan
12	WPL 1163801
13	Switch, Water Level Control
14	Cord, Appliance
15	WPW10141604 Whirlpool Screw
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP489069 Whirlpool Compactor Screw
21	Washer (Repair) (.091 Thickness)
21	Washer, Repair (.045 Thickness)
21	Washer (Repair) (.062 Thickness)
23	Support
24	WP3177991 Whirlpool Screw
25	WPW10339879 Whirlpool Wire Tie
33	Clamp, Tube To Evaporator Mtg (2)
34	WP488163 Whirlpool Refrigerator Screw
