D5257^2 02 – CONTROL PANEL

D5257^2 02 – CONTROL PANEL

Written by

in

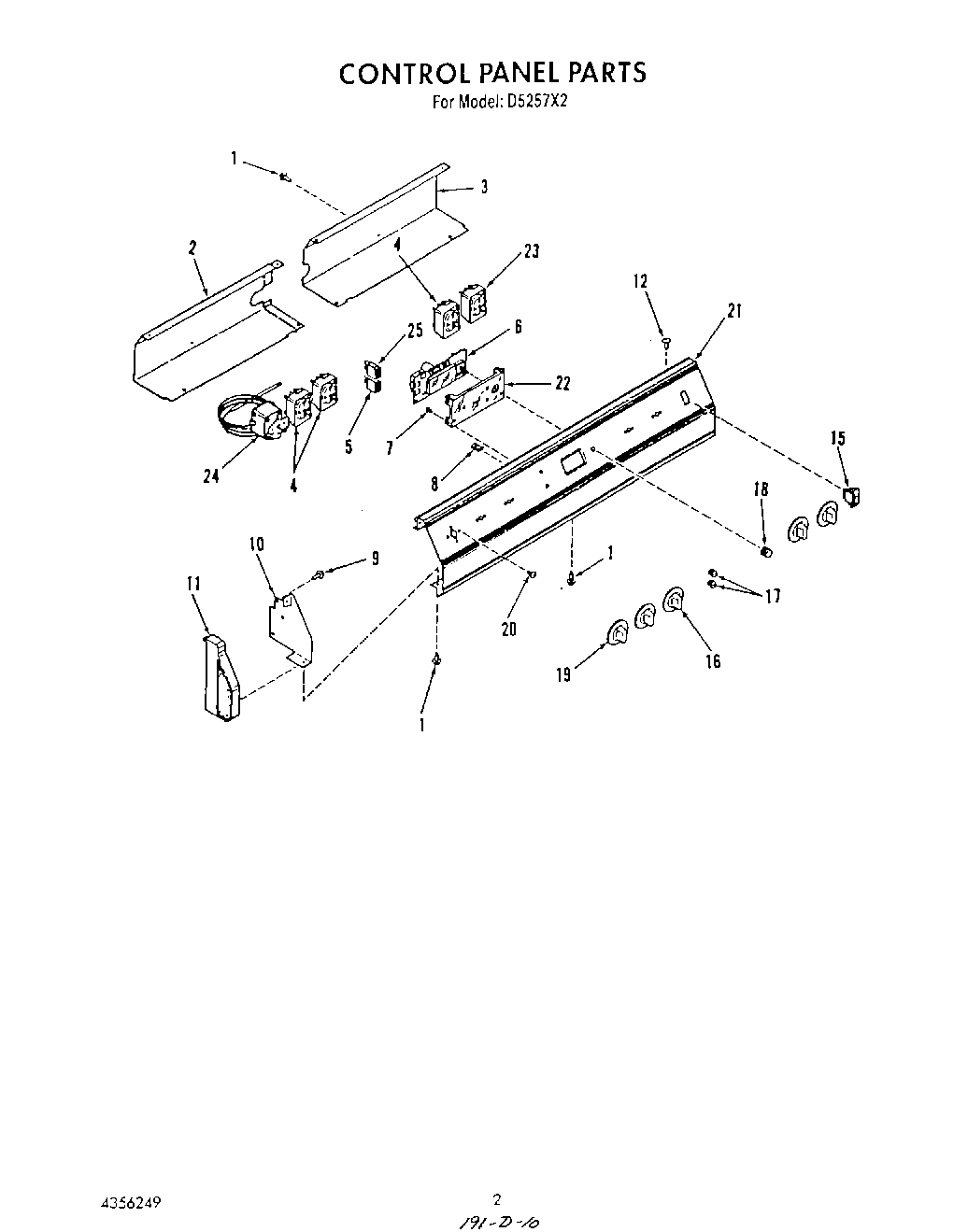

D5257^2 02 – CONTROL PANEL

Products

PositionProduct
2Wire Cover, Left
3Wire Cover, Right
4W10900107 Whirlpool Oven Surface Element Switch
5Indicator Light (Oven Unit)
6Clock
7Screw
8Nut, Speed No.10-32
9W10850756 Whirlpool Screw
10Bracket-End Cap (Left)
10Bracket-End Cap (Right)
11End Cap (Right)
11End Cap (Left)
15WP4314961 Whirlpool Lite Switch
16Knob, Infinite Control (4)
17WP9750343 Whirlpool Light Lens
18Knob, Clock
19Knob, Thermostat
20Screw
21Control Panel
22Lens, Clock
24Thermostat
25Use & Care Manual
25Repair Parts List
25Indicator Light, (Surface Unit)
25Installation Instructions
