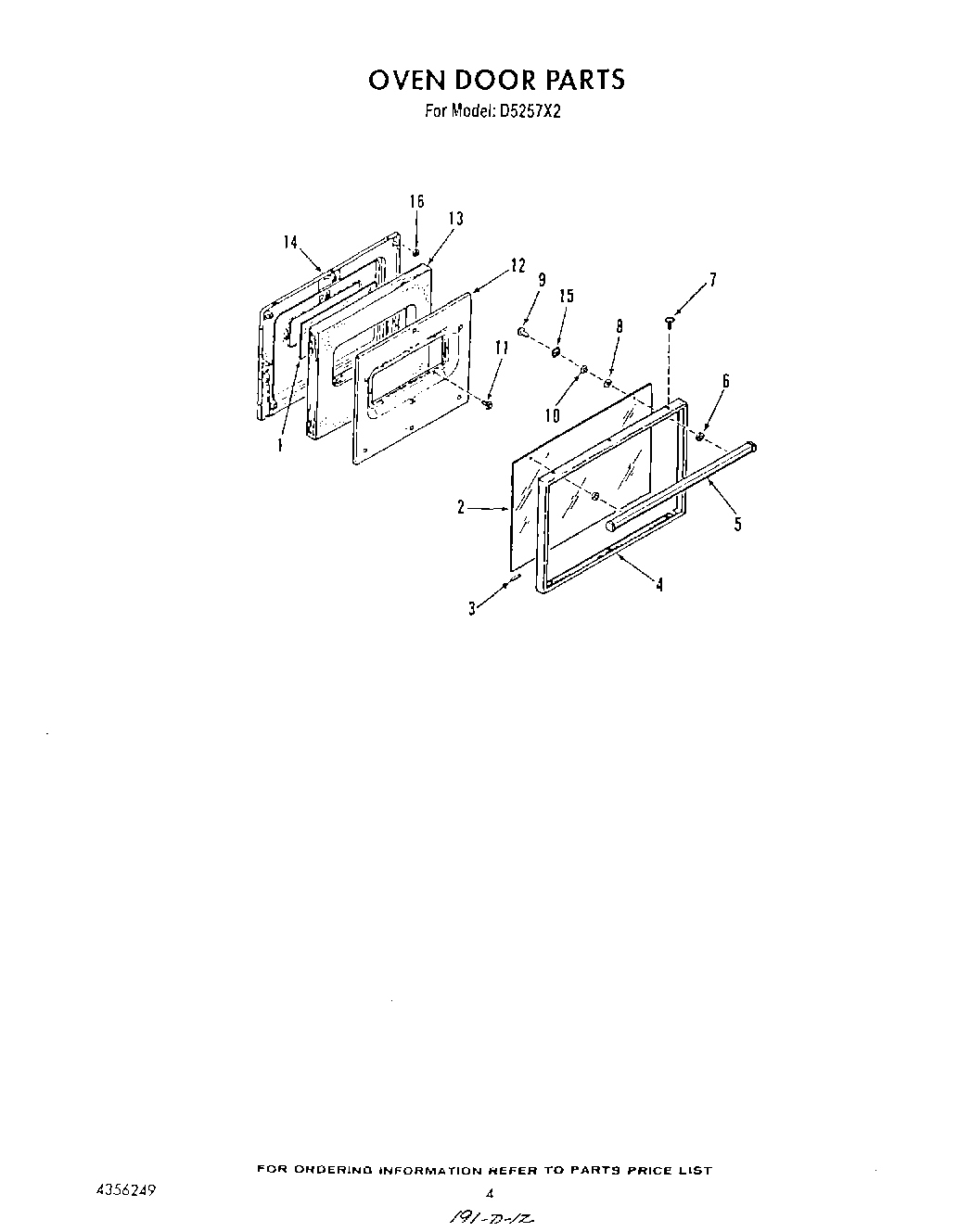

D5257^2 04 – OVEN DOOR

Products

Position	Product
1	Glass, Inner
2	Glass, Outer
3	Cushion
4	Frame
5	Handle, Door
6	Spacer, Dr. Handle
7	Screw No.10-32×1/2
8	Washer, Fiber
9	Screw, No.10-32 x 3/4
10	Spacer, Glass Door
11	Screw, No.10-32×17/32“
12	Retainer
13	Insulation
14	Liner, Inner Door
15	Retainer
16	Washer, Felt
