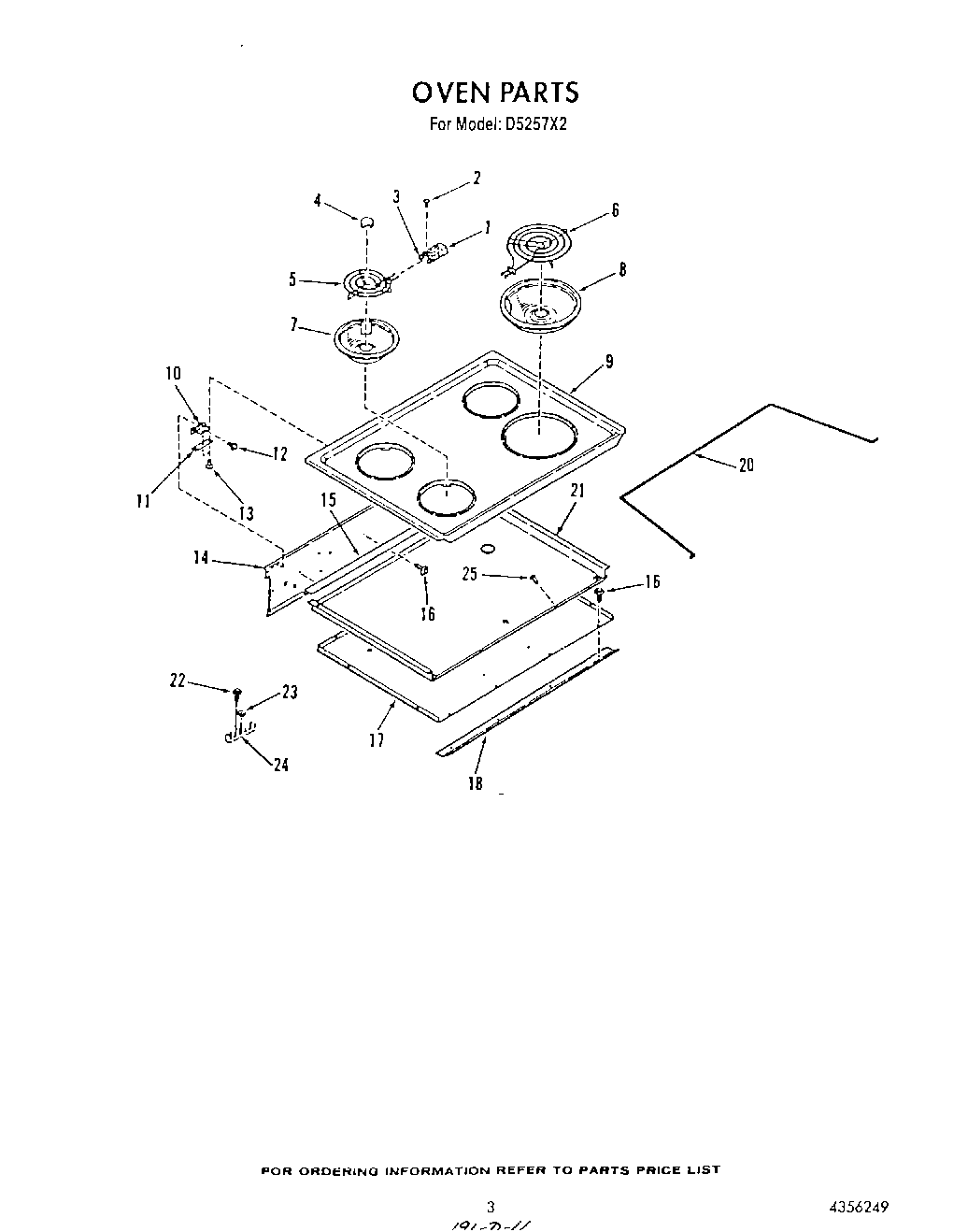

D5257X2 03 – OVEN

D5257X2 03 – OVEN

Written by

in

D5257X2 03 – OVEN

Products

PositionProduct
1BURNER RECEPTACLE KIT
2Screw
3WP4332752 Whirlpool Clip
4Medallion
5WPY04100165 Whirlpool Surface Element
6WP660533 Whirlpool Oven 8" Surface Element
7WPW10196406 Whirlpool 6" Chrome Drip Bowl
8DRIP BOWL 8" W/HOLE CHROME
9Chrome Cooktop
10Hinge (Lt or Rt)
11Bracket, Mounting-Hinge (Lt or Rt)
12Screw, No.10-32 x 5/16
13Screw No.6-32×3/16“
14Cover, Wire
15Shield, Rear Wire
16W10850756 Whirlpool Screw
17Bottom, Burner Box
18Extension, Burner Box
20Support Rod, Main Top
21Top, Burner Box
22Screw, No.10-32×1
23WP776338 Whirlpool Compactor Nut
24WP8203546 Whirlpool Terminal Block
