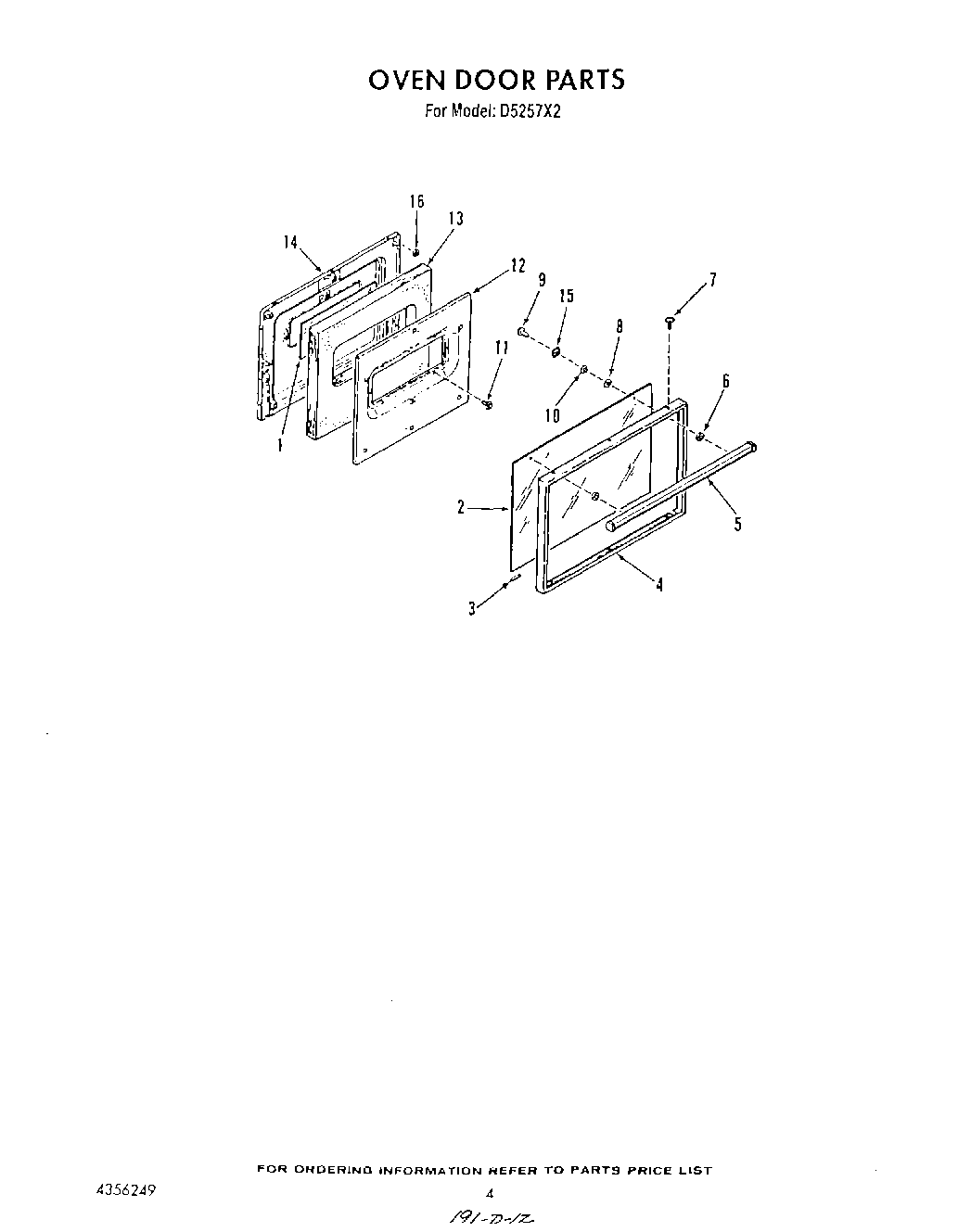

D5257X2 04 – OVEN DOOR
Written by
in
D5257X2 04 – OVEN DOOR
Products
Position
Product
1
Glass, Inner
2
Glass, Outer
3
Cushion
4
Frame
5
Handle, Door
6
Spacer, Dr. Handle
7
Screw No.10-32×1/2
8
Washer, Fiber
9
Screw, No.10-32 x 3/4
10
Spacer, Glass Door
11
Screw, No.10-32×17/32“
12
Retainer
13
Insulation
14
Liner, Inner Door
15
Retainer
16
Washer, Felt
←
