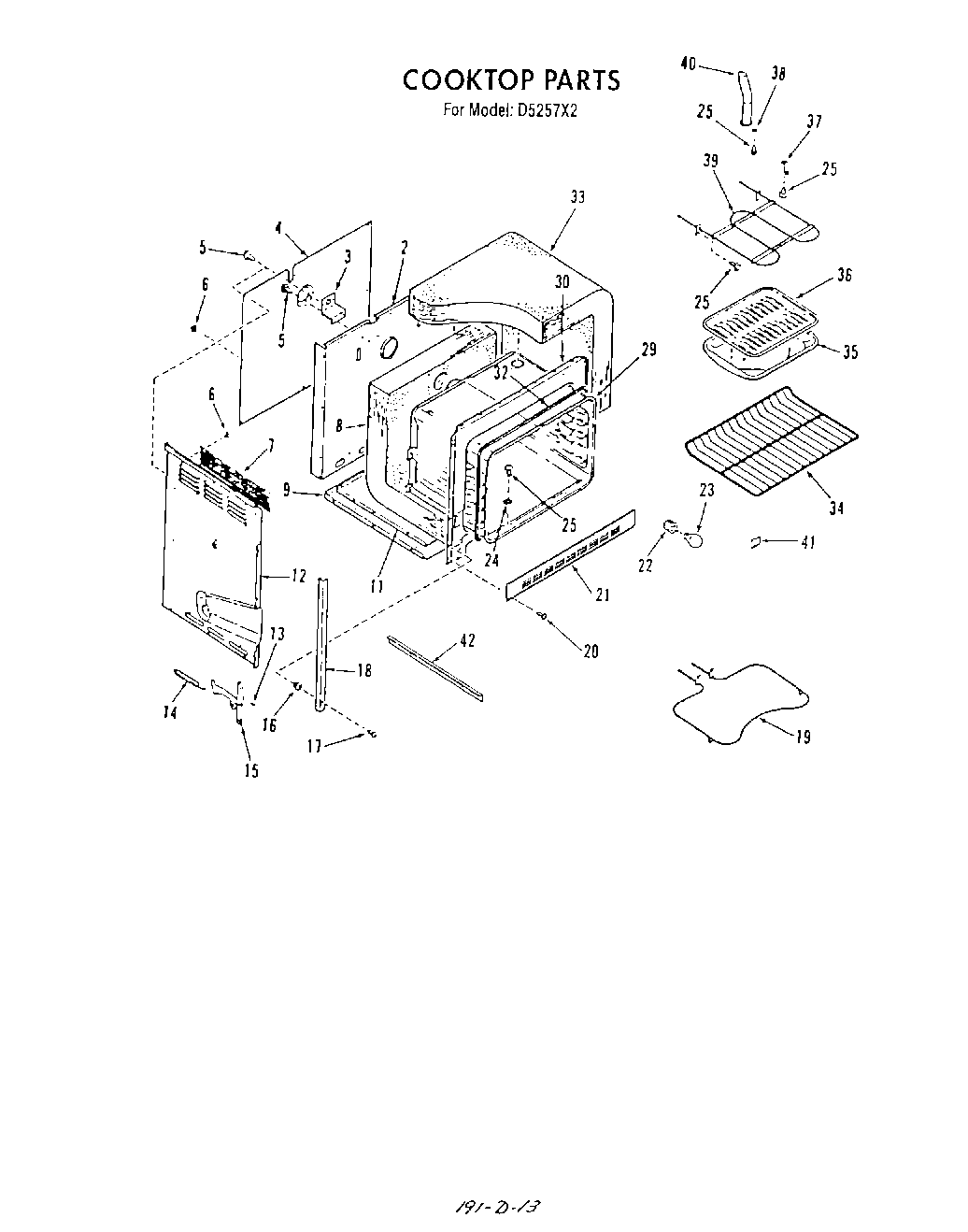

D5257X2 05 – COOK TOP

D5257X2 05 – COOK TOP

Written by

in

D5257X2 05 – COOK TOP

Products

PositionProduct
1Back, Main
3Mounting Bracket Conduit
4Wire Cover
5W10850756 Whirlpool Screw
6Clip
7Screen, Burner Box
8Insulation, Back And Bottom
9Bottom, Main
11Retainer, Bottom Insulation
12Retainer, Insulation (Left Side)
12Retainer, Insulation (Right Side)
13Screw
14Spring, Oven Door
15Hinge, Oven Door (Right)
15Hinge, Oven Door (Left)
16Spacer, Expansion
17W11693756 Whirlpool Screw Assembly
18Side Trim (Left)
18Side Trim (Right)
19Bake Element (240 Volt)
19Bake Element (208 Volt (Opt))
20Screw No.10-32×1/2
21Trim, Bottom
22W10856866 Whirlpool Light Socket
23RANGE ONLY 40W 120V APPL BULB
24Washer
25Screw, No.10-32 x 17/32
29Oven Cavity
30Frame, Front
32Seal, Oven Door
33Insulation, Wrap
34Rack, Oven (2)
364396923 Whirlpool Broil Pan Set Gray Porcelain
37Support, Broil Element
38Washer
39Broil Element (240 Volt)
39Broil Element (208 Volt (Opt))
40Vent Tube
41Plug, Button
42Trim-Bottom Burner Box (Lt or Rt)
