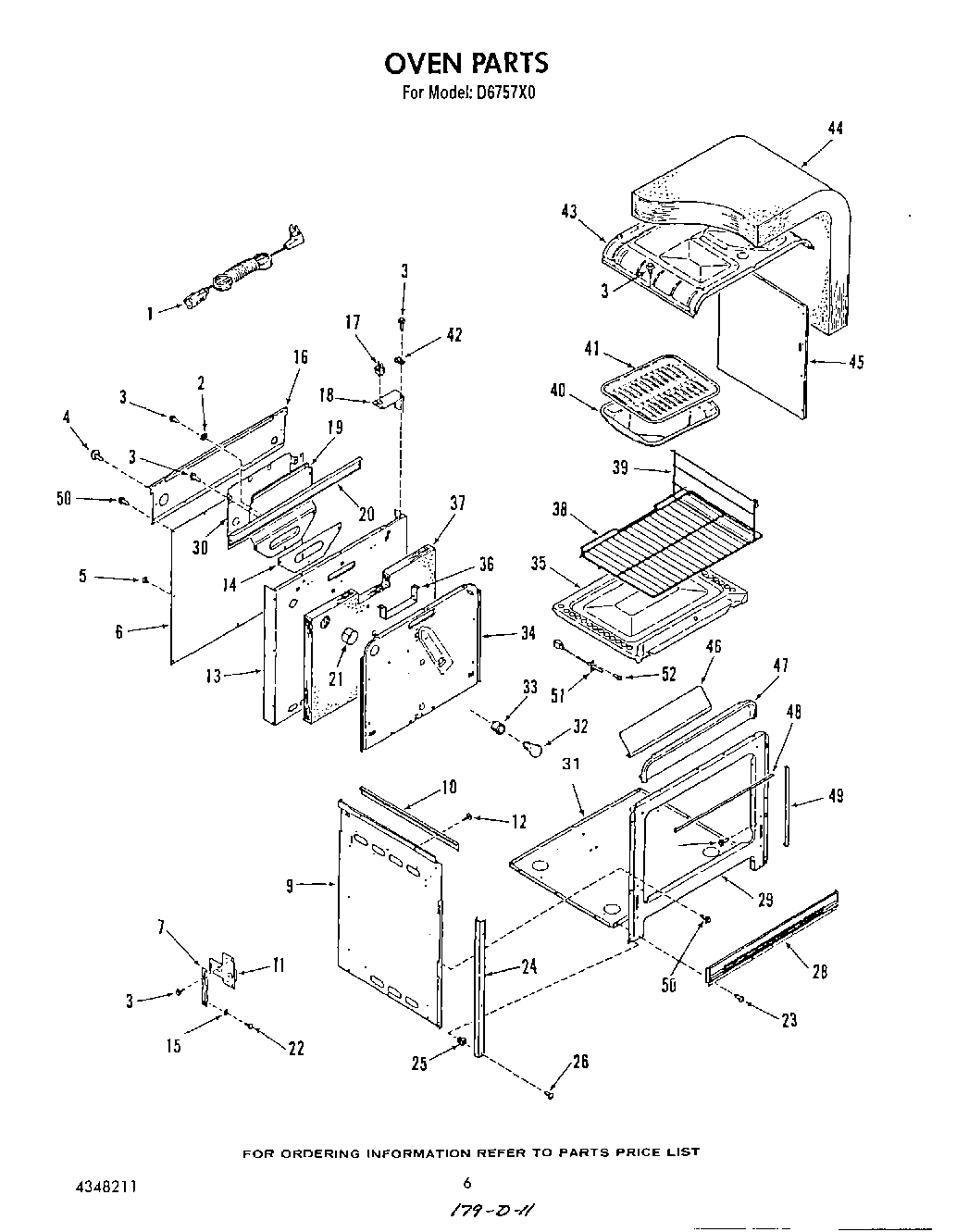

D6757^0 05 – OVEN

Products

Position	Product
1	Service Cord
2	Lockwasher
4	Screw No.10-32×1/4
5	Clip
6	Wire Cover-Rear
7	Hinge, Lt or Rt
9	Retainer, Insulat. (Right)
9	Retainer, Insulat. (Left)
10	Trim-Bottom Burner Box (Lt or Rt)
11	Hinge Box Assembly Lt/Rt
12	Screw, No.10 x 1
13	Cover, Back
14	Seal-Deflector
15	Washer
16	Cover, Wire
17	Disconnect
18	Bracket
19	Deflector, Flue
20	Support, Flue
21	Retainer, Insul.-Oven Light
22	Screw, No.10-32 x 17/32
23	Screw No.10-32×1/2
24	Trim, Side (Right)
24	Trim, Side (Left)
25	Nut-Expansion (6)
26	Screw No.8×5/8
28	Trim, Bottom
29	Frame, Front
30	Shield, Deflector
31	Bottom, Main
32	RANGE ONLY 40W 120V APPL BULB
33	W10856866 Whirlpool Light Socket
34	Back, Oven
35	Bottom, Oven
36	Retainer, Insul.
37	Insulation, Back
38	Rack, Oven (2)
39	Guide, Oven Rack (Left)
39	Guide, Oven Rack (Right)
41	4396923 Whirlpool Broil Pan Set Gray Porcelain
42	Clip (For No.1)
43	Top, Oven
44	Insulation-Top & Sides
45	Side, Oven (Right)
45	Side, Oven (Left)
46	Shield, Heat
47	Panel-Broil Front
48	Seal-Oven Door Top
49	Seal-Oven Dr. Side (Rt or Lt)
50	W10850756 Whirlpool Screw
51	Sensor
52	Screw
