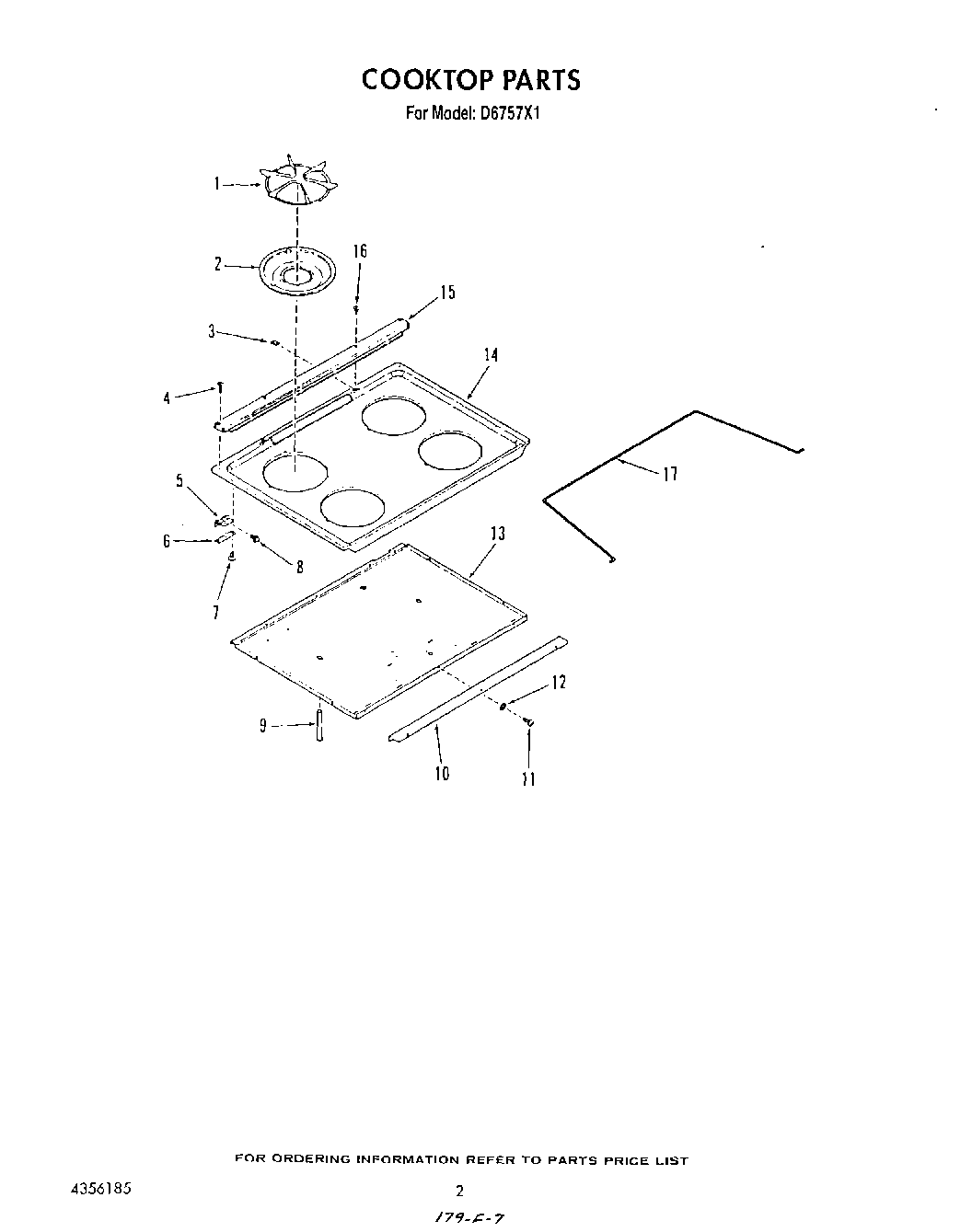

| 1 | Grate, Burner (4) |
| 2 | Pan, Aeration (4) |
| 3 | Nut, Speed No.6-32 |
| 4 | Screw No.6-32x7/8`` |
| 5 | Hinge (Lt or Rt) |
| 6 | Bracket, Mounting-Hinge (Lt or Rt) |
| 7 | Screw No.6-32x3/16`` |
| 8 | W10850756 Whirlpool Screw |
| 9 | Raceway (Lt or Rt) |
| 10 | Extension-Bottom Burner Box |
| 11 | Screw, No.10-32 x 17/32 |
| 12 | Washer |
| 13 | Bottom-Burner Box |
| 14 | Cooktop |
| 15 | Trim |
| 16 | Screw No.6-32x1/2 |
| 17 | Support-Cooktop |
