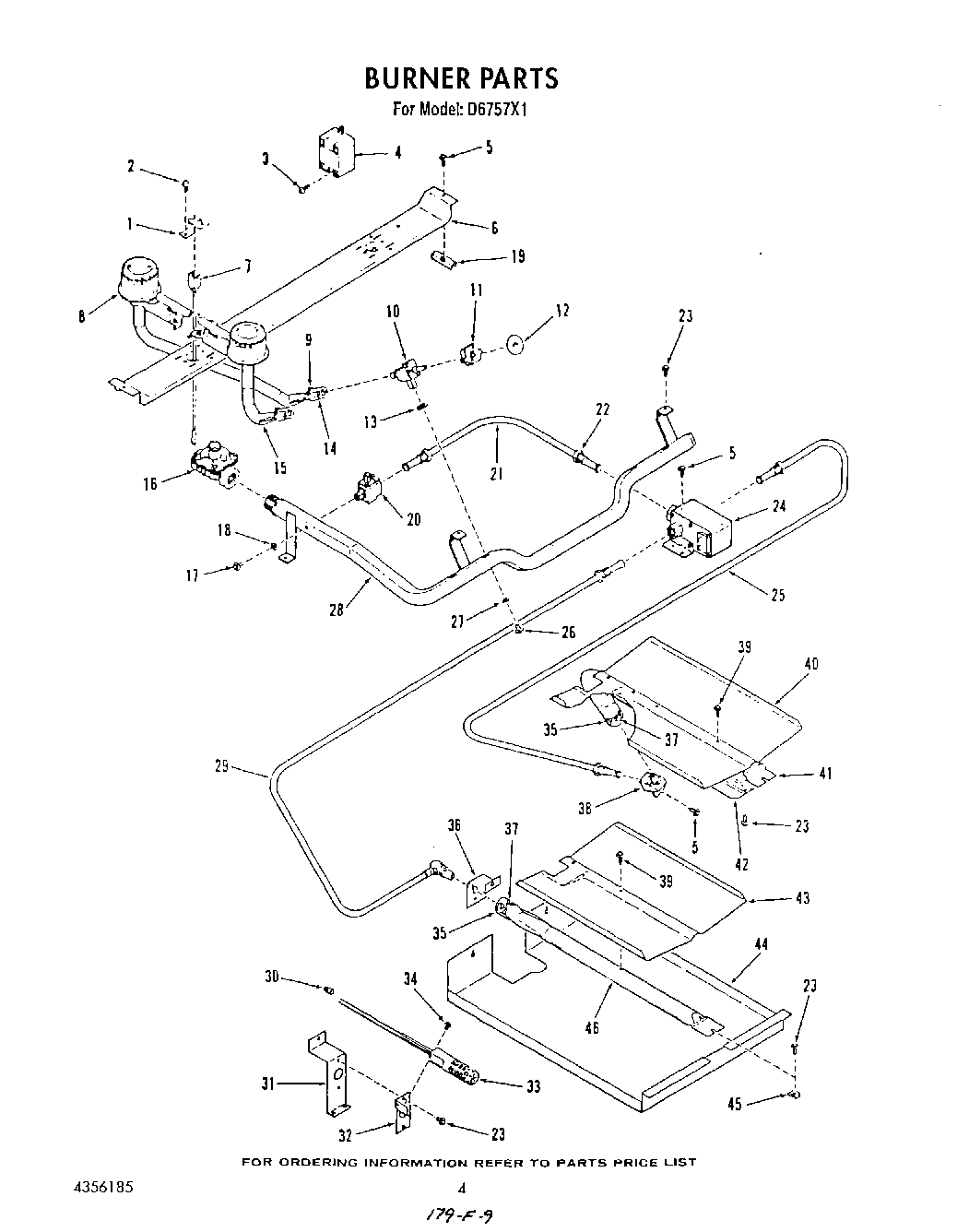

D6757^1 04 – BURNER

Products

Position	Product
1	Bracket-Ignitor (Lt or Rt)
3	Screw No.6-32×3/8
4	Module-Spark
5	W10850756 Whirlpool Screw
6	Support-Top Burner
7	Electrode-Igniter (Left)
7	Electrode-Igniter (Right)
8	Burner, Rear Top (Lt or Rt)
9	Screw-Adjustment, (Air Shutter)
10	Valve, Gas (4)
11	WP4330739 Whirlpool Igniter Switch
12	Shield-Gas Valve (4)
13	Seal, Valve-1 ea. Illus. 10 & 20
14	Shutter, Air
15	Burner, Top Front
16	Regulator-Pressure
19	Spacer, Support
20	Valve, Shut Off
21	Tubing 3/8“ (Shut-Off valve to Control Valve
22	Nut, Inverted 3/8
23	Screw, No.10-32 x 17/32
24	Valve, Control
25	Tubing 3/8“(Valve-Broiler Burner)
26	Screw, Mounting-1 Each-illus. 10 & 20
27	Seal (for No.26)
28	Manifold Pipe
29	Tubing 3/8“ W/Orifice Valve/Oven Burner
30	WP4323866 Whirlpool Connector
31	Bracket, Mounting
32	Bracket, Igniter
33	Ignitor-Bake/Broil
34	Screw No.10-32×1/4
35	Shutter, Air
36	Bracket-Orifice Fitting/Ov. Burner
37	Screw, Adjustment-Air Shutter
38	Fitting-Orifice/-Broiler Burner
39	WP489128 Whirlpool Refrigerator Screw
41	Burner, Broil (Inc`s No.40 & No.42)
42	Baffle/Lower-Broil
43	Baffle-Oven Burner
44	Baffle-Oven Burner
45	Nut, Speed No.10-32
46	WPL 4332515
